Installing and Configuring the Tape Drive for the
NonStop S-Series Server

M8505 Tabletop Tape Drive Installation and User’s Guide— 541949-002

3 -9

Installation

7. Connect the SC side of the fiber-optic cable to a fiber-optic PIC on the MSEB at

the rear of the server.

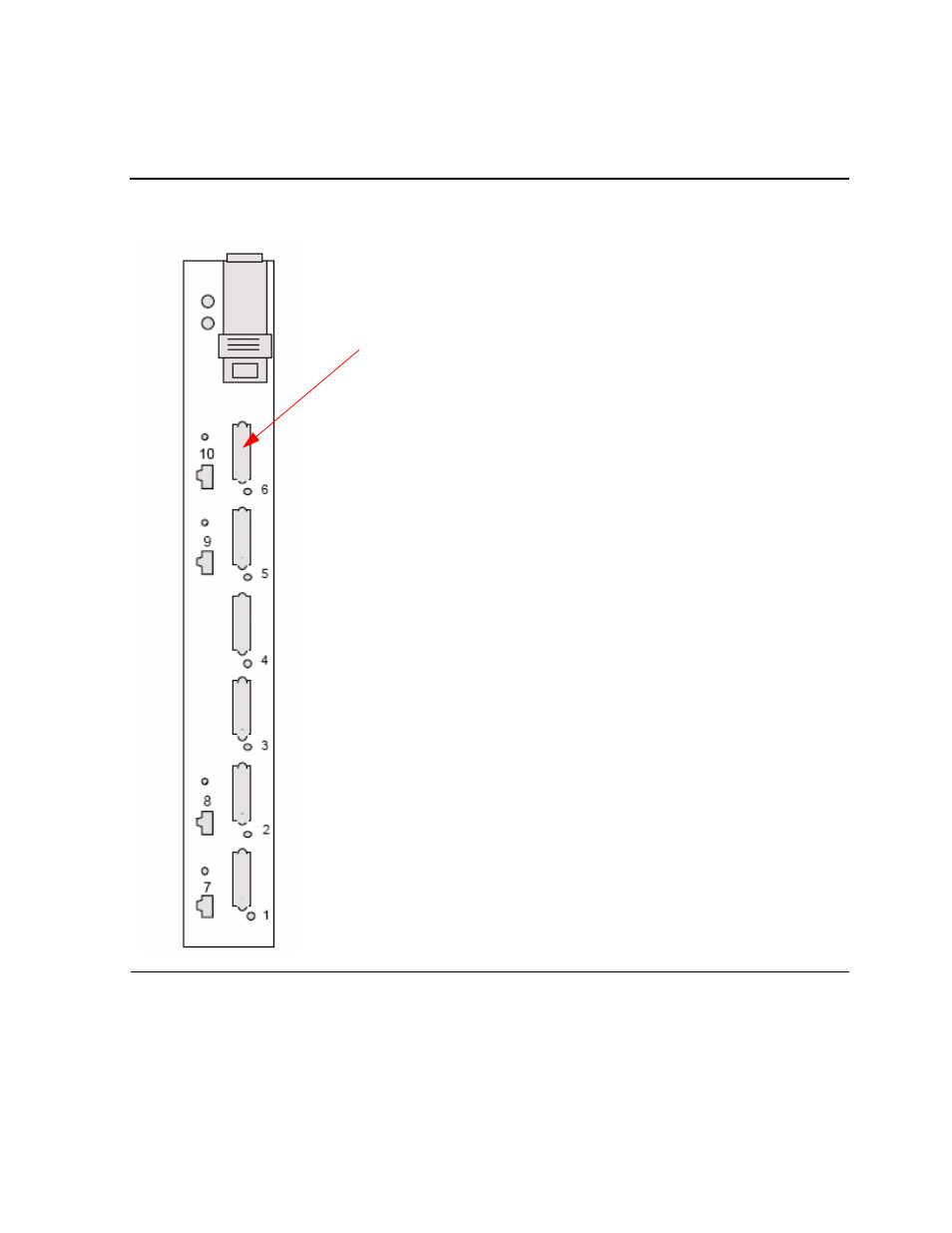

Figure 3-8. View of MSEB at Rear of Server

Fiber-optic PIC
