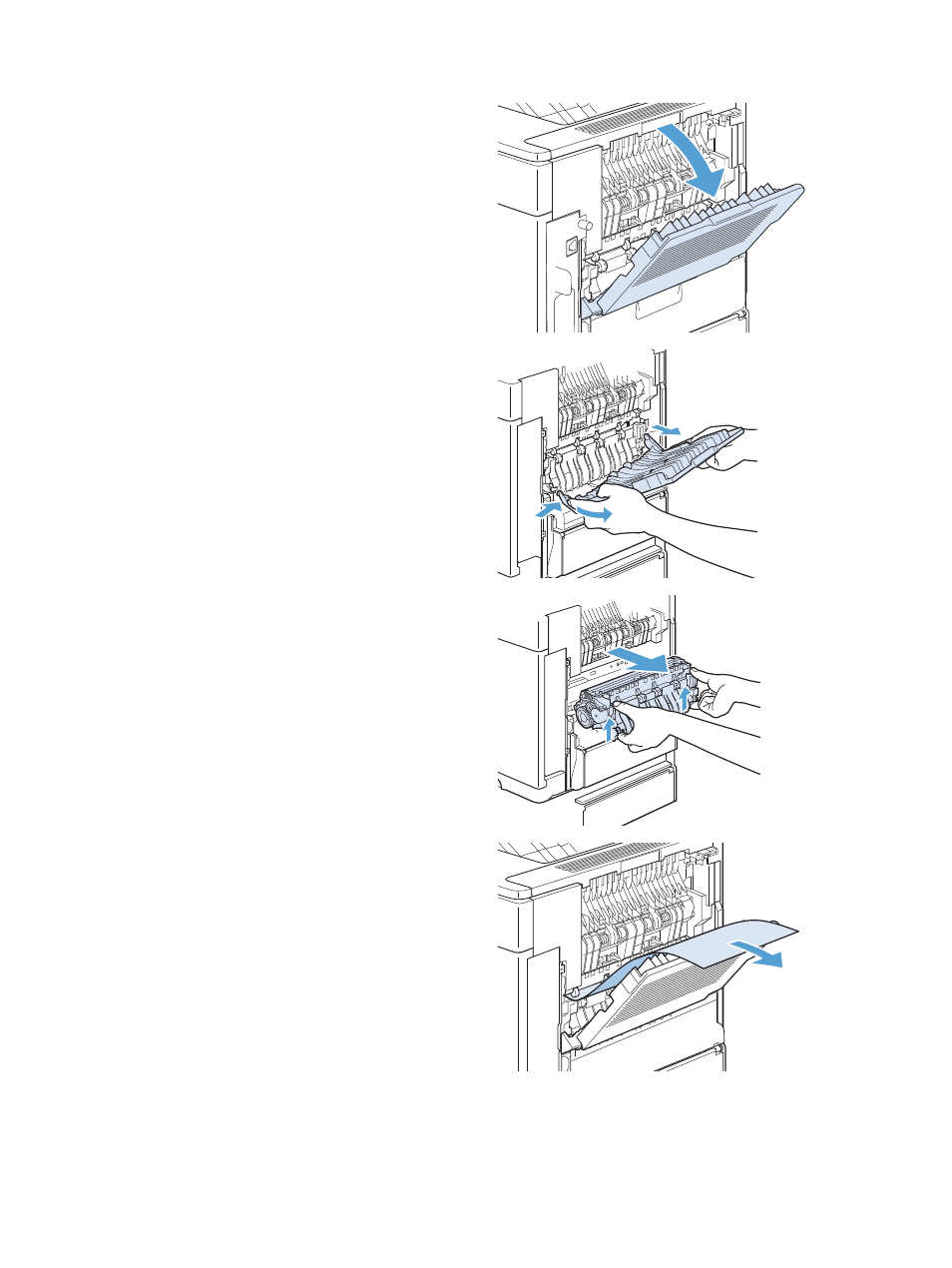

4. Open the rear output bin.
5. Remove the rear output bin. Place your finger
near the left-side hinge, and push firmly to the
right until the hinge-pin clears the hole inside
the product. Rotate the output bin outward to
remove it.
6. If paper is visible, remove it.
If paper is not visible, push up on the two blue
levers on the sides of the fuser, and pull the
fuser straight out.
7. Remove the jammed paper. If necessary, lift
the black plastic guide that is located on the
top of the fuser to gain access to the jammed
sheet.
CAUTION: Do not use a sharp or metal
object to clear paper from the fuser area. You
might damage the fuser.
182 Chapter 10 Solve problems ENWW
