HA-Fabric Manager user guide 163
A confirmation message is displayed ( Figure 101 ).

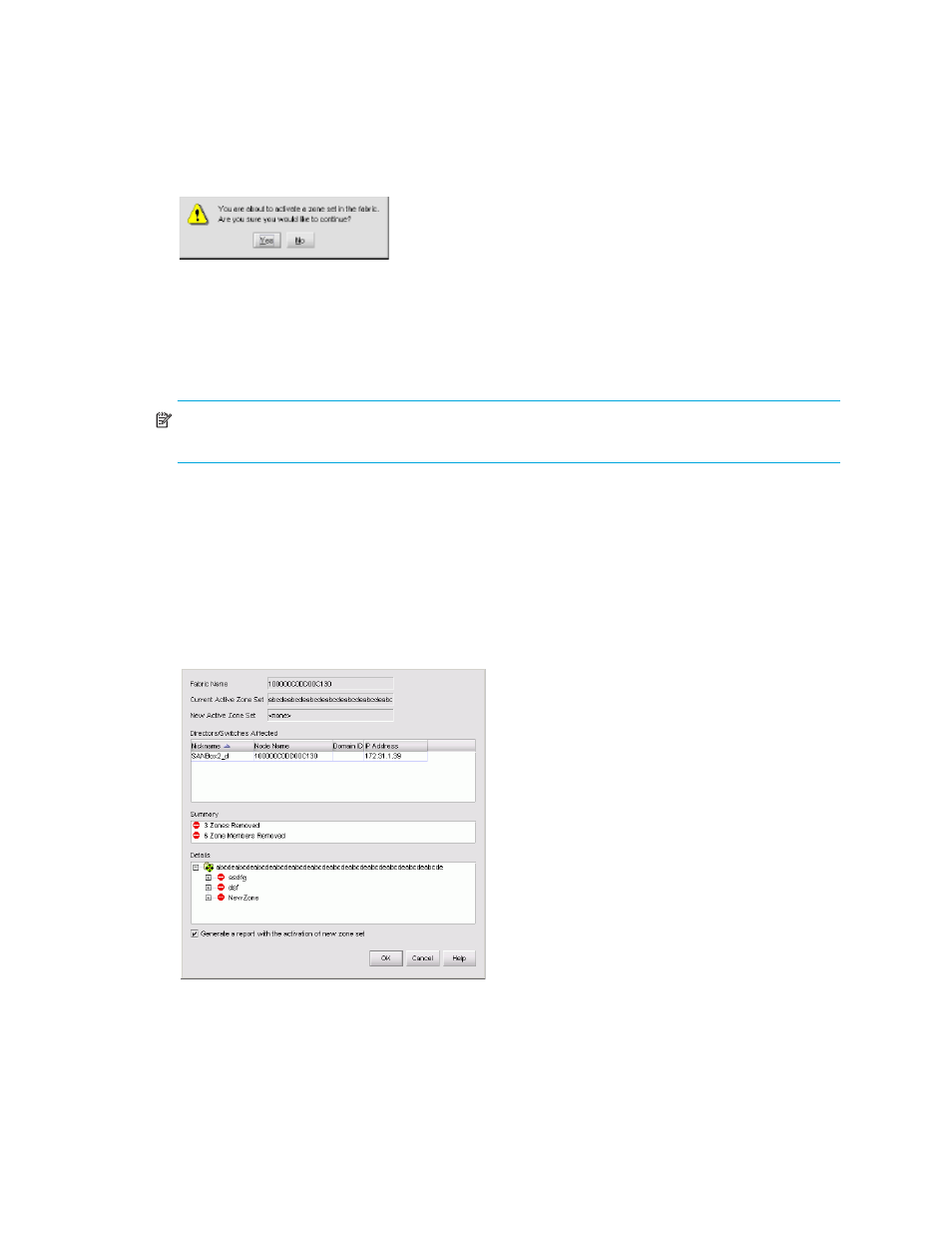

Figure 101 Activate Zone Set confirmation message
5. Click Yes to continue.
The Zoning dialog box is displayed.
6. Click the Active Zone Set tab to view the active zone set and its zones.
Verify that the switch is being managed properly.
NOTE: Only one appliance should perform discovery at a time; otherwise, logon conflicts can
occur.
7. Click OK.
Deactivating a zone set
To deactivate a zone set:
1. Display the zone library. See ” Displaying the zone library ” on page 159.
The Zoning dialog box is displayed ( Figure 98 on page 159).
2. Click Deactivate.
The Deactivate Zone Set dialog box is displayed (
Figure 102 ).
Figure 102 Deactivate Zone Set dialog box
