Displaying the zone library, Figure 98 zoning dialog box, 98 zoning dialog box – HP StorageWorks 2.32 Edge Switch User Manual
Page 159: Figure 98
HA-Fabric Manager user guide 159
•
Enable or disable the default zone (see ”
Enabling and disabling the default zone
page 164).
•
Export a zone set (see ”
•
Import a zone set (see ”
NOTE:
Only one appliance should perform discovery at a time, otherwise logon conflicts can
occur.
Displaying the zone library
To display the zone library:
1.
Select Configure > Zoning.

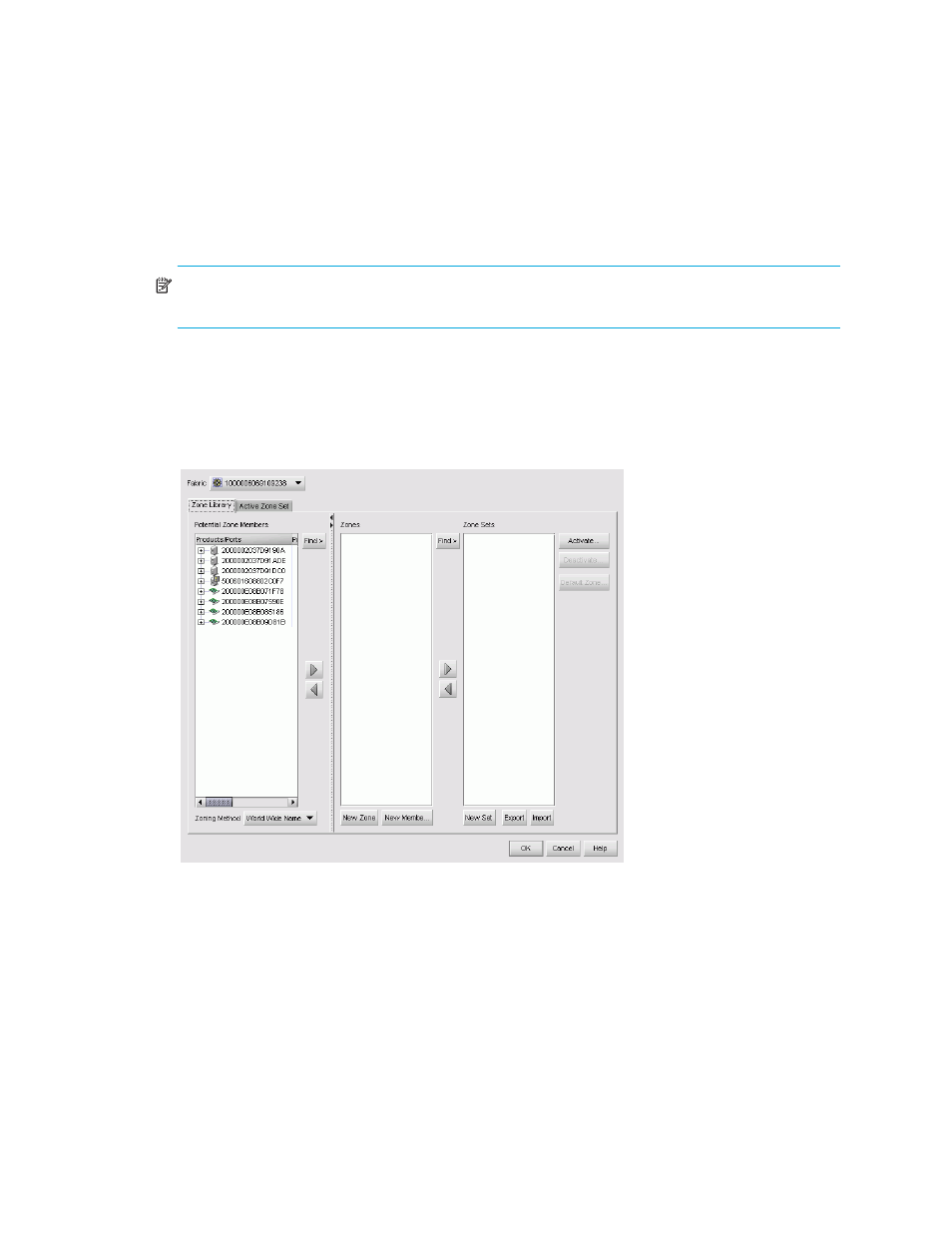

The Zoning dialog box is displayed (
Figure 98
Zoning dialog box
2.
Select a fabric from the Fabric list.
This defines the fabric for the zoning actions.
3.
Click the Zone Library tab.
The Zones, Zone Sets, and Potential Zone Members lists are displayed.
