HA-Fabric Manager user guide 143
Open Trunking log
The Open Trunking log ( Figure 88 ) provides details on flow rerouting through switch ports.

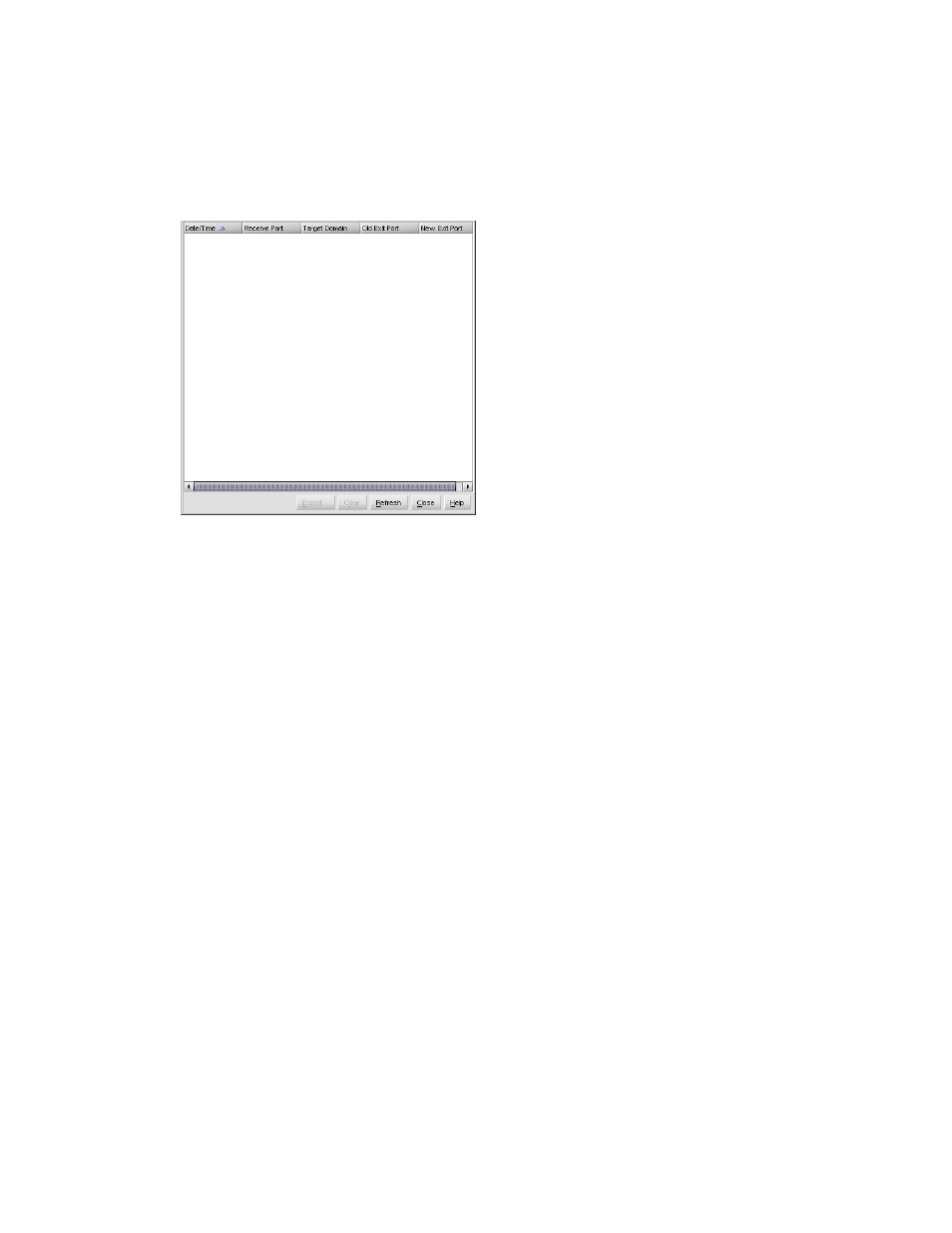

Figure 88 Open Trunking log
The log lists the following:
• Date/Time—The date and time of the rerouting occurrence
• Receive Port—The receive port number (decimal) on the local switch associated with the flow that
was rerouted
• Target Domain—The domain ID (decimal) associated with the flow that was rerouted
• Old Exit Port—The exit port number (decimal) on this switch that the flow used to access the
target domain
• New Exit Port—The exit port number (decimal) on this switch that the flow now uses to access the
target domain
Performance Module
Performance Module is a feature that you use to monitor SAN devices. For information about event
monitoring and notification, see the HAFM online help.
Displaying connection utilization
The HAFM application shows the percentage of data utilization of the trunks.
To display the connection utilization legend:
Select Monitor Utilization > On from the main window menu bar (or press Ctrl-U).
To turn utilization off:
Select Monitor > Utilization > Off from the main window menu bar.
See ” Viewing the HAFM main window ” on page 33 for details.
