HA-Fabric Manager user guide 33
3. Click Delete.
4. Click OK.
Viewing the HAFM main window
Figure 4 shows the View All display of the HAFM main window. You can customize your window
view to show only the information that you need (see ”Creating a customized view ” on page 93).
NOTE: Some panels can be hidden by default. To view all panels, select View > All Panels or press
F12.

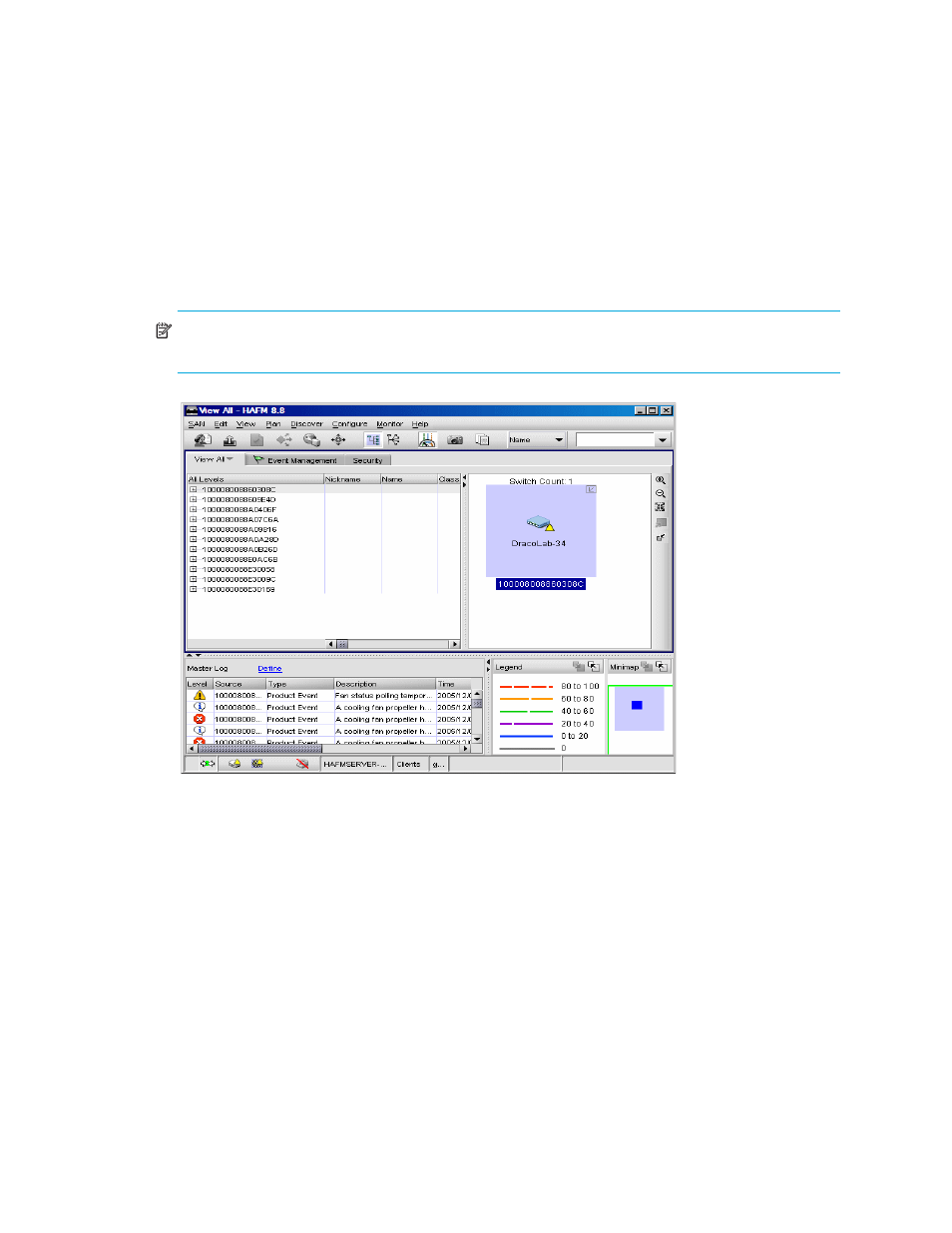

Figure 4 View All - HAFM window
HAFM main window panels
This section describes each panel of the HAFM main window.
1 Menu bar
2 Toolbar
3 View tab
4 Product List
5 Physical/Topology map
6 Toolbox
7 Master log
8 Connection utilization legend
9 Minimap
10 Status bar
