Configuring SAN products and fabrics 104
Displaying properties of routes
To display the properties of a route:
1. Display the route that you want to hide.
See ”
Displaying routes between ports ” on page 102.
2. Right-click the route and select Properties.
The Route Properties dialog box is displayed (
Figure 56 ).

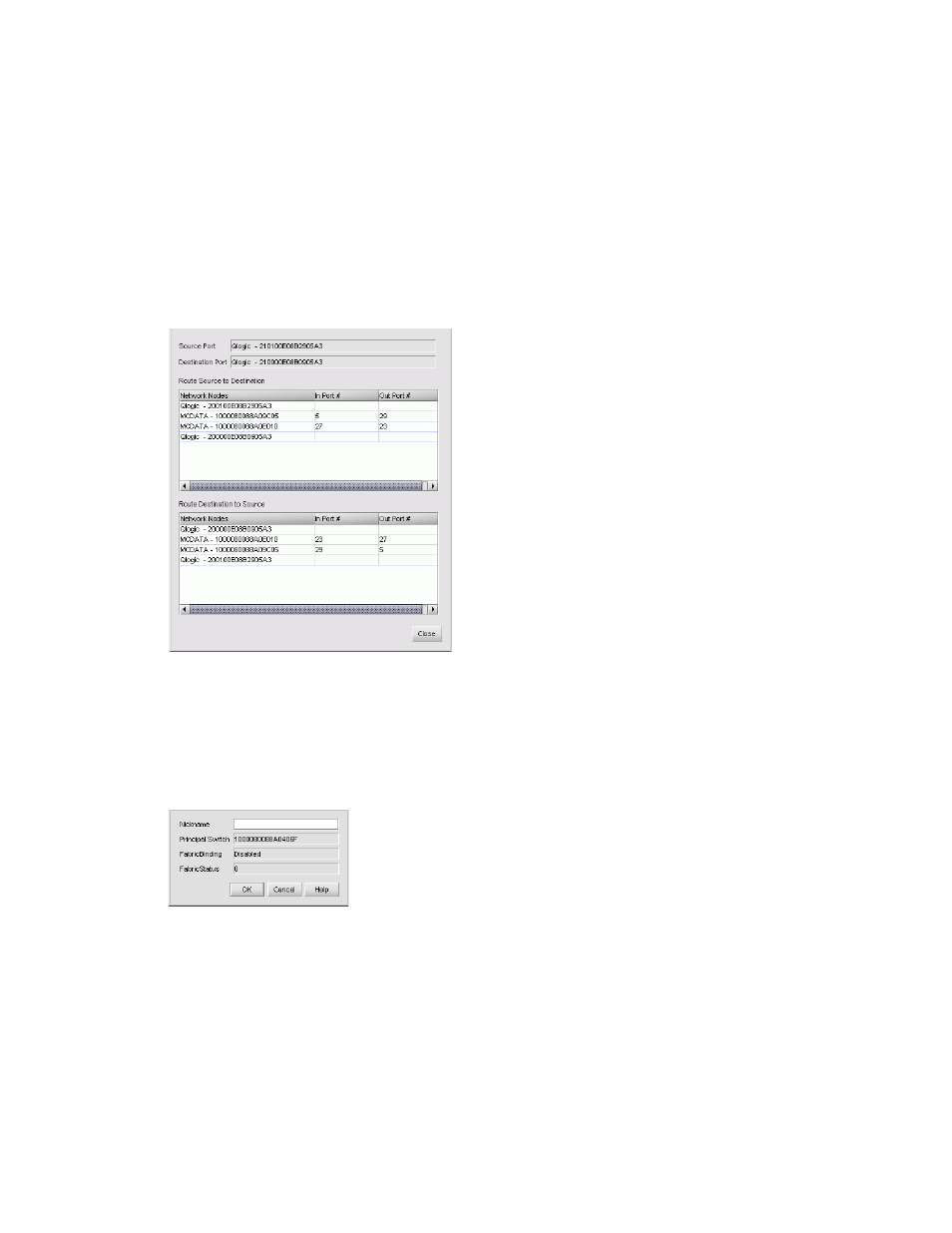

Figure 56 Route Properties dialog box
Displaying fabric properties
To display and change a fabric’s properties:
1. Right-click a fabric icon or the background of an expanded fabric and select Properties.
The Fabric Properties dialog box is displayed (
Figure 57 ).
Figure 57 Fabric Properties dialog box
The nickname is the only fabric property that can be changed. Assigning a nickname to a fabric is
optional. However you cannot revert to having no nickname after one has been assigned. You can
change the nickname if you choose, but you cannot leave the Nickname field blank after assigning
a nickname.
