Configuring SAN products and fabrics
102
Displaying routes between ports
You can view the path that Fibre Channel frames must take between two ports in a multiswitch
fabric. More than one route shows at a time within the same fabric. If you attempt to show a
different route within the same fabric, the previous route fades.
Before you display the route between two ports, ensure that:
•
The fabric consists solely of HP M-series products.
•
All switches or directors in the route are managed by the HAFM application and attached to the
same appliance.
•
All switches or directors in the route are attached to the same appliance.
•
All switches or directors in the route are Director 2/64, Director 2/140, Edge Switch 2/32,
Edge Switch 2/16, or Edge Switch 2/24 models and are running firmware 1.3 or higher.
•
All attached products in the route are in the same zone.
To show the route for two ports:
1.
In the Product List, click the plus (+) symbol next to the switch product icon you want to expand.
2.
Right-click a node and select Show Route.

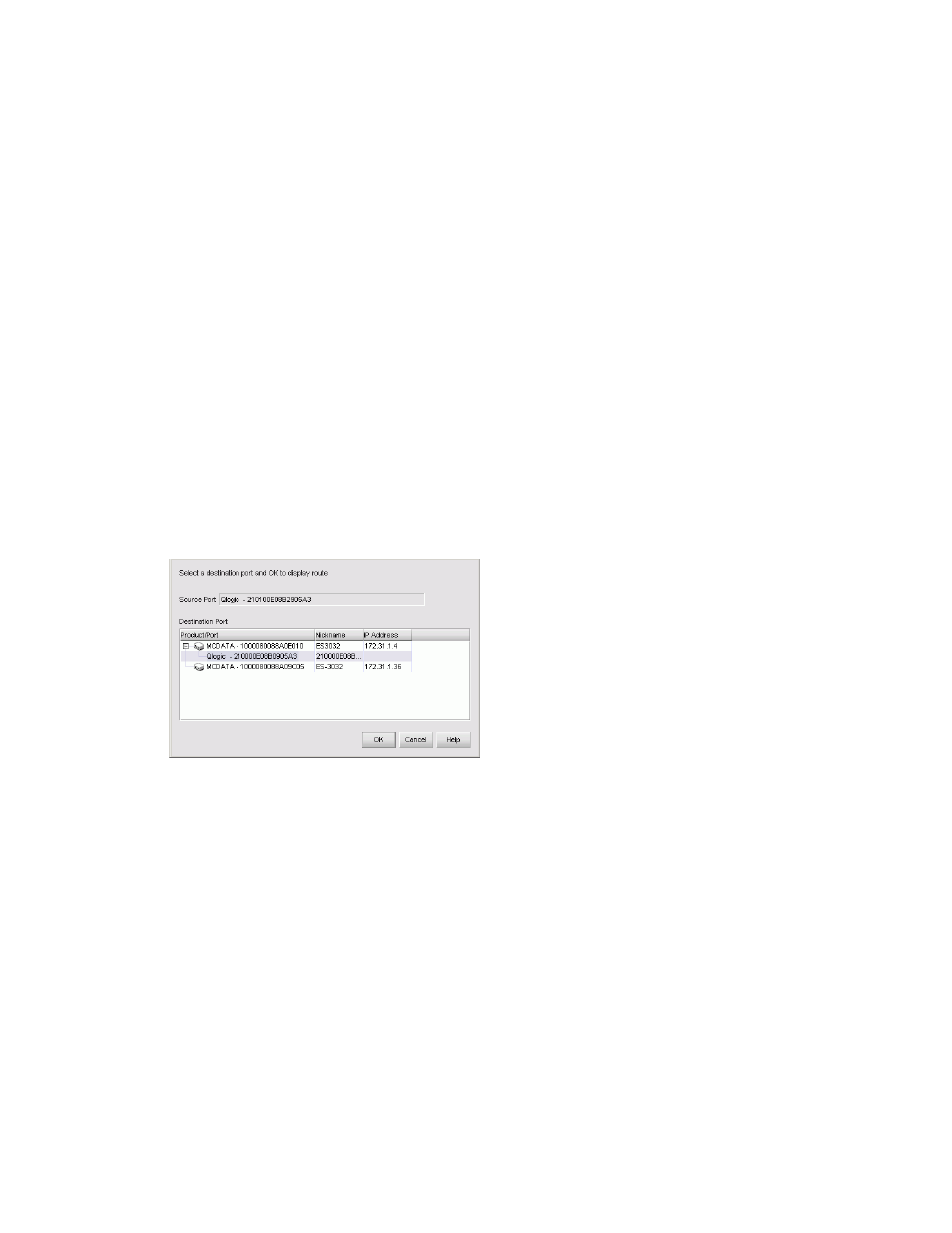

The Show Route dialog box is displayed (
).
Figure 54
Show Route dialog box
3.
Select a destination port from the Destination Port list.
4.
Click OK.
