Diagnosing array problems
In this section

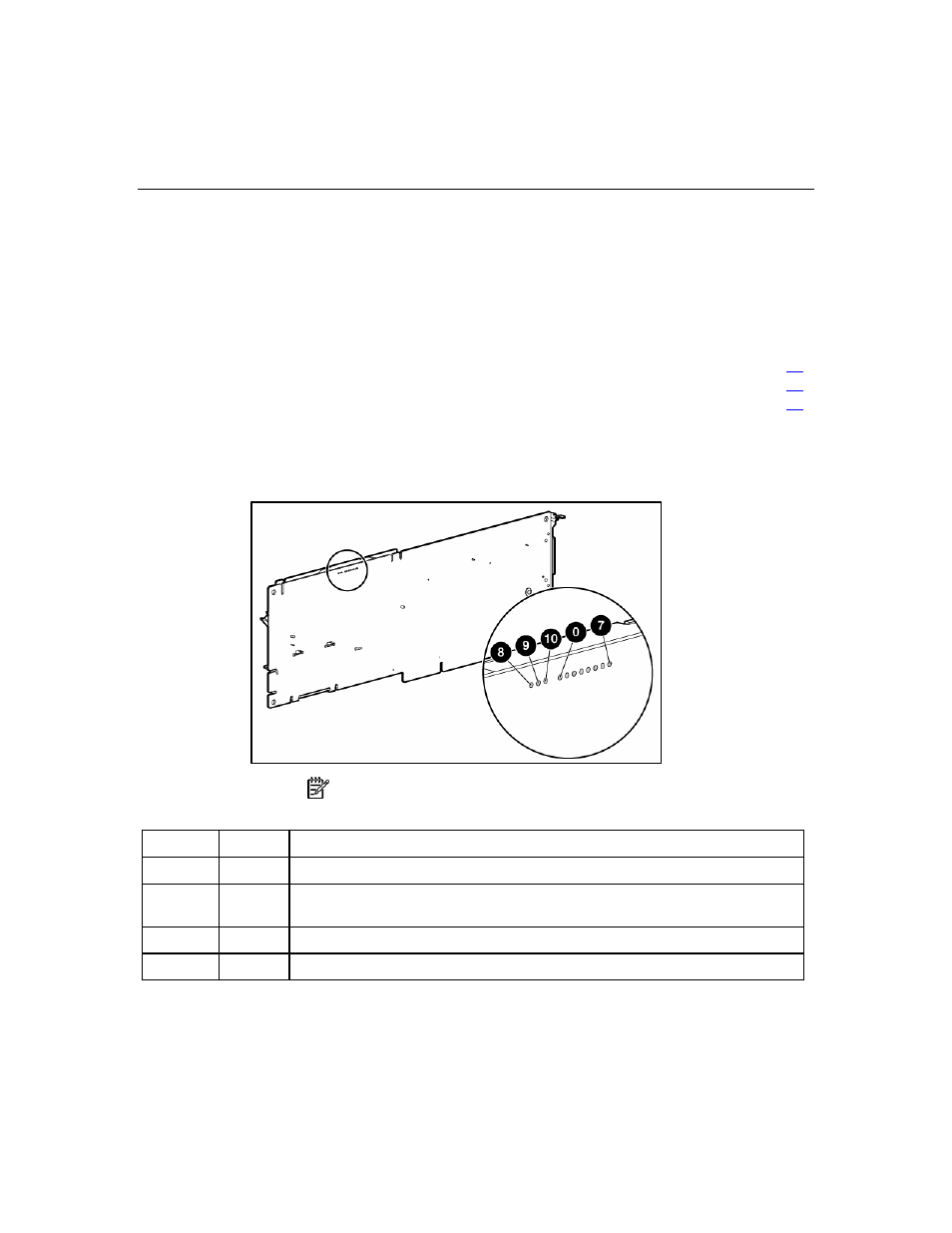

Controller board runtime LEDs
NOTE: During server power-up, each runtime LED illuminates
randomly until POST has finished.
LED ID
Color
LED name and interpretation
0
Amber
CR510: Controller Failure LED. The controller firmware has detected an error.
1
Amber
CR511: Drive Failure LED. A physical drive connected to the controller has
failed. Check the Fault LED on each drive to determine which drive has failed.
2
Blue
CR512: Activity LED for SAS port 2I.
3
Blue
CR513: Activity LED for SAS port 1E and 1I.
