Figure 5.2-6 stylus pointing calibration, Figure 5.2-7 calibration screen – Advantech TPC-1260 User Manual
Page 50
4 2
TPC-1260 User's Manual

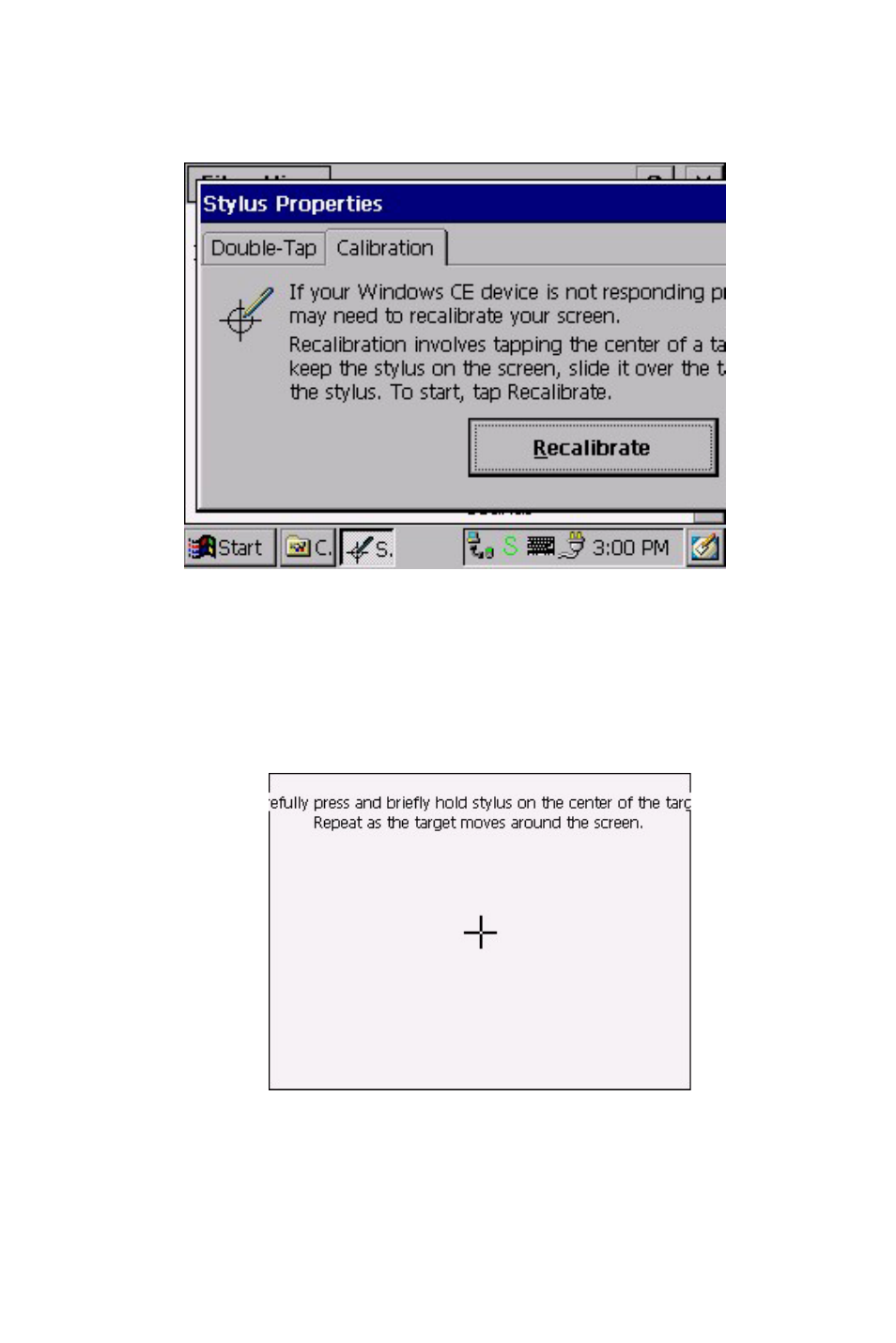

Figure 5.2-6 Stylus pointing calibration
Step 8:
Click the “Recalibrate” button. A cross will appear on the
screen by the order of center point, upper-left, lower-left,
lower right and upper-right corners. Use the stylus to press
the center of the cross until the cross moves to next
location.
Figure 5.2-7 Calibration screen
Step 9: When calibration is done the utility will save the settings.
