Step 2b: Alternatively install a CompactFlash containing Windows
CE or other operating system. Advantech provides optional Compact-
Flash memory cards with Windows CE OS.

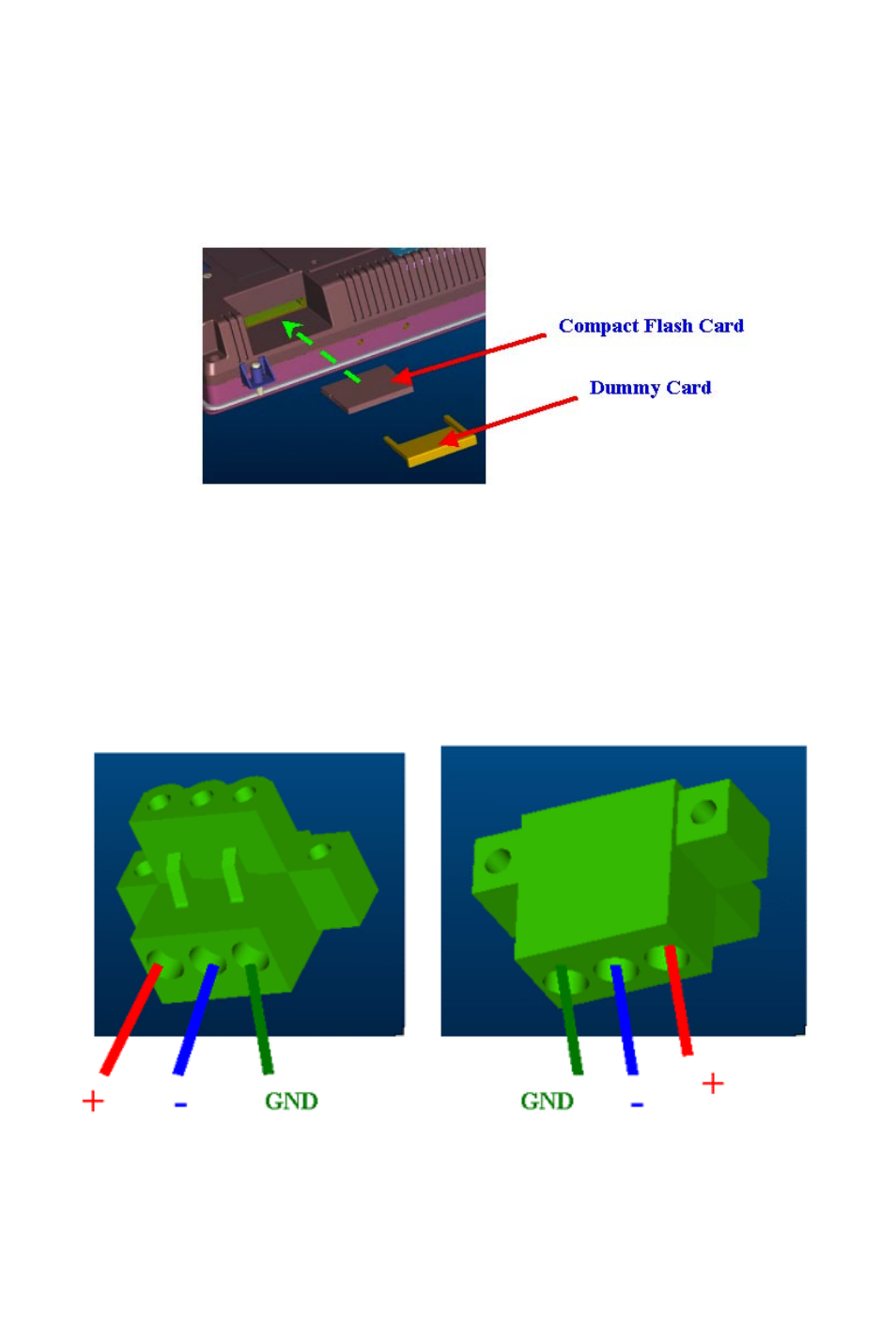

Figure 2-3 Install CompactFlash memory card
Warning:
Though the CompactFlash memory card is supposed
to be hot swappable, it is suggested to turn off
system power as plug in or pull out the card. Thus
the potential data loss can be avoided.
Step 3:
Connect the power connector to the 24VDC power lines.
The power lines can either be of some power adapter or in-house
power source.
Figure 2-4 Power connector and power lines
