Figure 2-5 power connector pin assignment – Advantech TPC-1260 User Manual
Page 25
Chapter 2 Quick Start Guide
1 5

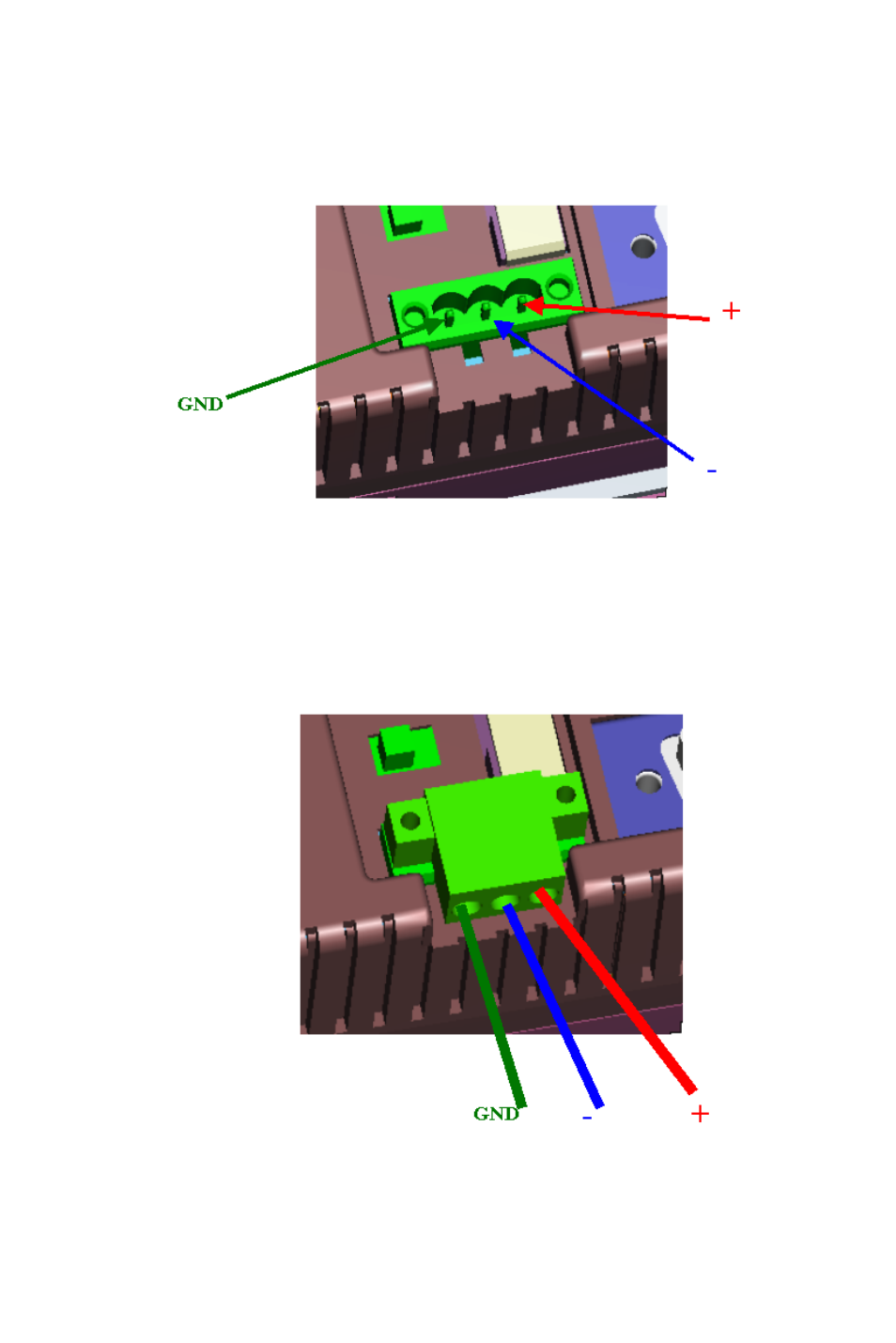

Figure 2-5 Power connector pin assignment
Warning:
If the power lines are not connected to correct pins,
the system may be damaged as the power is turned
on.
Step 4:
Plug the power lines to the system power receptor.
Figure 2-6 Plug the power lines to the system power receptor.
