American Standard Acrylux 6000Y1.BE5 - Manual (Page 4)

H136
© 2008 AS America Inc.
ACRYLUX ™
60" x 32" BATH KIT

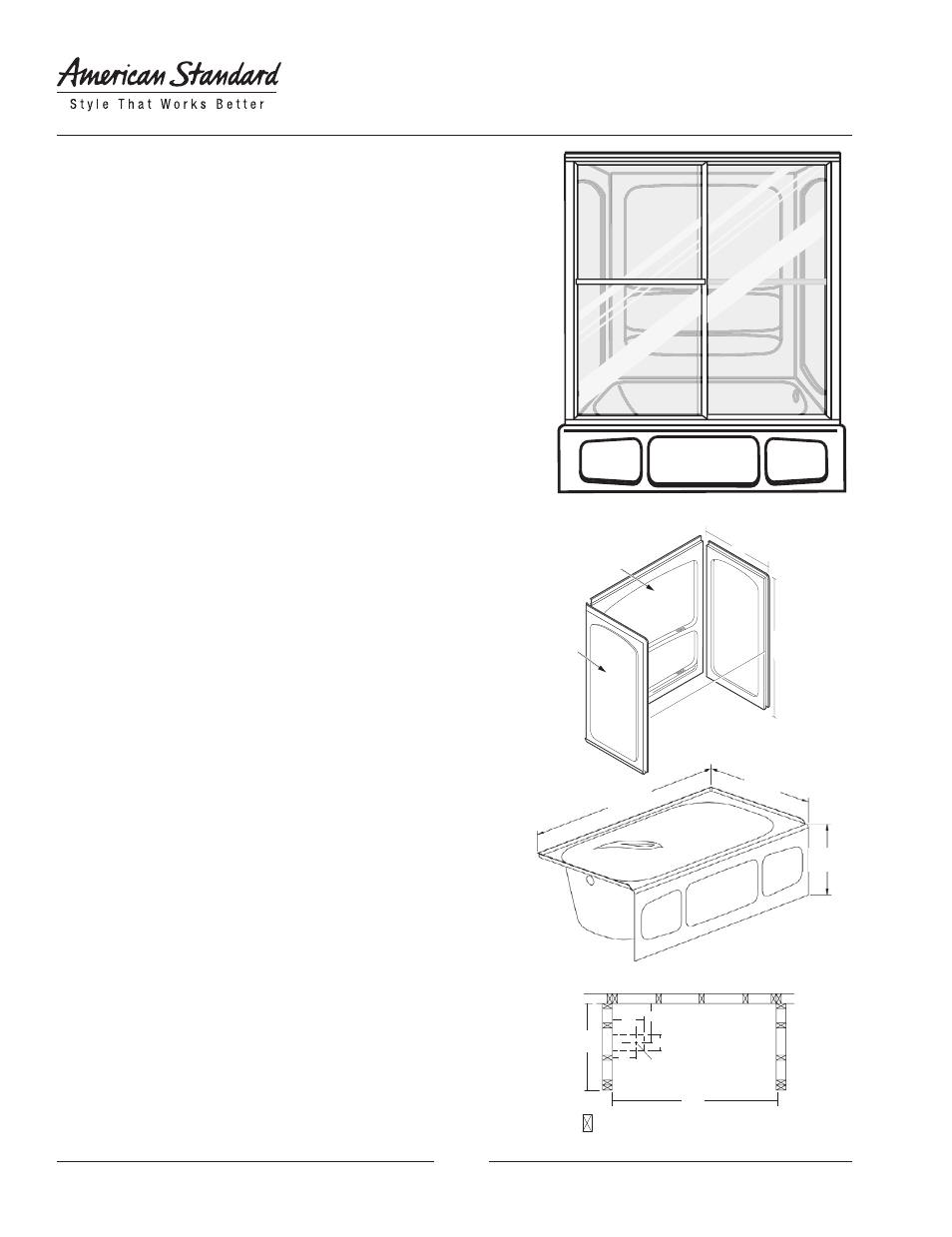

ACRYLUX 60" x 32" BATH KIT
Bath Kit With Walls:
❑ 6032Y1K.102 Bath Kit With Walls, Right Drain
❑ 6032Y1K.202 Bath Kit With Walls, Left Drain
Includes the following components:
Bath Features:
• 6032Y1 Bathtub
• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Integral apron with tiling flange
Nominal Dimensions:
59-7/8" x 32" x 18"
(1521 x 813 x 457mm)
Door Features:
• 6000Y1.BE5.213 By-Pass Bath Door
• Tempered safety glass
• Silver Shine frame finish
• Rain privacy glass
Nominal Dimensions:
57-1/2" to 59-1/2" x 58-3/16"
(1461 to 1511 x 1483mm)
Wall Set Features:
• 6032Y1.BW Bath Wall Set
• High-gloss acrylic-capped ABS with
fiberglass reinforcement
• Mounts directly to studs
• Caulk-less installation
Nominal Dimensions:
60" x 32" x 60" tall
(1524 x 813 x 1542mm)
Bath Kit Without Walls:
❑ 6032Y1KB.102 Bath Kit Without Walls, Right Drain
❑ 6032Y1KB.202 Bath Kit Without Walls, Left Drain
• Same as above but without wall set
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ANSI Z97 for Safety Glazing Materials
• ANSI Z124.1.2 for Plastic Bathtubs and Shower Units
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density STUD LAYOUT
33-1/2"
(851mm)
60"
(800mm)
(254mm)
10"
6" (154mm)
15" (381mm)
8"
(203mm)
Drain C
Floor Cut Out
6" x 10" (154 x 254mm)
= Stud Location
L
59-7/8"
(1521mm)
18"
(457mm)
32"
(813mm)
58" Door Opening
(1473mm)
Side
Panel
Back Panel
32"
(813mm)
60"
(800mm)
Revised 10/08
