ASUS M2N-MX SE PLUS 1-29

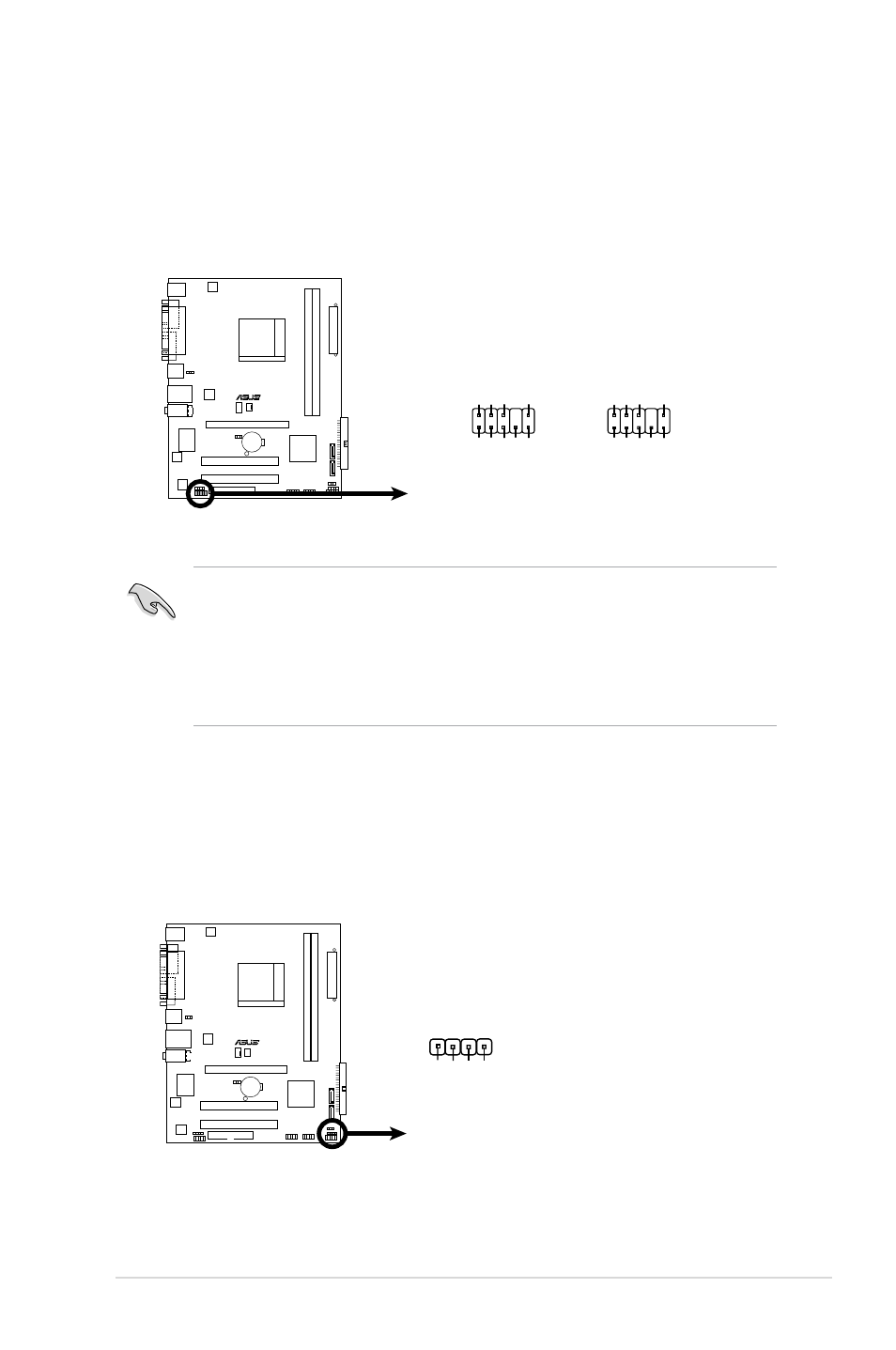

8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either High Definition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
• We recommend that you connect a high-definition front panel audio module
to this connector to avail of the motherboard high-definition audio capability.
• By default, this connector is set to HD Audio. If you want to connect a High
Definition front panel audio module to this connector, set the Front Panel
Select item in the BIOS to [HD Audio]. See section “2.4.3 Chipset” for
details.
R
M2N-MX SE PLUS Front Panel Audio Connector
HP_HD
MIC2_L
HP_R HP
_L
MIC2_J
D
Jack_Sens
e
MIC2_R
PRESENSE# AGND
AAFP
Legacy AC’97-compliant
pin definition
NC
MIC2_L
Line out_R Line out_L
NC
NC
MIC2_R
NC AGND
Azalia-compliant
pin definition
M2N-MX SE PLUS
9. Speaker connector (4-pin SPEAKER)
This connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
R
M2N-MX SE PLUS Speaker Out Connector
SPEAKER
+5
V
GN
D
GN
D
Speaker Ou
t
1
M2N-MX SE PLUS
