1-24 Chapter 1: Product introduction
7. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
8. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
9. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor
or other VGA-compatible devices.
10. COM port. This port is for pointing devices or other serial devices.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
Audio 2, 4, or 6-channel configuration
1.10.2 Internal connectors

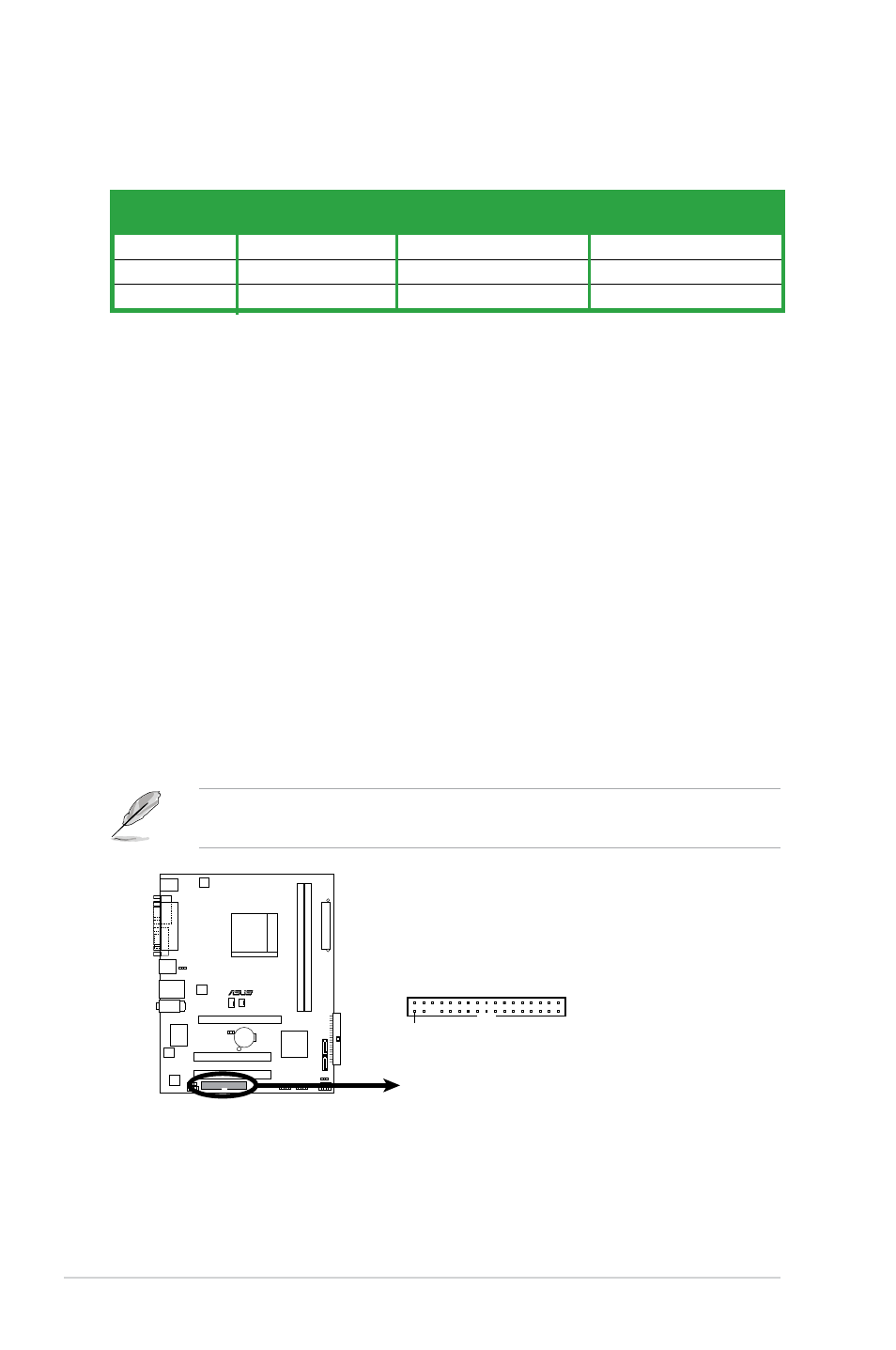

1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided floppy disk drive (FDD) signal cable. Insert
one end of the cable to this connector, then connect the other end to the
signal connector at the back of the floppy disk drive.
R
M2N-MX SE PLUS Floppy Disk Drive Connector
PI
N
1
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
FLOPPY
M2N-MX SE PLUS
Pin 5 on the connector is removed to prevent incorrect cable connection when
using an FDD cable with a covered Pin 5.
Light Blue Line In Surround Out Surround Out
Lime green Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Bass
Port Headset 4-speaker 6-speaker
2-speaker
