1-26 Chapter 1: Product introduction
3. Serial ATA connectors (7-pin SATA1, SATA2)
These connectors are for the Serial ATA signal cables for Serial ATA 3.0
Gb/s hard disk and optical disk drives. The Serial ATA 3 Gb/s is backward
compatible with Serial ATA 1.5Gb/s specification.
The current Serial ATA I interface allows up to 150 MB/s data transfer rate
while Serial ATA II allows up to 300 MB/s data transfer rate, faster than the
standard parallel ATA with 133 MB/s (Ultra DMA133).
If you install Serial ATA hard disk drives, you can create a RAID 0, RAID 1, and
JBOD configuration through the onboard NVIDIA ® MediaShield™ controller.
Install the Windows ® 2000 Service Pack 4 or the Windows ® XP Service Pack1
before using Serial ATA.
• For detailed instructions on how to configure RAID 0, 1, and JBOD, refer to
the RAID manual in the support CD.
• The RAID function of these connectors is set to [Disabled] by default. If
you intend to create a Serial ATA RAID set using these connectors, enable
the nVidia RAID Function item in the IDE Configuration sub-menu in the
BIOS. See section “2.3.4 IDE Configuration” for details.
M2N-MX SE PLUS
R

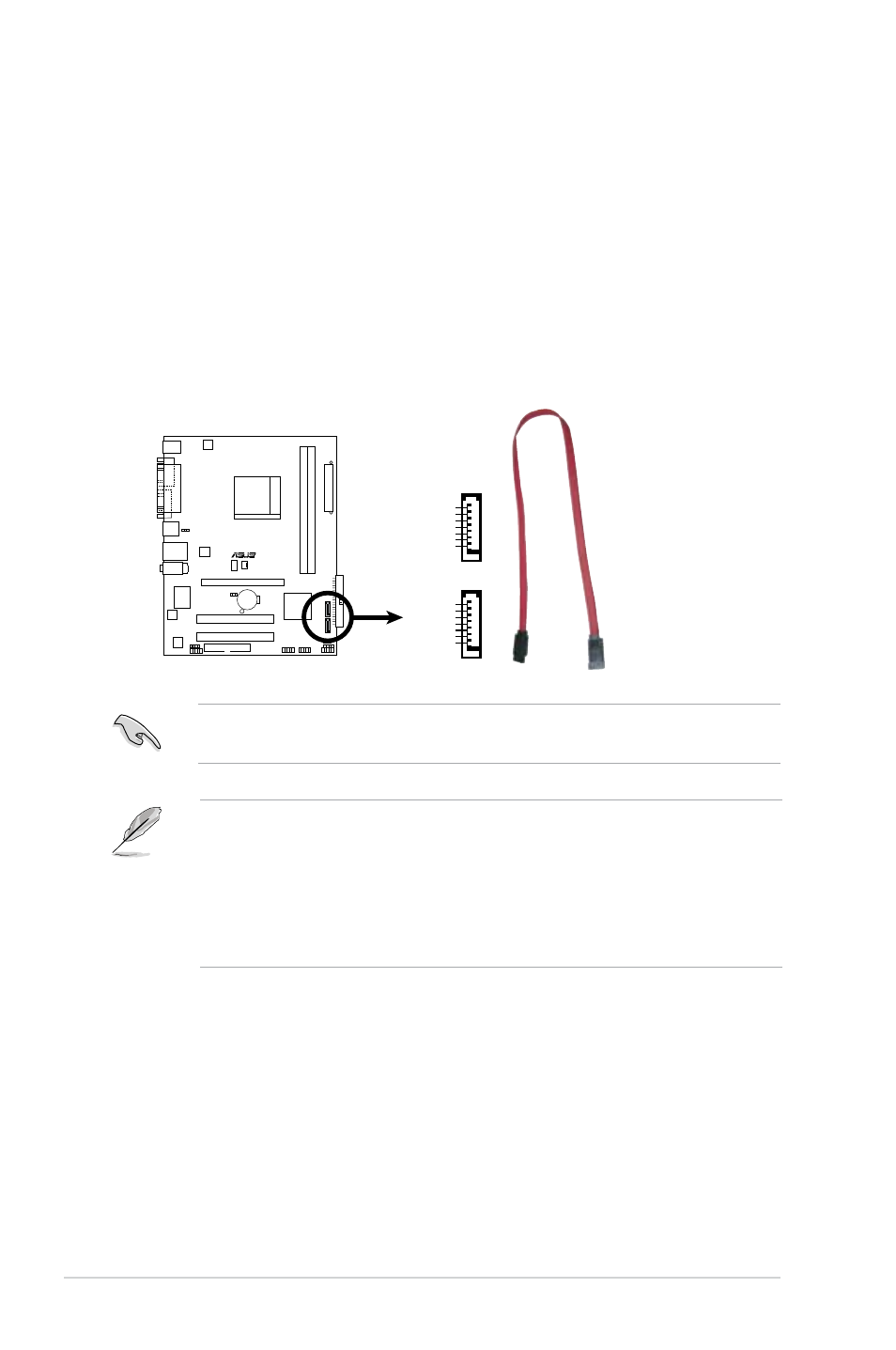

M2N-MX SE PLUS SATA Connectors
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA2
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
SATA1
