Atmel AVR2016: RZRAVEN Hardware User’s Guide [APPLICATION NOTE]
8117E −AVR−07/12
3
1. General
The Atmel RZRAVEN kit is built from one Atmel RZUSBSTICK module and two AVRRAVEN modules. See Figure 1-1
to Figure 1-4 for further details.
The complete schematics and Gerber files are available from the compressed archive accompanying this application
note.

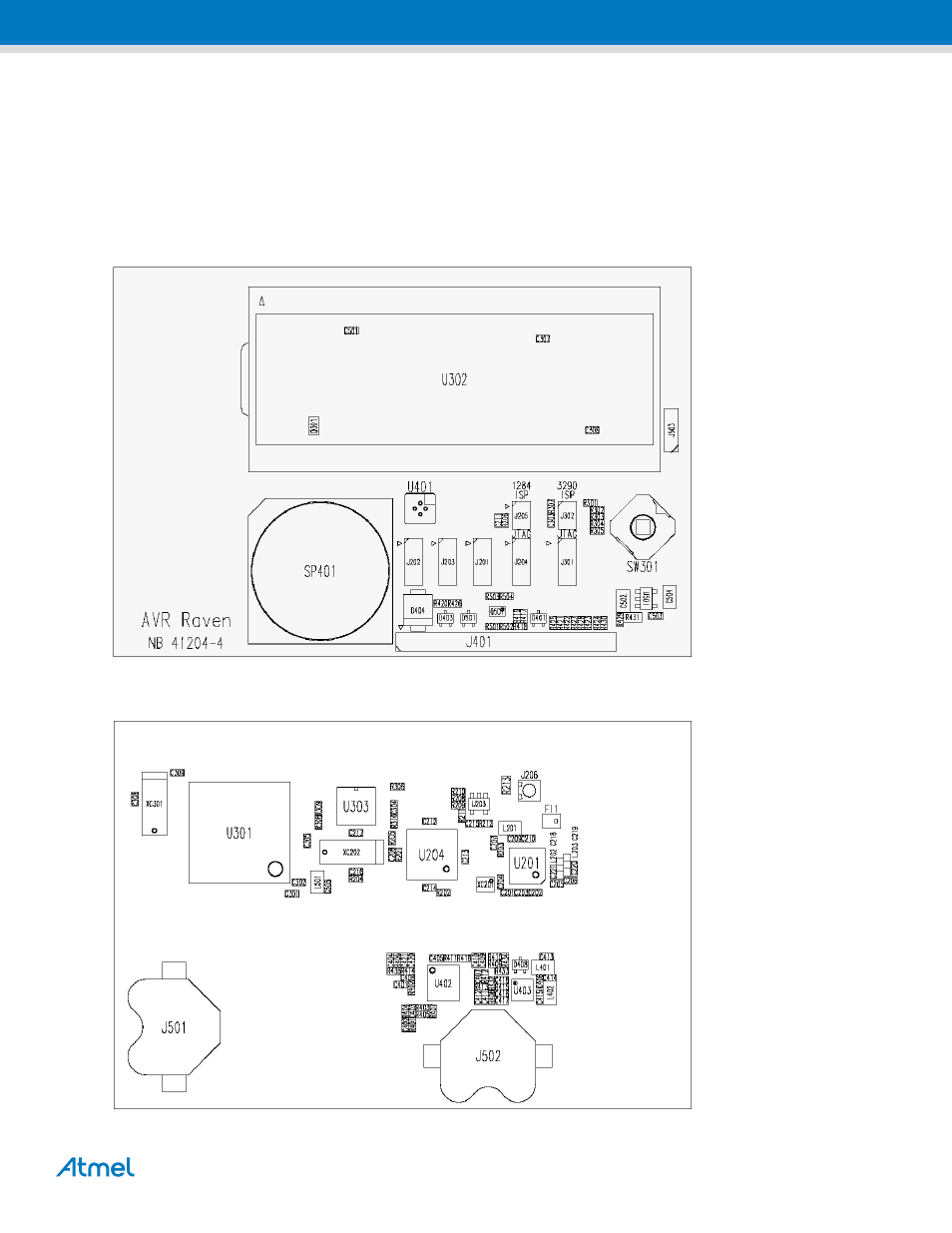

Figure 1-1. Assembly drawing AVRRAVEN – front view.
Figure 1-2. Assembly drawing AVRRAVEN – back view.
