VCR SETUP
Antenna Connection
RGB IN (PC)
LAN
WIRELESS
CONTROL
RGB/DVI
/DVI IN
2
3
1
VIDEO AUDIO L(MONO) R
VIDEO AUDIO
COMPONENT IN
AV
IN
1
AUDIO IN AUDIO OUT
2
1
ANTENNA/
CABLE IN
S-VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
L R S-VIDEO VIDEO
AUDIO
OUTPUT
SWITCH
ANT IN
ANT OUT
RGB IN (PC)
LAN
WIRELESS
CONTROL
(RGB/DVI)
/DVI IN
2
3
1
VIDEO AUDIO
COMPONENT IN
AUDIO IN AUDIO OUT
2
1
VIDEO AUDIO L(MONO) R
AV
IN
1
Y P B P R L R
OPTICAL DIGITAL
RS-232C IN
(CONTROL&SERVICE)
ꔡ
Y P B P R L R
OPTICAL DIGITAL
RS-232C IN
(CONTROL&SERVICE)
ꔡ
L R VIDEO
AUDIO
Wall Jack
Antenna

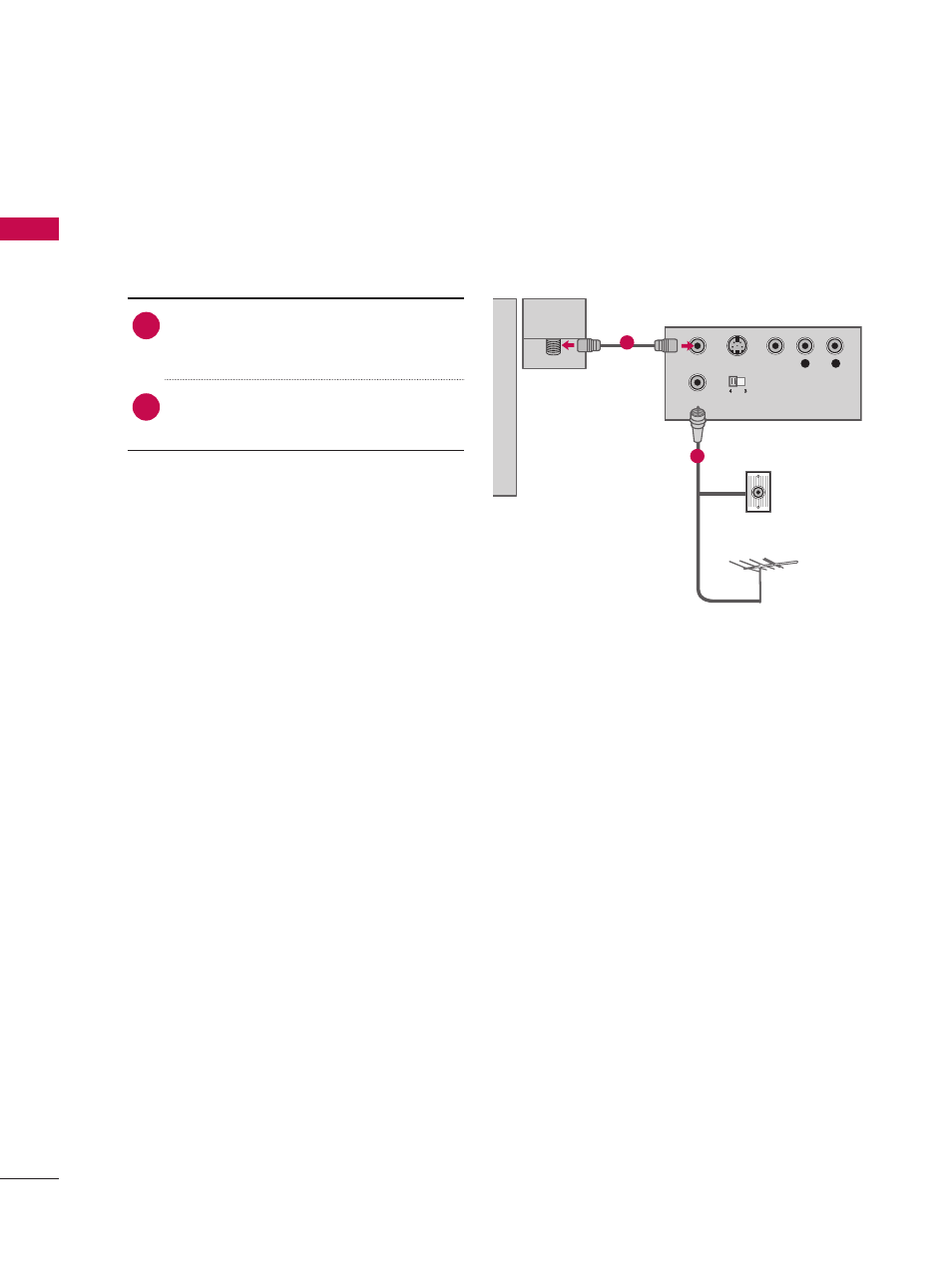

1. How to connect
1
Connect the RF antenna out socket
of the VCR to the
ANTENNA/CABLE
IN socket on the TV.
2 Connect the antenna cable to the RF
antenna in socket of the VCR.
2. How to use
ꔛ Set VCR output switch to 3 or 4 and
then tune TV to the same channel num-
ber.
ꔛ Insert a video tape into the VCR and
press PLAY on the VCR (Refer to the
VCR owner’s manual).
