M 9 6 8 6 17 Rev. 1. 2

2

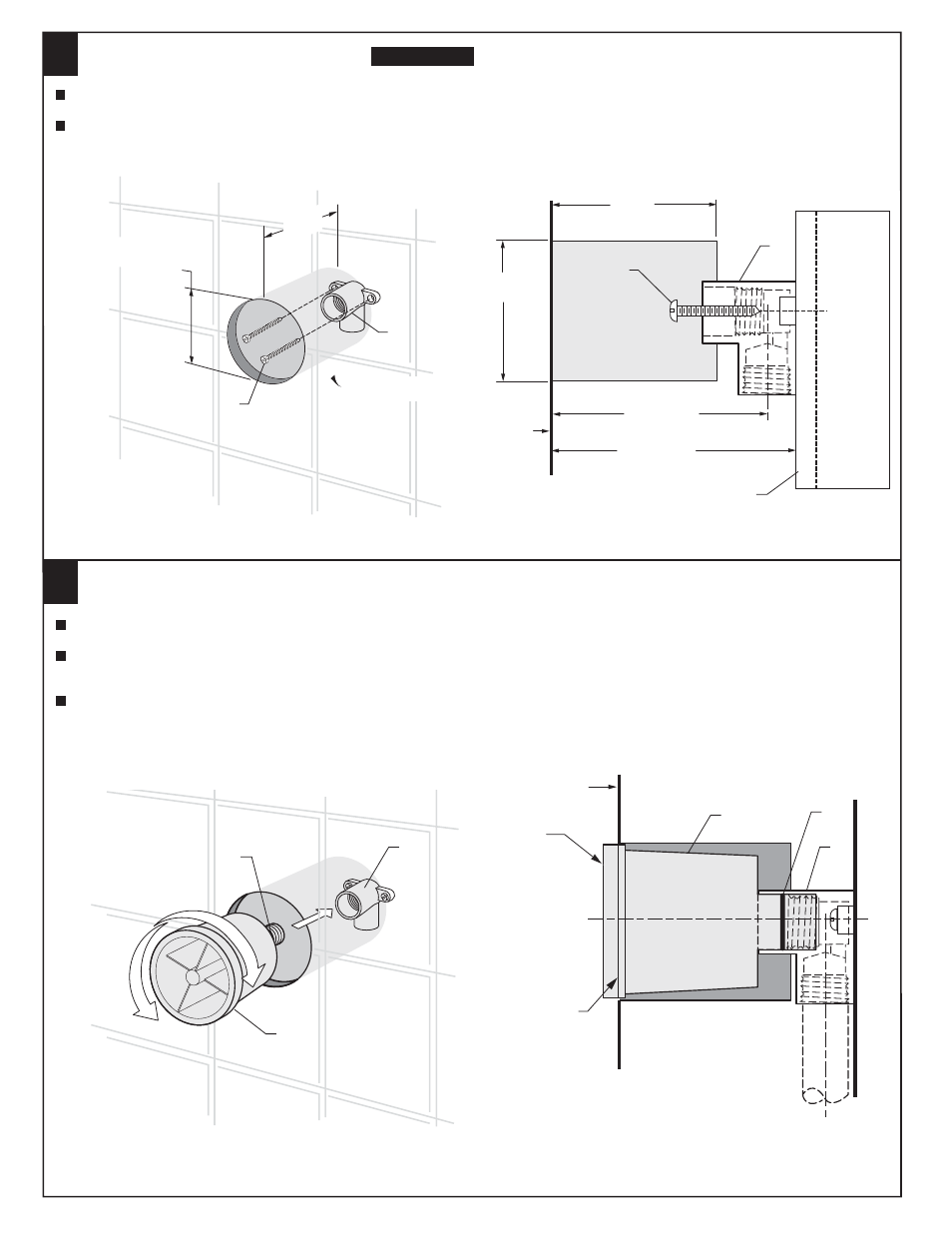

INSTALL PLASTER GUARD

3

FINISHED WALL

REMOVE

MINIMUM

(LINE MARK)

MAX.

(LINE MARK)

2

1

INSTALL

Make sure the O-RING (3) is installed on the PLASTER GUARD (1).

Install the PLASTER GUARD (1) into ELBOW (2). Note: The finished wall must be between the Min. & Max.
lines on the PLASTER GUARD (1).

Complete all tiling and wall work. When walls are finished remove PLASTER GUARD (1).

1

CAUTION

Turn off hot and cold water

supplies before beginning.

1

INSTALL SUPPLY PIPING

Provide a “Installation Hole” 2-1/8" - 2-3/8" DIA., (54-60mm) and 3-1/4", (83mm) deep. Note: The “Installation Hole”
must be clear to allow body spray clearance.
Install the ELBOW (1) on a support within the wall at the *dimension shown. Secure with
two M5 SCREWS (2) (not provided).

FINISHED WALL

WALL SUPPORT

54-60mm

(2-1/8" - 2-3/8" DIA.)

1

2

83mm

(3-1/4")

54-60mm

(2-1/8" - 2-3/8" DIA.)

*63.6-70.6mm

(2-1/2" - 2-3/4")

82.6mm

(3-1/4")

*75.6-82.6mm

(2-15/16" - 3-1/4")

2

1

2

3

“Installation Hole”

“Installation Hole”

{
