Acesonic SURROUND-SOUND UPCONVERSION DVD KARAOKE RECEIVER WITH HDMI SWITCHING - Manual (Page 5)

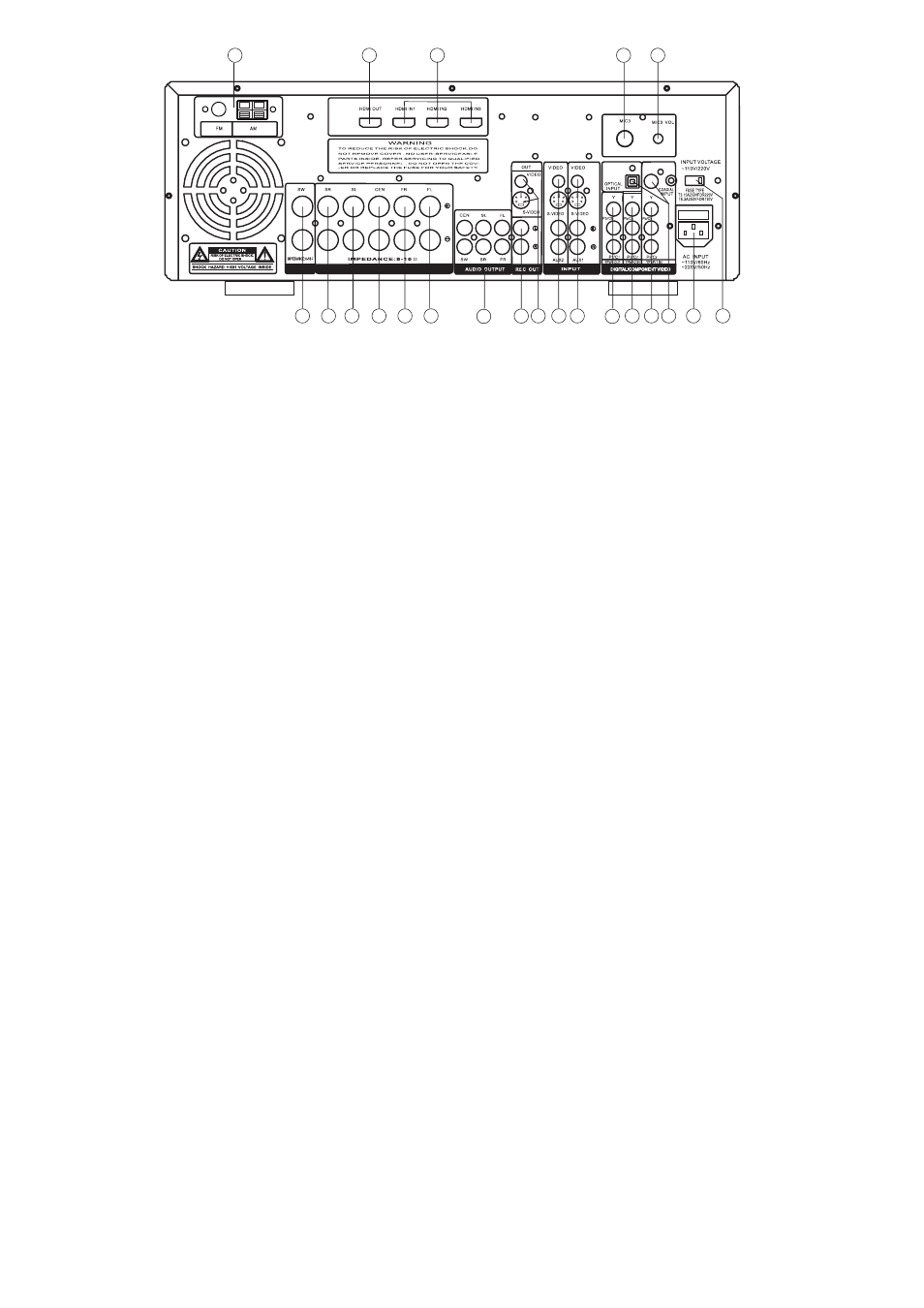

REAR PANEL
1. FM/AM ANTENNA IN
2. HDMI OUTPUT
17. Component VIDEO(YPbPr) OUTPUT
18. INPUT Component VIDEO 2(YPbPr) & OPTICAL AUDIO
19. Component VIDEO 1(YPbPr) & COAXIAL AUDIO INPUT
3. HDMI INPUTS
4. MIC3 INPUT
5. MIC3 VOL
Use FM/AM antenna to connect to these jacks.
Use HDMI cable to Connect to external video device like monitor with HDMI input.
Using component(YPbPr) video cable to connect to external video device like projector.
.
Using Optical audio cable to connect from external device with Optical audio output.
Using component(YPbPr) cable to connect from external device with YPbPr output like DVD player
Using component(YPbPr) cable to connect from external device with YPbPr output like DVD player.
Using Coaxial audio cable to connect from external device with Coaxial audio output.
Use HDMI cable to Connect to HDMI output from external A/V devices like HDMI DVD player.
Connect to a microphone by using 1/4" microphone cable .
This knob is used to adjust the volume of MIC 3 input.
9. CENTER SPEAKER TERMINAL
to center speaker.
The impedance equal or more than 8-16 OHM.
Using speaker cable with exposed wires or banana plugs to connect
7. SURROUND SPEAKER (RIGHT) TERMINAL
8. SURROUND SPEAKER (LEFT) TERMINAL
to surround
speaker(right), the impedance equal or more than 8-16 OHM.
Using speaker cable with exposed wires or banana plugs to connect
to surround
speaker(left), the impedance equal or more than 8-16 OHM.
Using speaker cable with exposed wires or banana plugs to connect
6. WOOFER SPEAKER TERMINAL
20. OPTICAL and COAXIAL INPUT
Using speaker cable with exposed wires or banana plugs to connect to woofer speaker,
the impedance equal or more than 6-16 OHM.
Optical/Coaxial audio input can be used individually, or co-operate with YPbPr 1 or 2 video input.
10. MAIN SPEAKER (RIGHT) TERMINAL
11. MAIN SPEAKER (LEFT) TERMINAL
t to front speaker(right),
the impedance equal or more than 8-16 OHM.
Using speaker cable with exposed wires or banana plugs to connect
to front speaker(left), the
impedance equal or more than 8-16 OHM.
Using speaker cable with exposed wires or banana plugs to connect
12. 5.1 CHANNEL DVD/AC-3 AUDIO OUTPUTS
13. RECORD OUT L/R RCA OUTPUT
14. RCA VIDEO and S-VIDEO OUTPUT
Using composite audio cables for analog 5.1 ch. Dolby/AC-3 audio output.
Connect to a recording device, powered speakers, or any device with RCA L/R audio inputs.
Connect to a TV with an RCA or S-Video input. Make sure that the correct input channel is select.
15. AUX2 AUDIO and VIDEO/S-VIDEO INPUT
16. AUX1 AUDIO and VIDEO/S-VIDEO INPUT JACK
AUX2 audio and video/s-video input channel. Connect here using an RCA cable or S-Video cable.
AUX1 audio and video/s-video input channel. Connect here using an RCA cable or S-Video cable.
21. AC POWER CONNECTOR - Connect the power cable here
22. AC INPUT SWITCH-M
~ anual switch between 220V/ 50Hz and ~110V/60Hz
1 2 3 4 5
6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
3
SUB WOOFER SURROUND SOUND SPEAKERS
