Chapter 1: product introduction, Intel, H81m-d plus sata 3.0gb/s connectors – Asus H81M-D PLUS User Manual
Page 26: H81m-d plus sata 6.0gb/s connectors
1-18
Chapter 1: Product introduction
SATA3G_1
GND RSATA_RXP1
RSATA_RXN1
GND RSATA_TXN1 RSATA_TXP1 GND
SATA3G_2
GND RSATA_RXP2
RSATA_RXN2
GND RSATA_TXN2 RSATA_TXP2 GND
H81M-D PLUS

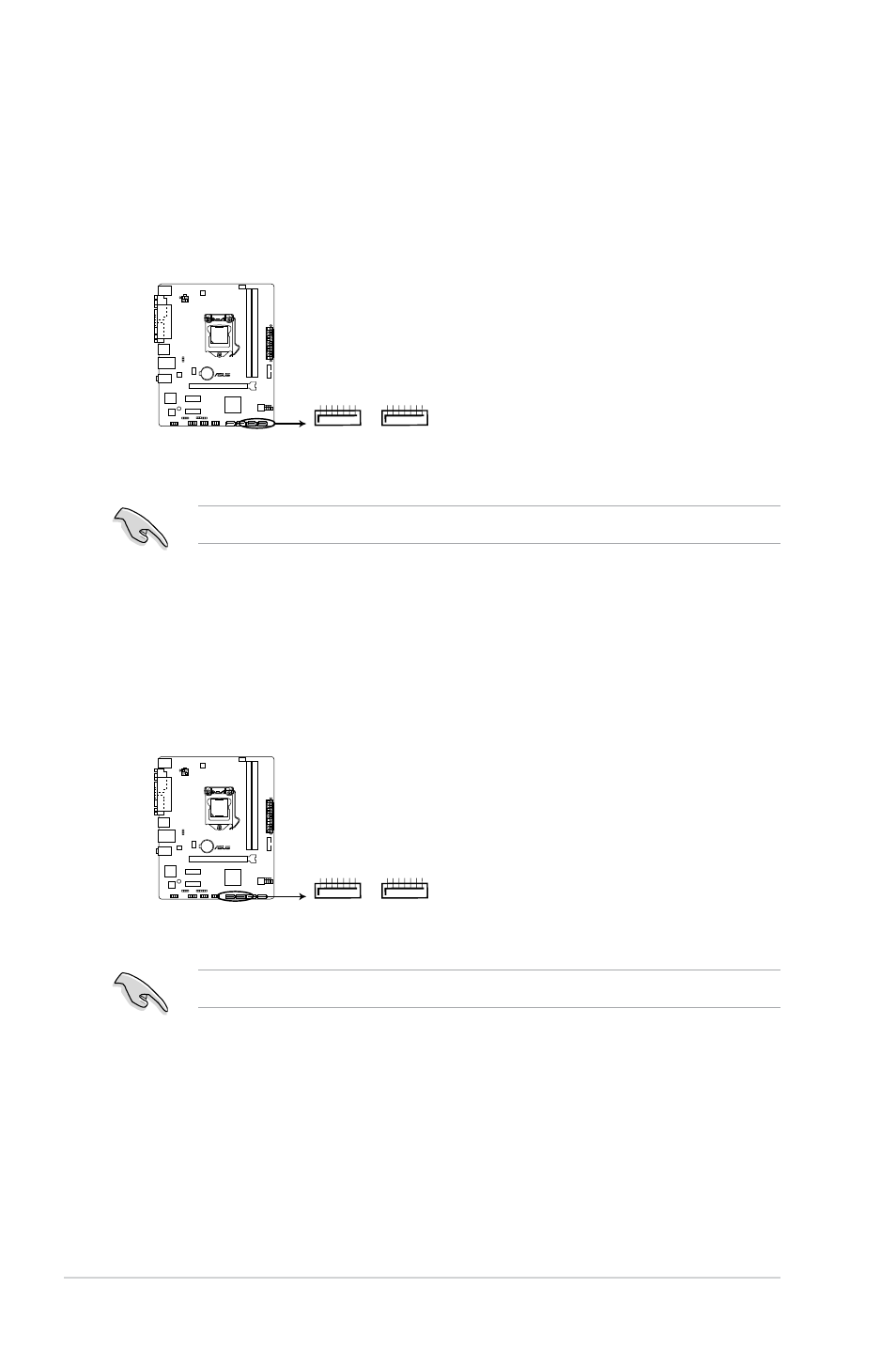

H81M-D PLUS SATA 3.0Gb/s connectors
7.
Intel
®
H81 Serial ATA 3.0 Gb/s connectors (7-pin SATA3G 1~2 [brown])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives via Serial ATA 3.0
Gb/s signal cables.
8.
Intel
®
H81 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1~2 [yellow])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
SATA6G_1
GND RSATA_RXP1
RSATA_RXN1
GND RSATA_TXN1 RSATA_TXP1 GND
SATA6G_2
GND RSATA_RXP2
RSATA_RXN2
GND RSATA_TXN2 RSATA_TXP2 GND
H81M-D PLUS
H81M-D PLUS SATA 6.0Gb/s connectors
When using hot-plug and NCQ, set the SATA Mode Selection item in the BIOS to [AHCI].
