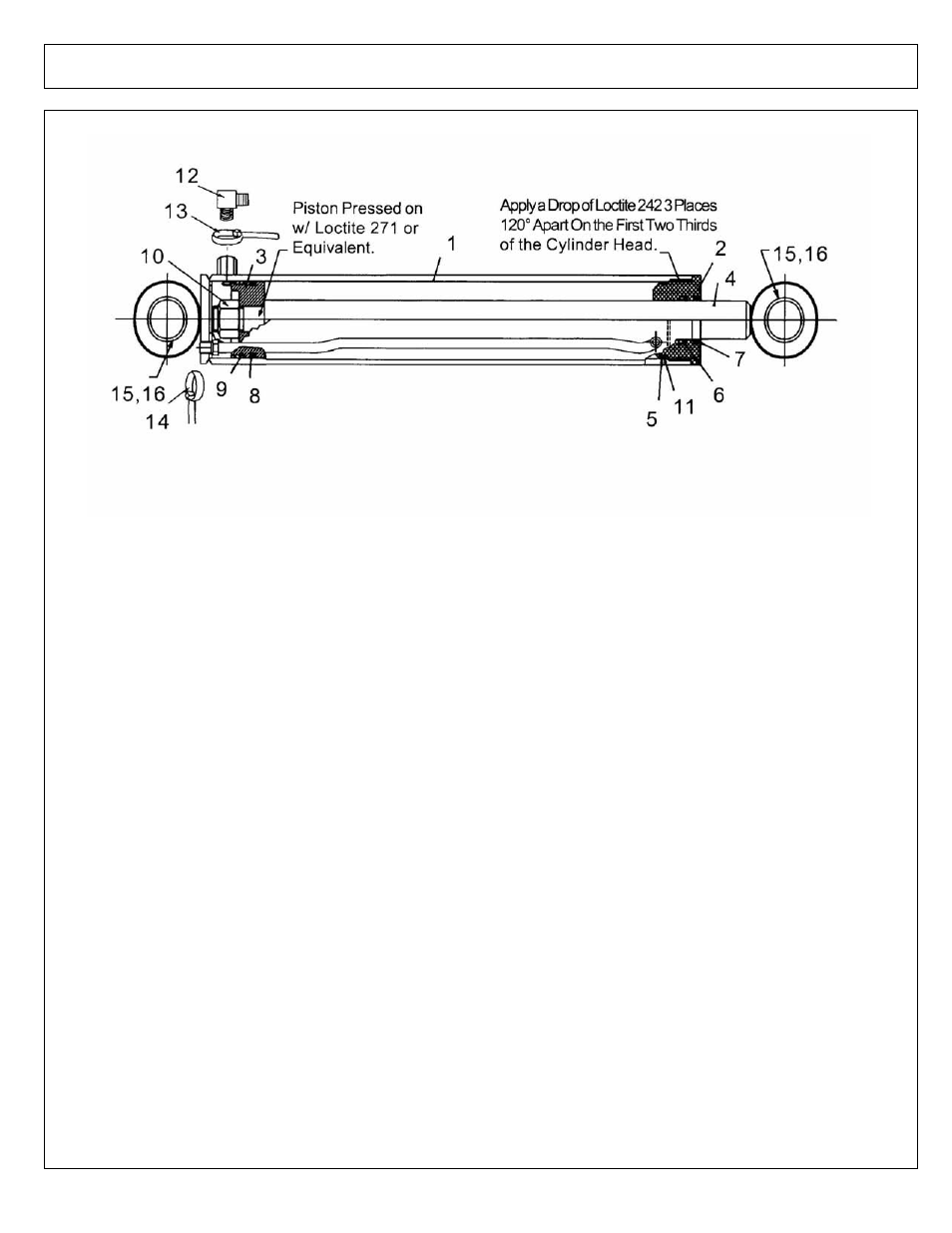

HYD CYL ASY - TILT - PN 02967175A

ITEM

PART NO. QTY.

DESCRIPTION

02968806

-

TILT CYL. ASY, W/ FITTINGS

02967175A

-

TILT CYL. ASY, L/ FITTINGS

1

02975539

1

TUBE / BARREL WLD`MT

2

02975450

1

CYLINDER HEAD

3

02975454

1

PISTON

4

02975540

1

ROD WLD`MT

5

* SEAL KIT

1

O-RING (IN ITEM 17)

6

* SEAL KIT

1

SEAL ROD, HALITE (IN ITEM 17)

7

* SEAL KIT

3

SEAL, WIPER ROD (IN ITEM 17)

8

* SEAL KIT

2

SEAL, PISTON RING (IN ITEM 17)

9

* SEAL KIT

1

WEAR RING (IN ITEM 17)

10

02975453

1

LOCKNUT

11

*SEAL KIT

1

SEAL, CYL. HEAD (IN ITEM 17)

12

63149100

2

ELBOW

13

02968828

1

PLASTIC TIE, RED / WHITE

14

02968829

1

PLASTIC TIE, RED

15

02968803

2

BUSHING

16

02975541

2

BUSHING

17

02975530

1

SEAL KIT (ITEMS 5,6,7,8,9 & 11)
