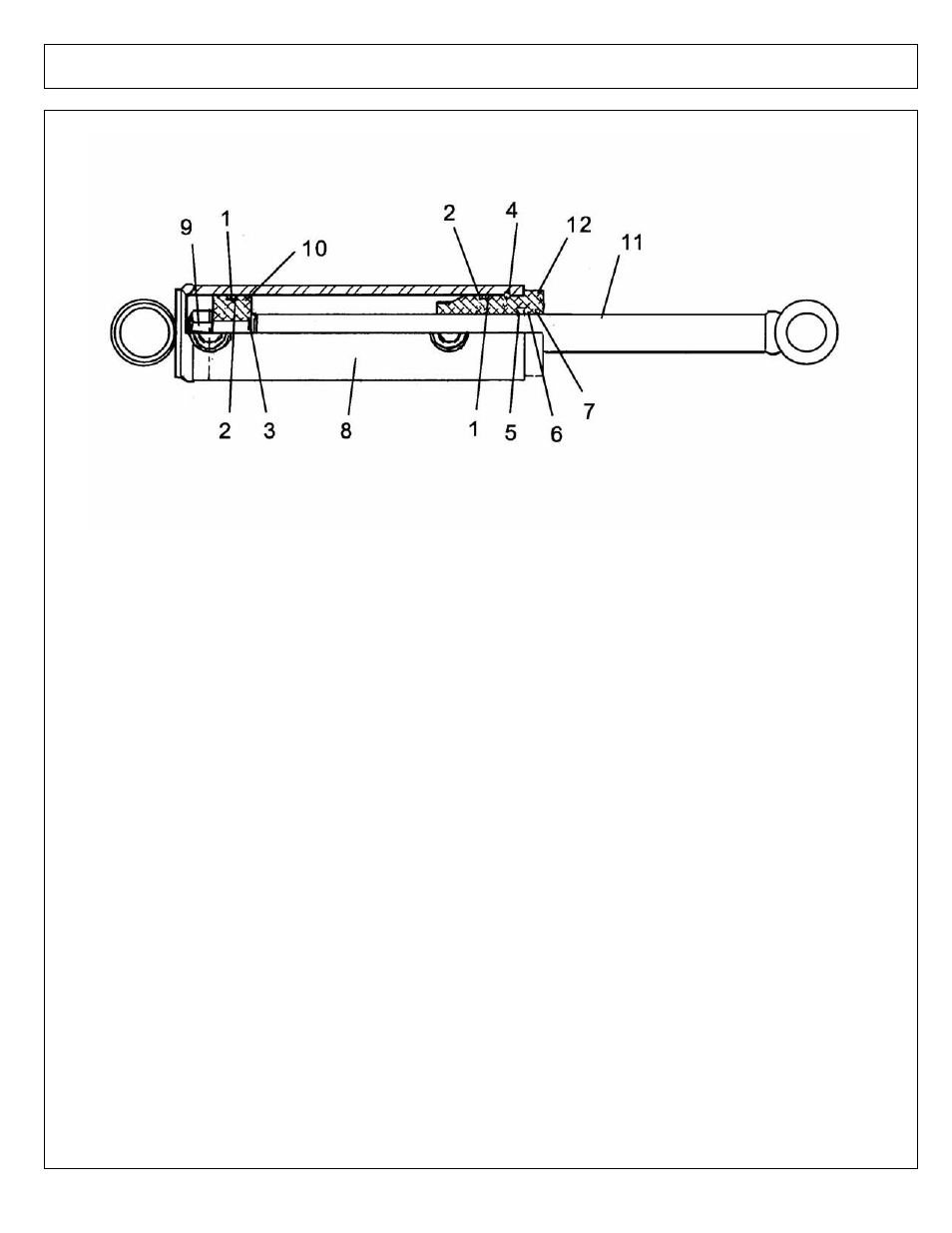

FLAIL AXE - DOOR CYL ASY - PN 02970710A

ITEM

PART NO. QTY.

DESCRIPTION

02970710A

-

CYLINDER ASY, FLAIL AXE DOOR CYL.

1

* SEAL KIT

3

BACK-UP RING

2

* SEAL KIT

2

O-RING

3

* SEAL KIT

1

O-RING

4

* SEAL KIT

1

LOCKWIRE

5

* SEAL KIT

1

O-RING

6

* SEAL KIT

1

BACK-UP RING

7

* SEAL KIT

1

ROD WIPER

8

02975588

1

TUBE

9

5JRC8200

1

LOCKNUT

10

02975590

1

PISTON

11

02975591

1

ROD

12

02975589

1

HEAD GLAND

13

02975532

1

SEAL KIT, (ITEMS 1 THRU 7)
