Alamo 02968915P User Manual
Page 131

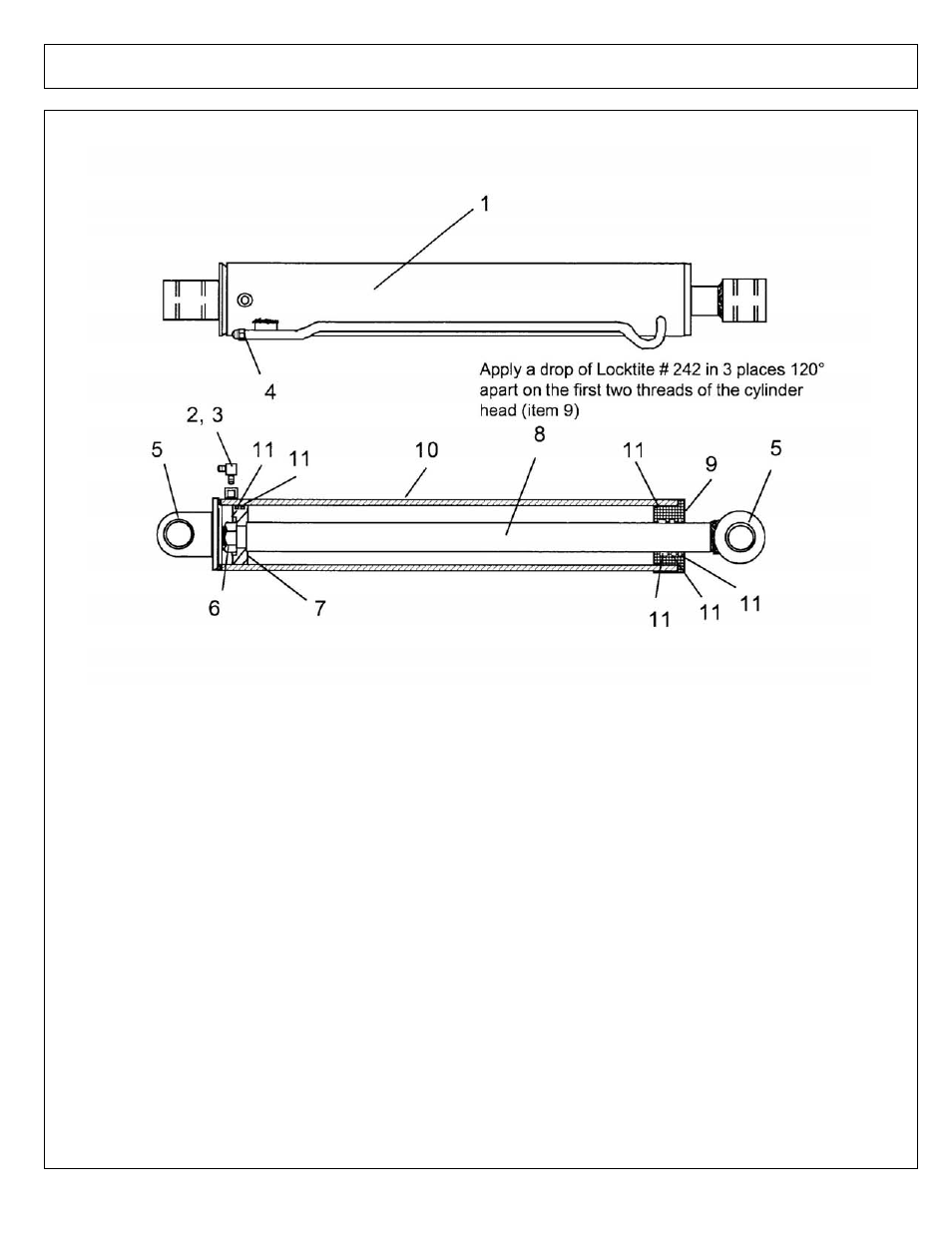

HYD CYL ASY - DIPPER - PN 02979920 (17 FT)
ITEM
PART NO. QTY.
DESCRIPTION
02979920
-
DIPPER CYLINDER ASY
1
02979784
1
CYLINDER HEAD
2
63149100
1
ADAPTER, ELBOW
3
02968830
1
PLASTIC TIE - W/ BLUE TIE
4
02968831
1
PLASTIC TIE - W/ BLUE / WHITE TIE
5
02968803
2
BUSHING
6
5JRC16140
1
LOCKNUT
7
002625
1
PISTON
8
02978823
1
ROD WLD`MT
9
02979947
1
CYLINDER HEAD
10
02979924
1
TUBE / BARREL WLD`MT
11
02975531
1
SEAL KIT
©2008 Alamo Group Inc.
Parts Section -128
Machete Boom 17 21 and 24 04-04 Rev 12-08
