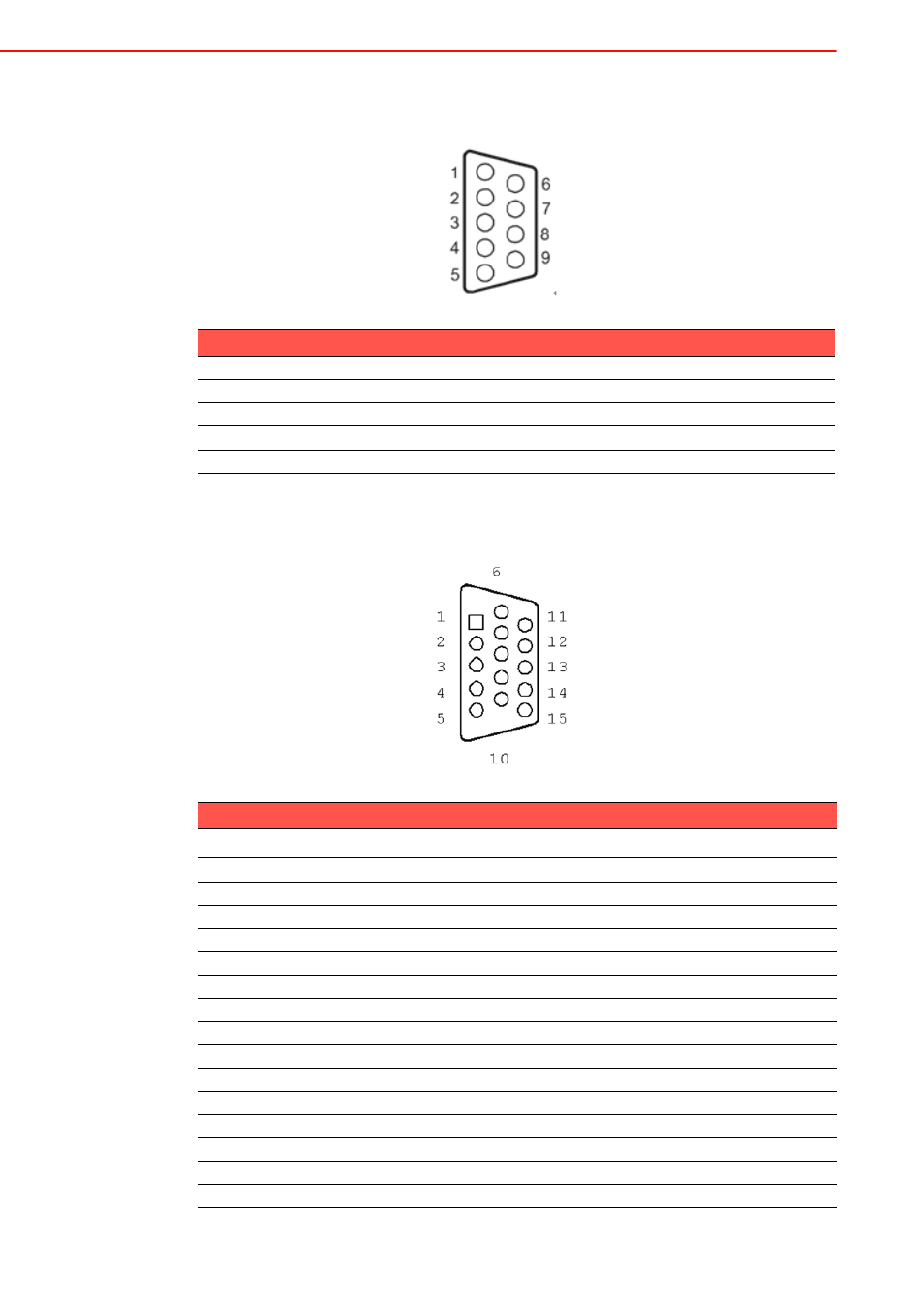

GPIO port (CN29)
A.7
VGA Connector (CN39)
Table A.6: GPIO port (CN29)
1
GPIO0
2
GPIO1
3
GPIO2
4
GPIO3
5
GND
6
GPIO4
7
GPIO5
8
GPIO6
9
GPIO7
Table A.7: VGA connector (CN39)
Pin
Signal
1
RED
2
GREEN
3
BLUE
4
N/A
5
GND
6
GND
7
GND
8
GND
9
N/A
10
GND
11
N/A
12
SPDAT
13
HSYNC
14
VSYNC
15
SPCLK
