9 PPC-L128T User Manual
Chapter 2
S
ystem
Setup

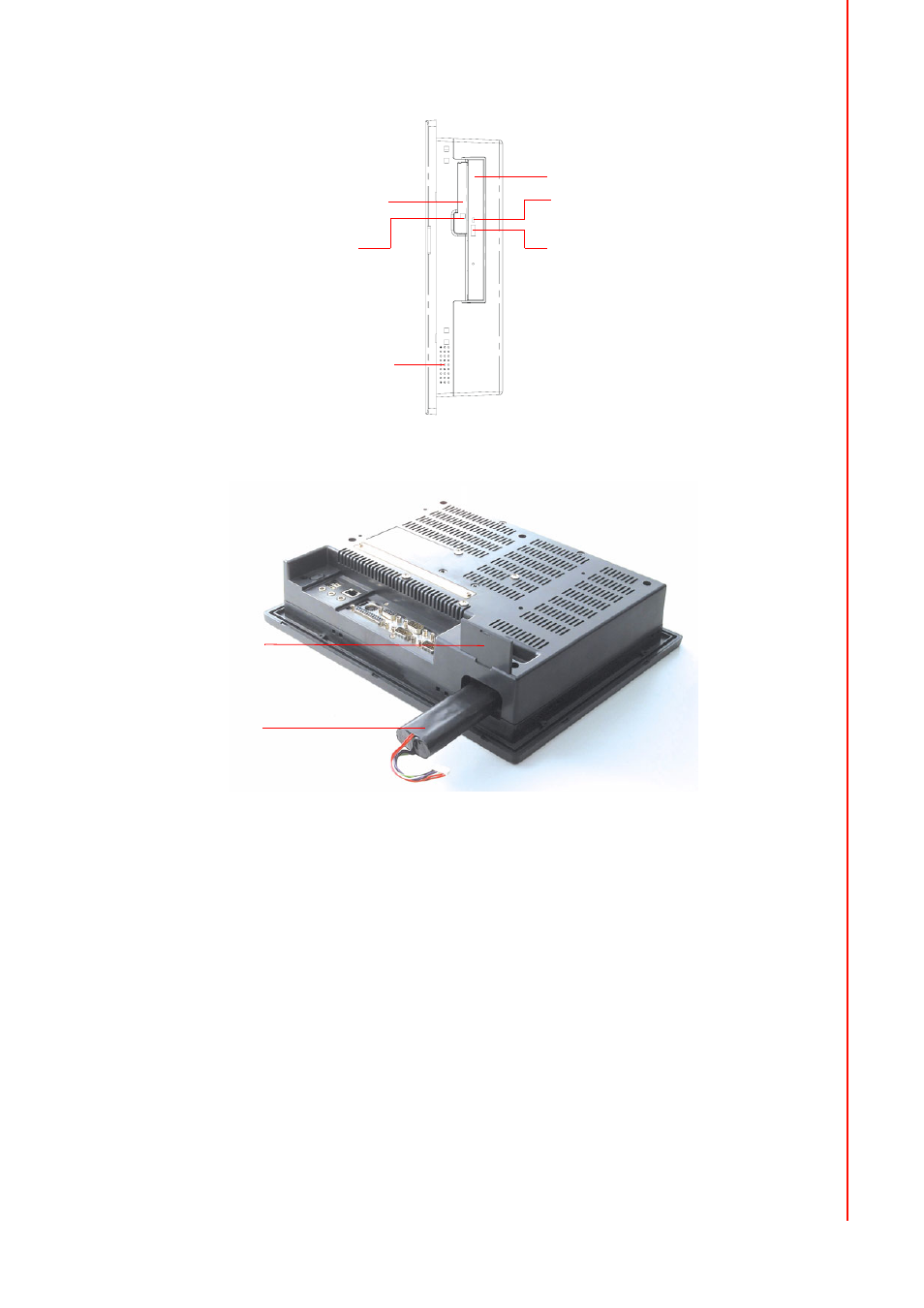

Figure 2.3 Side view of the panel PC
Figure 2.4 Bottom view of the panel PC
2.2 Installation Procedures
2.2.1 Connecting the power cord
The panel PC can be powered by a DC electrical outlet or the battery. Be sure to
always handle the power cords by holding the plug ends only. Please follow the Fig-
ure 2-5 to connect the male plug of the power cord to the DC inlet of the panel PC.
2.2.2 Connecting the keyboard or mouse
Before you start the computer, please connect the Y-shaped adaptor to the PS/2
mouse and keyboard port on the I/O section of the panel PC, then connect the nec-
essary mouse or keyboard to the Y-shaped adapter or
serial ports.
CompactFlash socket
CFC eject button
Speaker
Compact DVD-RW drive
DVD-RW activity light
DVD-RW eject button
Door Cover
Battery
