2
Actiontec Wireless-Ready Cable/DSL Router User Manual
Router Features
The Router has a series of LED s (lights), as well as two PC Card slots and a variety
of ports. It is recommended that the user become familiar with these features
before installing or setting up the Router.
Front Panel

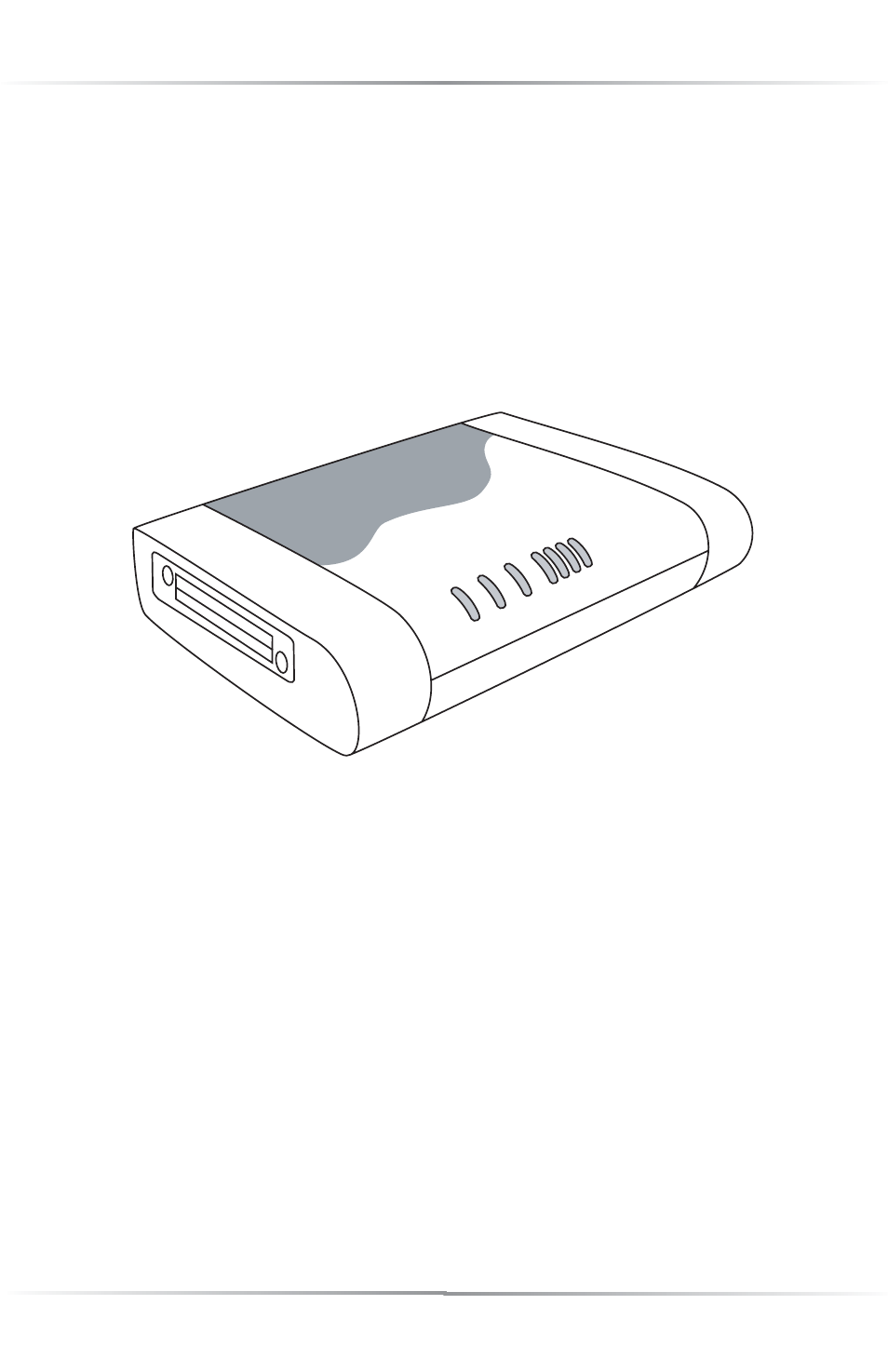

There are seven LEDs (light emitting diodes, or lights) on the front panel of the
Router, as shown in the figure, below.
Power LED
The Power LED glows green when power is supplied to the Router. When it
flashes, the Router is going through its initialization process.
Modem LED
The Modem LED glows green when a broadband device (cable/DSL modem, for
example) is connected to the Router, and flashes when the Router is going
through its initialization process.
Internet LED
The Internet LED flickers green when the Router connects to the Internet
through a cable/DSL modem.
Pow
er
Modem
Internet
LAN
USB
Wire less PC
Car
d
