IPsec Settings
18
2
 EAP
EAP is an authentication protocol that is an extension of PPP. By using EAP together with
IEEE802.1x, a different key is used for user authentication and each session.
The following settings are necessary only when EAP - MD5 or EAP - MS-CHAPv2 is selected in
Authentication Method.
• Mode
Select Server-Mode or Client-Mode.
• Certificate
Select the certificate.
• User Name
Enter the user name. (Maximum of 32 characters)
• Password
Enter the password. The password must be entered two times for confirmation. (Maximum of 32
characters)
• Certificate>>
Click this button to move to the certificate setting screen.

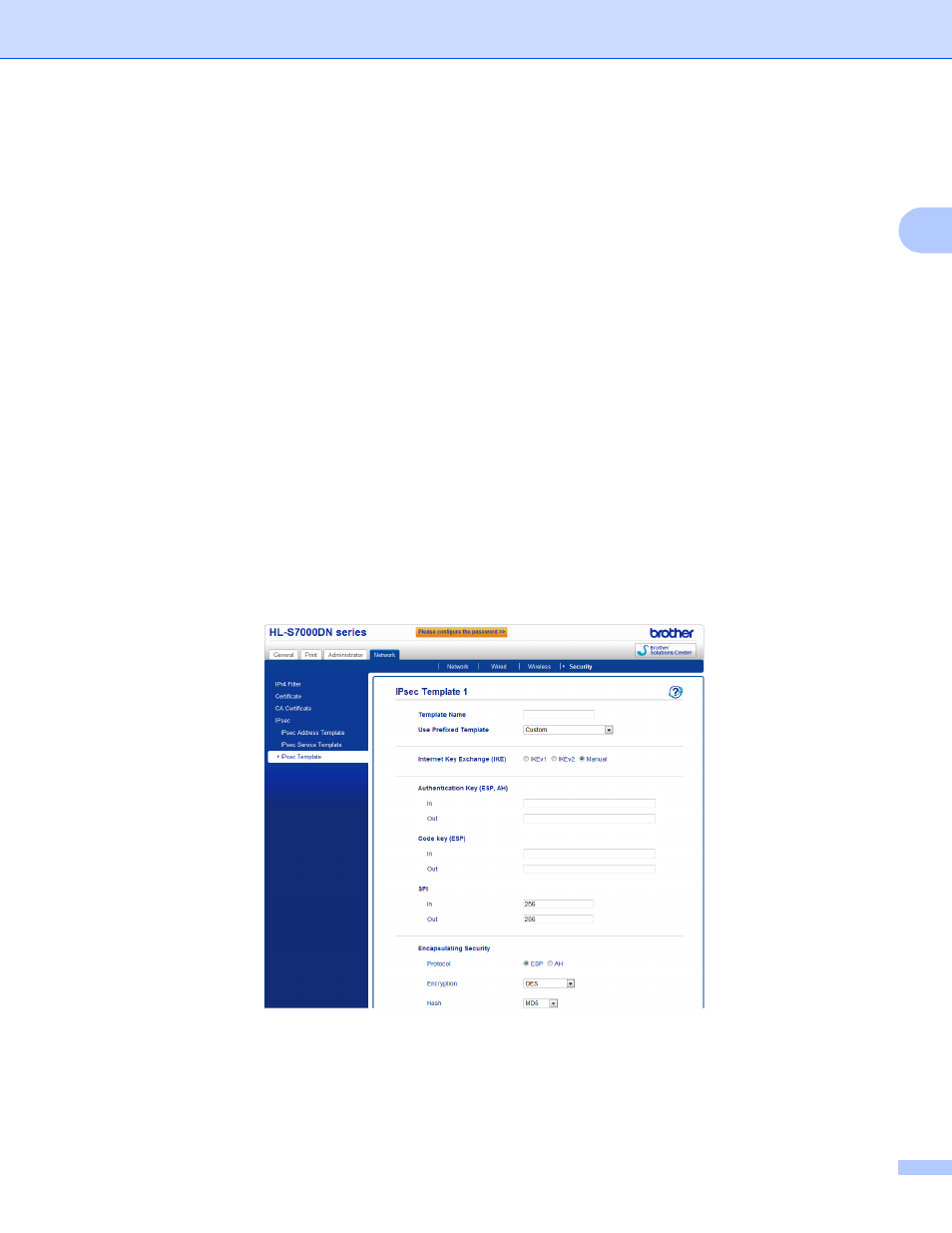

 Authentication Key (ESP,AH)
Specify the key to use for authentication. Enter the In/Out values.
These settings are necessary when Custom is selected in Use Prefixed Template, Manual is
selected in IKE, and a setting other than None is selected in Hash in Encapsulating Security.
(IKE:Manual)
