Page 47
3.4.15 MPS Version Control For OS
This specifies the version of the Multiprocessor Specification (MPS) to
be used. Version 1.4 has extended configuration tables to improve sup-
port for multiple PCI bus configurations and provide future expandability
- use this for NT, and possibly Linux. It is also required for a secondary
PCI bus to work without the need for a bridge. Leave it as 1.1 for older
server Operating Systems.
3.5 Advanced Chipset Features
By choosing the “Advanced Chipset Features” option from the “Initial
Setup Screen” menu, the screen below will be displayed. This sample
screen contains the manufacturer’s default values for the DVMB-554E,
as shown in Figure 3-5:

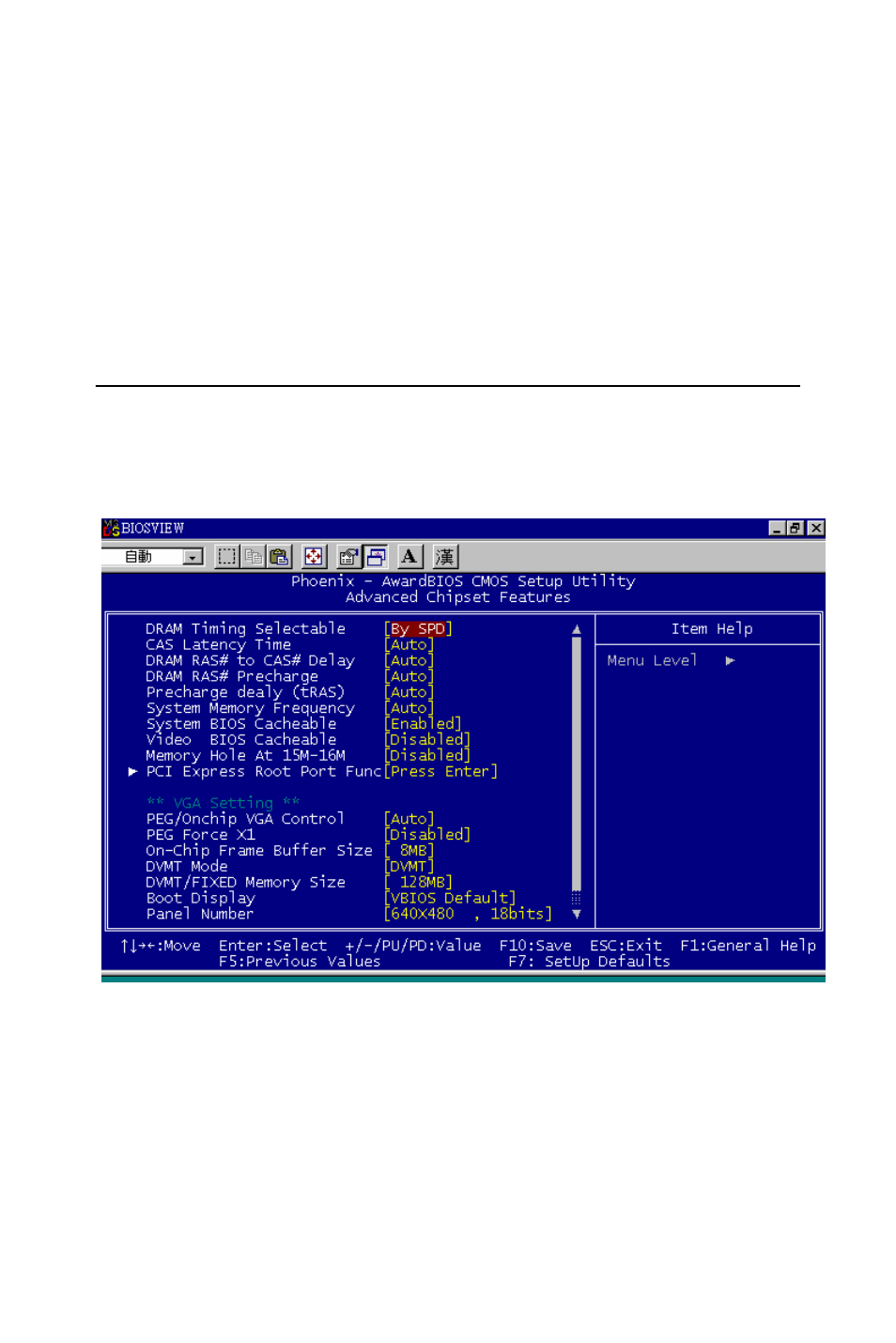

Figure 3.5: Advanced chipset features screen (a)
