Main module reassembly procedure, Replacing the cpu, Replacing the thermal module – Acer 4530 User Manual
Page 112: Replacing the cpu replacing the thermal module
102
Chapter 3

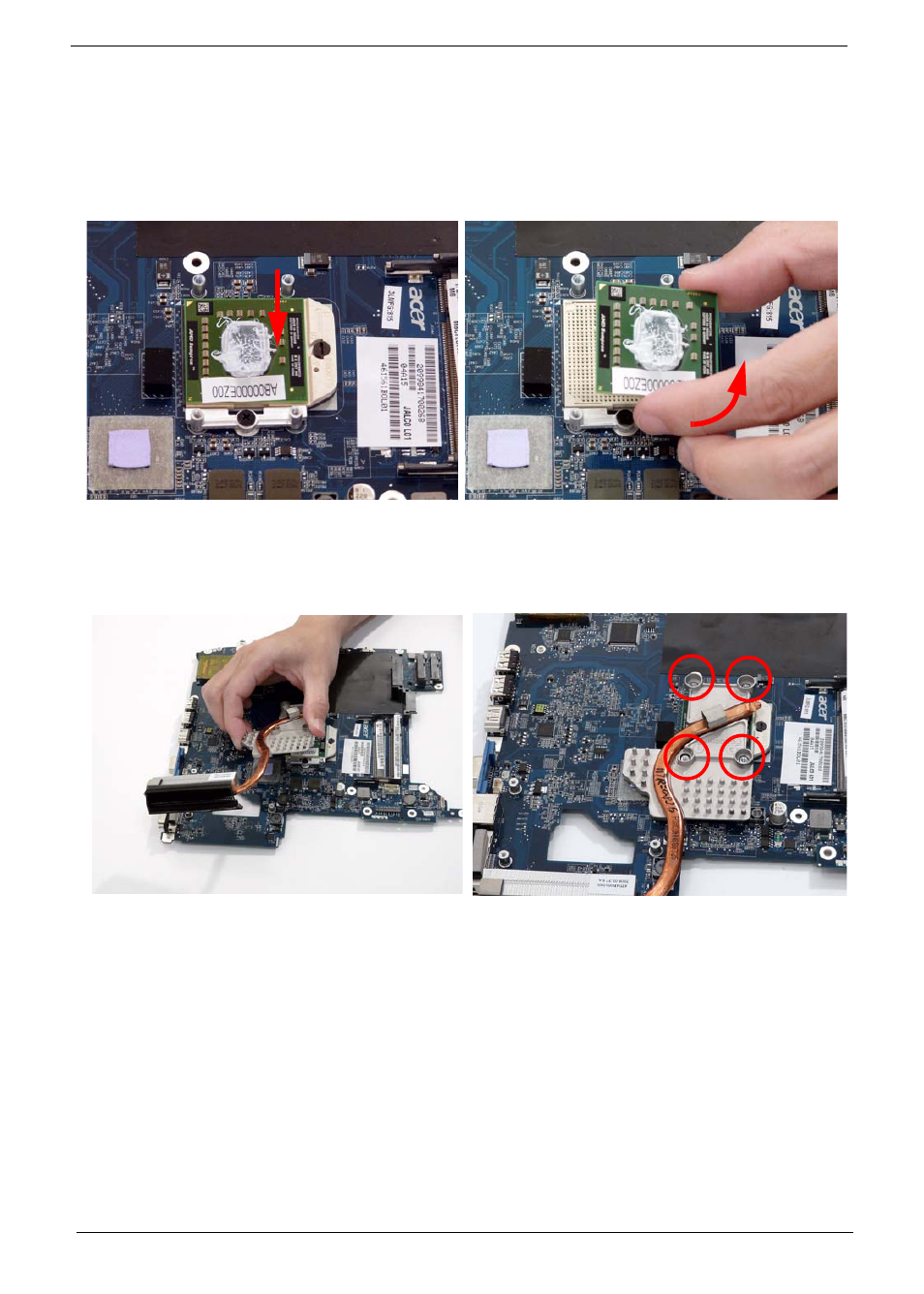

Main Module Reassembly Procedure
Replacing the CPU
Replacing the Thermal Module
1. Carefully turn the mainboard upside down (CPU
side up), and insert the CPU into the CPU bracket
as shown.
2. Using a flat-tipped screw driver, lock the CPU in
the socket as shown.
1. Align and place the Thermal Module in the
mounting as shown.
2. Tighten the four (4) securing screws from the
CPU plate.
