7 3 0 7 9 8 - 1 0 0 - 3 -
Screw feet onto base of locker. Move locker into
desired position. Be sure to leave enough room for
the swing of the door.
TOWEL AND STORAGE LOCKER 9442.000
Roughing-in Dimensions 20
(508mm)
RIBBED
GLASS
44
(1118mm)
16
(406mm)

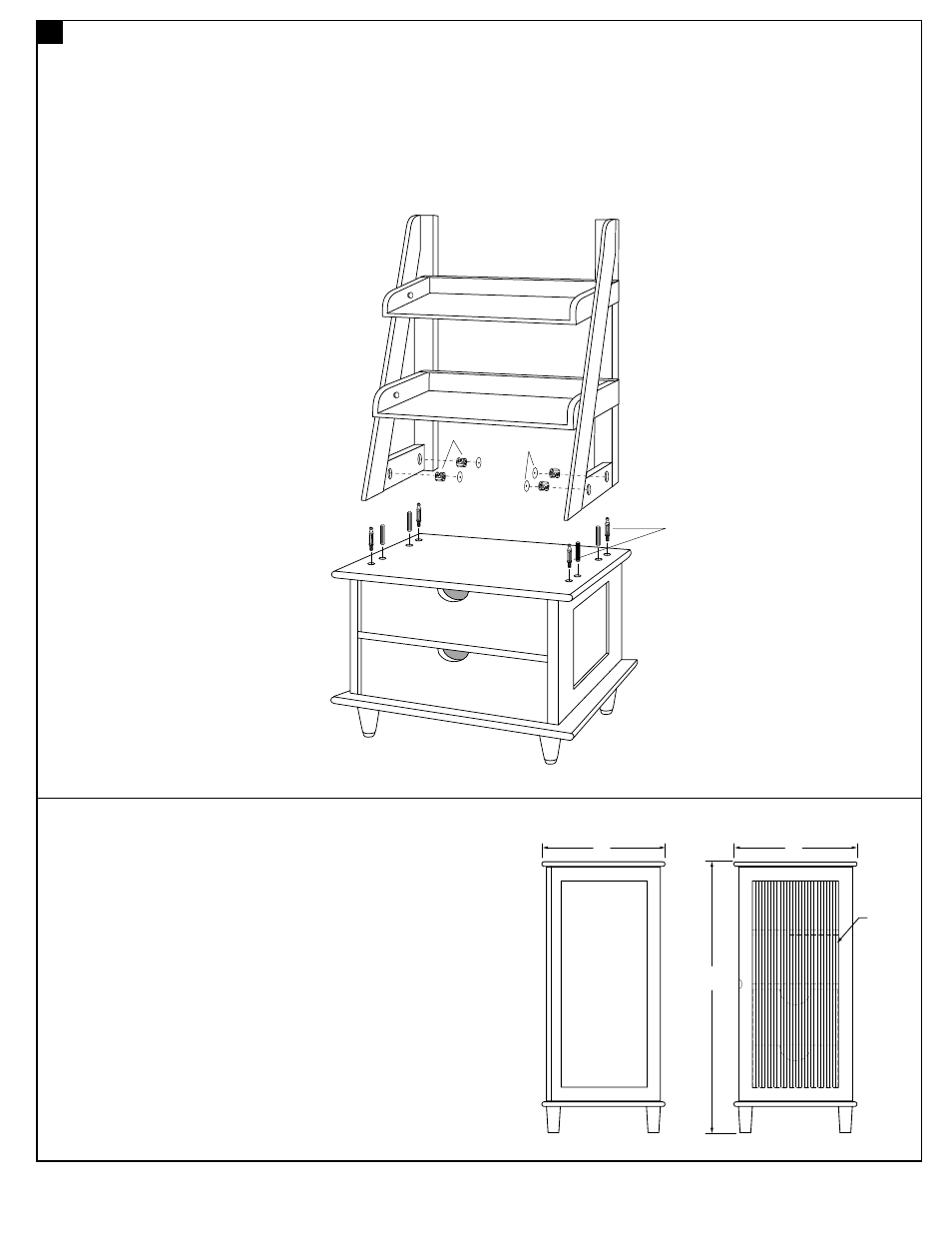

Insert 4 cam locks into lower support arms located on left and right side rails. Insert 4 wooden dowels and
screw 4 cam bolts into drilled holes located on drawer unit top.
Line up the drilled holes on shelf unit base with the wooden dowels and cam bolts. Slide the shelf unit into
place. Use a phillips head screw driver to tighten the cam locks. Conceal the cam locks with the plastic covers.
Use a rubber mallet to carefully tap the covers into place.
Move the ladder bath cabinet into desired location.
3
Attach Shelf Unit to Drawer Unit
F
G
E
