Trimec ES110 Series Electric Strike - Manual (Page 2)

Page 2 Page 3
Solenoid Leads Colour
Red
Blue
Supply Voltage
12 VDC
24 VDC
Current Draw
250 mA
187 mA
CAUTION! Incorrect supply voltage may cause damage not covered by warranty. Please check supply voltage with a suitable meter
to ensure it is within +/- 15% of the nominal voltage shown above with the strike powered.
This product has been designed for use in weather protected areas only. DO NOT OIL OR LUBRICATE.
Certifi cation
AS4145.2 compliant
BS5872 approved
CE compliant
up to 20-minutes fi re rating, depending on type of doorset
(in accordance with AS1905.1 - 1997, Part 1: Fire-resistant Doorsets)
Wiring methods and materials shall be in accordance with the National Electric Code, ANSI/NFPA 70 - 1996.
Unit must be powered by a UL listed limited energy power source.
Use only those mounting screws and hardware supplied with the product for installation. Do not use substitute installation fasteners or
hardware.
UL listed for burglary resistance category 1034.
Standard UL 1034 Tested and Listed for:
1,500 lbs. (680 kg) static strength rating
70 foot-lbs. dynamic strength rating
250,000 cycles endurance rating
At the request of ASSA ABLOY Australia, this model was tested to the following VOLUNTARY ratings:
1,000,000 cycles of operation
•
•
•
•
•
•
•
•
•
•
•
•
20
Mins
UL Listing
100A series - 17mm
110A series - 20mm

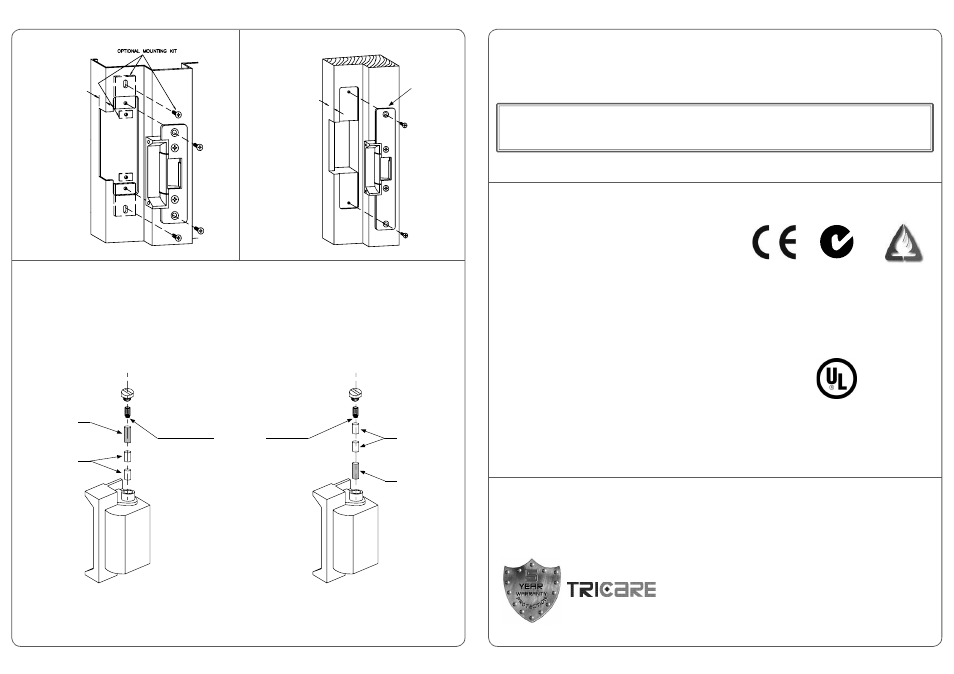

To change electric strike’s mode of lock operation, remove brass screw from top of strike body.
Invert strike and release the spring and 3 locking pins (2 x Short pin, 1 x Long pin).
Re-insert pins in in the manner shown for the desired mode of lock operation (Power to Open: see Fig. 5; Power to Lock: see Fig. 6),
followed by the spring.
Screw in the brass screw to strike body. This will secure the spring and locking pins
1.
2.
3.
4.
Small End of
Spring
Short Pins
Long Pin
Short Pins
Long Pin
Fig. 5 -
Power to Open (Fail-Secure) Confi guration
Fig. 6 -
Power to Lock (Fail-Safe) Confi guration
5 Year Limited Warranty
ASSA ABLOY Australia guarantees for a period of 5 years in accordance with Trimec’s Standard Warranty Conditions, against defects in
manufacture, workmanship or materials, provided that all electrical and mechanical installation requirements are adhered to as per this
datasheet. All third party and consequential claims are expressly excluded from this warranty.
warranty
ASSA ABLOY Australia
2/16 Atkinson Road
Taren Point 2229
NSW, Australia
www.assaabloyasiapacifi c.com
CHANGING MODE OF LOCK OPERATION
ELECTRICAL SPECIFICATIONS Fig. 3 - Metal Jamb Installation Fig. 4 - Wood Jamb Installation Fig. 4 - Wood Jamb Installation
100B series - 17mm
110B series - 20mm
“B” Plate
strike shown
