TOHO ELECTRONICS TTX-700 - Manual (Page 38)

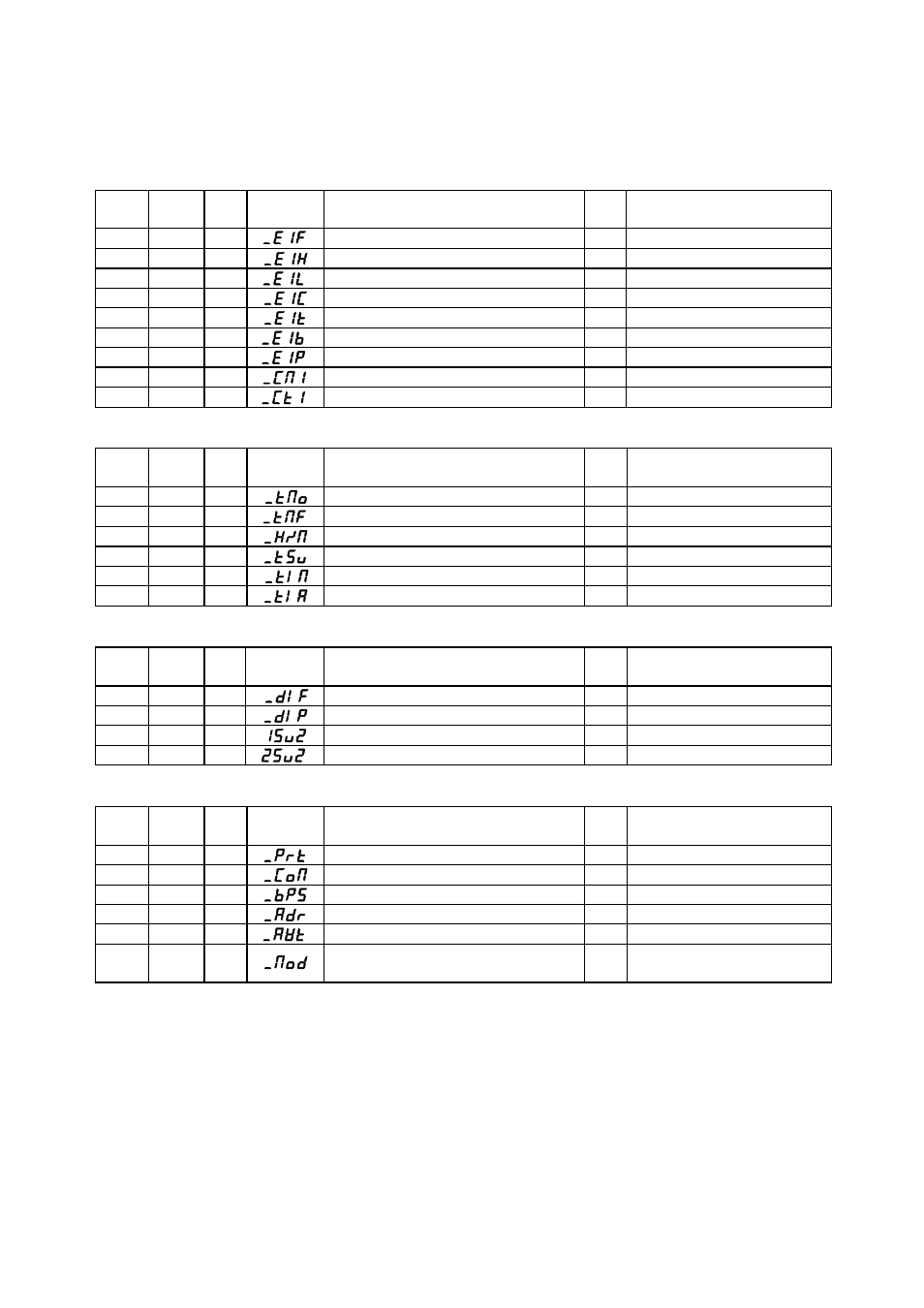

MODBUS ADR Event setting mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40072 40073 E1F Set an event output function R/W
40074 40075 E1H Set an event output upper limit R/W
40076 40077 E1L Set an event output lower limit R/W
40078 40079 E1C Set an event output sensitivity R/W
40080 40081 E1T Set an event output delay timer R/W
40082 40083 E1B Set an event output special function R/W
40084 40085 E1P Set an event output polarity R/W
40086 40087 CM1 CT monitor R
40088 40089 CT1 Set a CT abnormal current R/W
MODBUS ADR Timer setting mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40090 40091 TMO Set a timer output destination R/W
40092 40093 TMF Set a timer function R/W
40094 40095 H/M Set a timer unit R/W
40096 40097 TSV Set a timer SV start tolerance R/W
40098 40099 TIM Set a timer time R/W
40100 40101 TIA Set a timer remaining time R/W
MODBUS ADR DI setting mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40102 40103 DIF Set a DI function R/W
40104 40105 DIP Set a DI polarity R/W
40106 40107 SV2 Set a CH1 SV2 R/W
40108 40109 SV2 Set a CH2 SV2 R/W
MODBUS ADR Communications setting mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40110 40111 PRT Set a communications protocol R/W
40112 40113 COM Set a communications parameter R/W Example: □B8N2
40114 40115 BPS Set a communications speed R/W Example: 00096 (if 9600 bps)
40116 40117 ADR Set a communications address R/W
40118 40119 AWT Set a communications response delay R/W
40120 40121 MOD Set communications mode switchover R/W
RO:00000
RW:00001
３８
