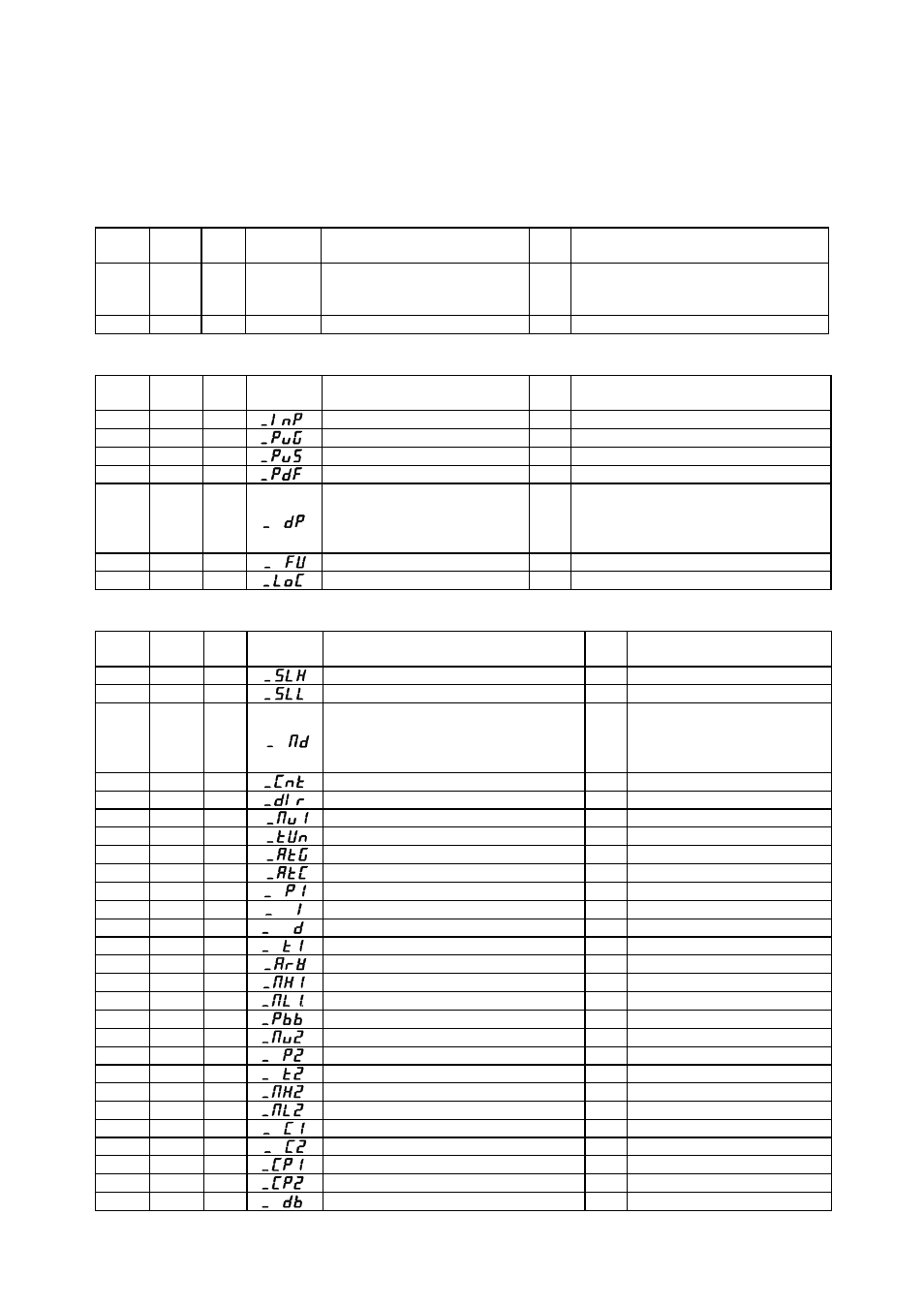

10. Table of identifiers (codes)
MODBUS ADR Operation mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40000 40001 PV1 Measurement R
Use it as a monitor for measurements (PV).
When overscale: HHHH
When underscale: LLLL
40002 40003 SV1 Control setting R/W R/W of the setting (SV)
MODBUS ADR Initial setting mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40004 40005 INP Set an input type R/W 000??
40006 40007 PVG Set a PV corrected gain R/W
40008 40009 PVS Set a PV corrected zero point R/W
40010 40011 PDF Set a PV filter R/W
40012 40013 □DP Set a decimal position R/W
No decimal point : 00000
1 decimal place : 00001
2 decimal place : 00002
3 decimal place : 00003
40014 40015 □FU Set a function key function R/W
40016 40017 LOC Set a key lock R/W
MODBUS ADR Control setting mode
Low-
level W
High-
level W
Iden-
tifier
Character Name R/W Description
40018 40019 SLH Set an SV limiter upper limit R/W
40020 40021 SLL Set an SV limiter lower limit R/W
40022 40023 □MD Set control mode R/W
Control execution : 00000
Manual control : 00001
Control stop : 00002
Auto-tuning in progress : 00003
40024 40025 CNT Set a control type R/W
40026 40027 DIR Set positive/reverse operation switchover R/W
40028 40029 MV1 Amount of output operation R/W W possible during manual control
40030 40031 TUN Set a tuning type R/W
40032 40033 ATG Set an AT factor R/W
40034 40035 ATC Set an AT sensitivity R/W
40036 40037 □P1 Set a proportional band R/W
40038 40039 □I1 Set an integral time R/W
40040 40041 □D1 Set a derivative time R/W
40042 40043 □T1 Set a proportional frequency R/W
40044 40045 ARW Anti-reset windup R/W
40046 40047 MH1 Set an amount-of-operation limiter upper limit R/W
40048 40049 ML1 Set an amount-of-operation limiter lower limit R/W
40050 40051 PBB Manual reset R/W
40052 40053 MV2 Amount of cooling output operation R/W W possible during manual control
40054 40055 □P2 Set a cooling power proportional band R/W
40056 40057 □T2 Set a cooling output proportional cycle R/W
40058 40059 MH2 Set a cooling output amount-of-operation limiter upper limit R/W
40060 40061 ML2 Set a cooling output amount-of-operation limiter lower limit R/W
40062 40063 □C1 Set a (heating output) control sensitivity R/W
40064 40065 □C2 Set a cooling output control sensitivity R/W
40066 40067 CP1 Set an off-point position R/W
40068 40069 CP2 Set a cooling output off-point position R/W
40070 40071 □DB Set a dead band R/W
