Page 4

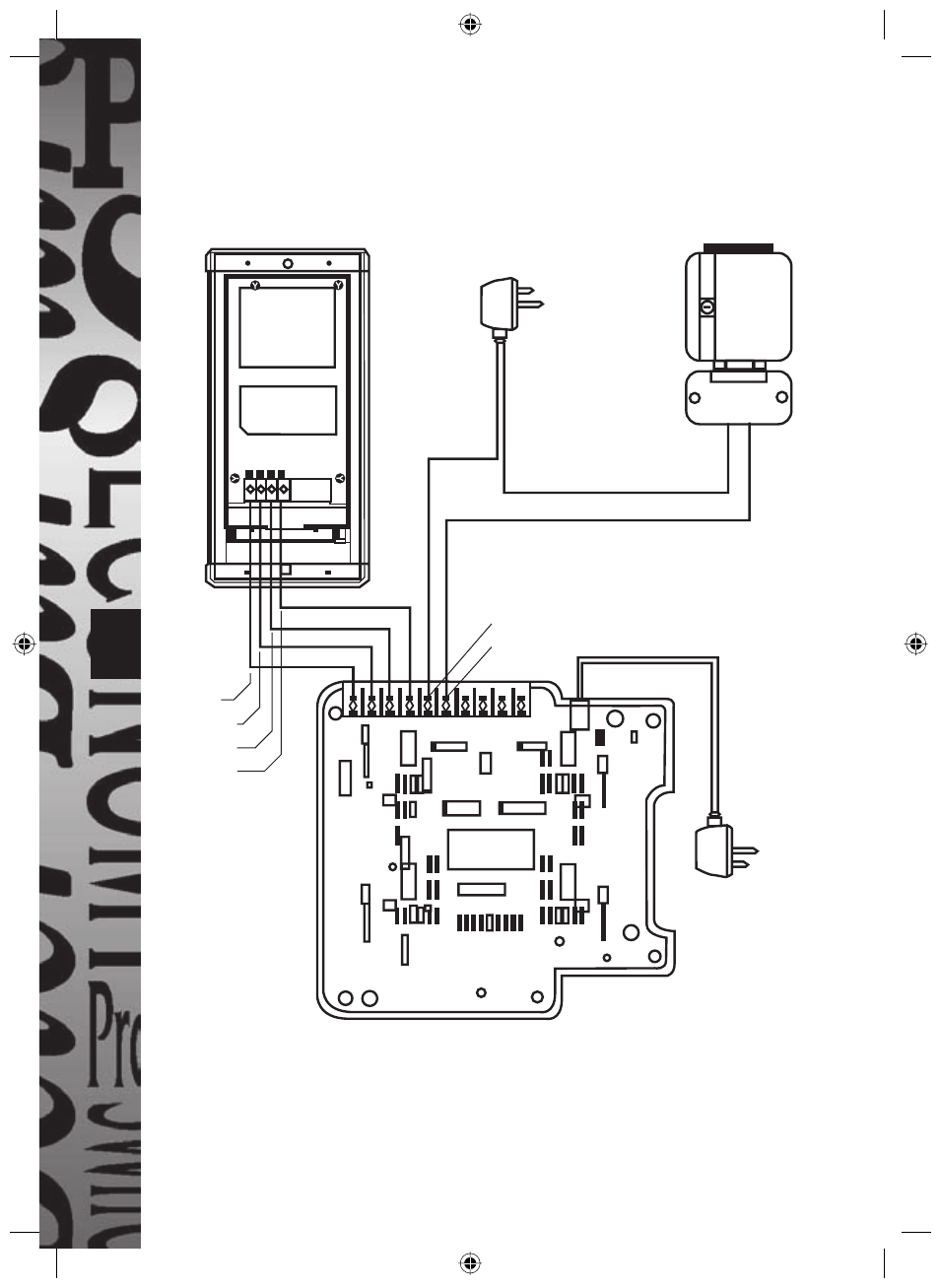

Fig 2 - Wiring diagram

External intercom (rear

view)

Electric door catch

(not supplied)

Part DCLR

Mains adaptor for door

catch (not supplied)

Part DCADAP

Internal intercom

(rear view)

1R (red)

2W (white)

3B (brown)

4Y (yellow)

5K1
6K2

Mains adaptor
