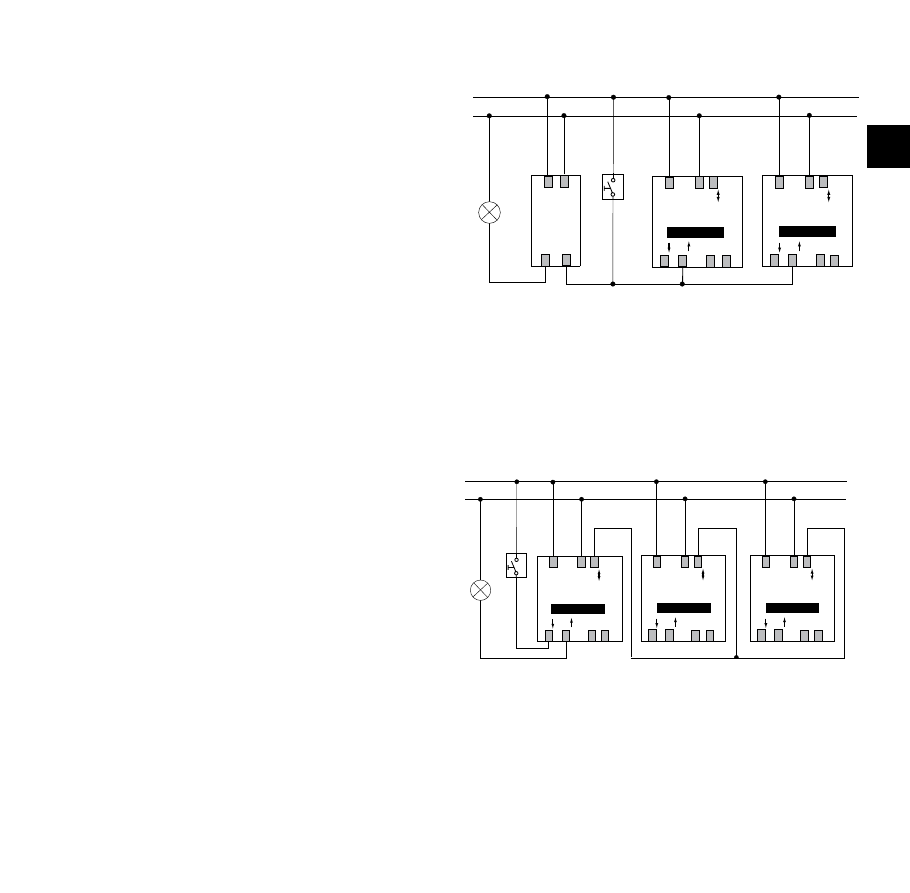

. Parallel circuit operation with external staircase lighting timer
Directly connect the switching
contacts of multiple detectors in
parallel.
Set the switch-off delay on all
detectors to “pulse”.
Mark all power modules as
master.
Staircase lighting timer e.g. Theben ELPA 1
.4 Detector as staircase lighting timer
The master directly controls
the lighting.
The push-button starts the
master’s switch-off delay.
Set DIP switch to “corridor”
to prevent switching off via
push-button.
Further slaves can be connected in parallel using the P-terminal if required
Only set the potentiometer and DIP switches on the master.
Mark the power modules as master or slave respectively.
●
●
●
●
●
●
●
●
●
●
GB
compact
power
N
L
N L
S A
compact
power
compact
power
Slave Slave Master
P
B2 B1
N L
S A
P
B2 B1
N L
S A
P
B2 B1
N L
S A
P
B2 B1
N L
S A
P
B2 B1
ELPA 1
N
L
N L
out in
compact
power
Master
compact
power
Master
