Timeguard SLFM360L - Manual (Page 2)

1 2
A
C
B

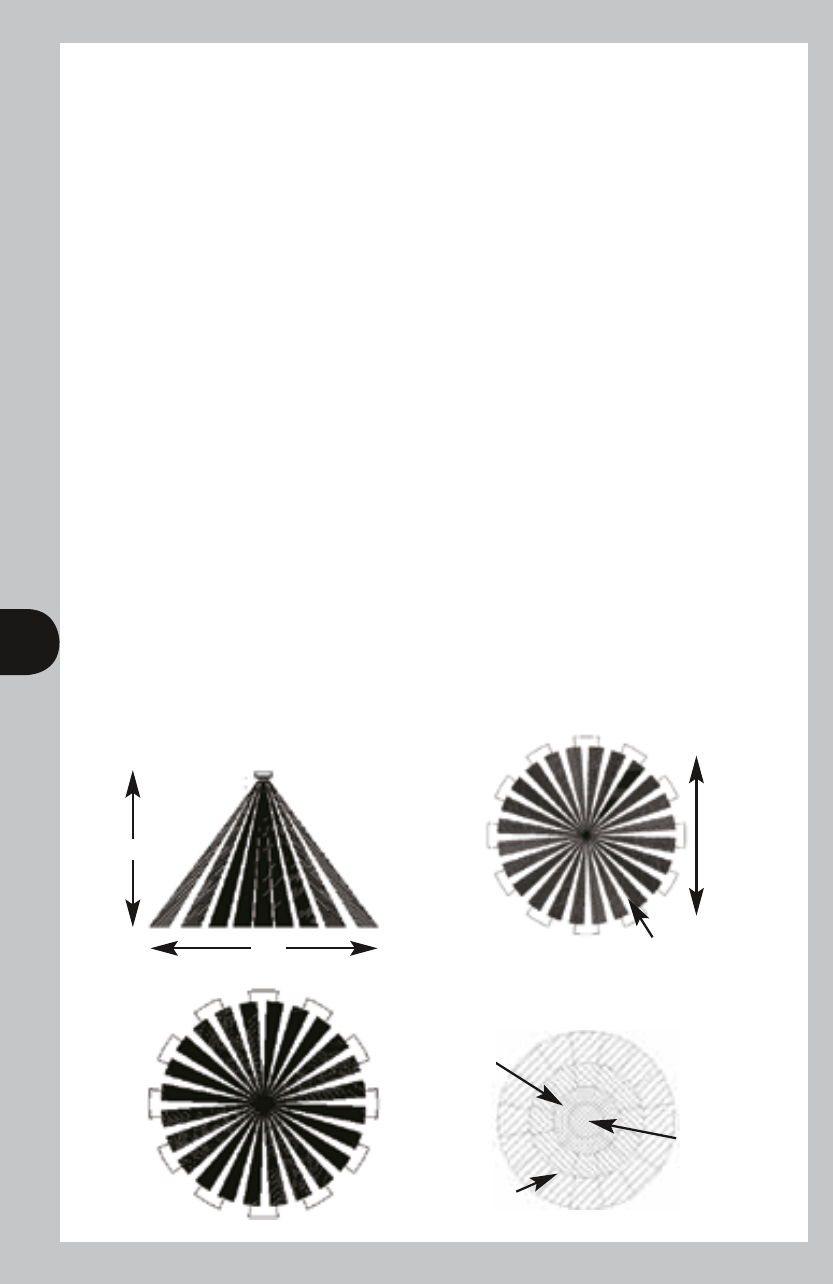

Lens Mask
Less sensitive
Mor
e sensitiv
e
360 0
Side View
Top View
Wiring cover
Factory fitted
bridge wire
REMOVED
L1 L N E
Switched
Load
OUT
Factory fitted
bridge wire
Levering area
Time On
setting
Lux -
Dusk/Dawn
setting
Mains
Supply
IN
2.5m
6m
Cable clamps x2
Locators
L ocating
springs
pulled
back
L ocating
springs
fitted
position
Sensor
Levering area
D
E
F
G
Restrict long
detection
Restrict
short
detection
Restrict
detection
directly
under
sensor
L1 L N E
Switched
Load
OUT
Mains
Supply
IN
Introduction
The SLFM360L utilises passive infrared technology to detect heat
radiation of moving human bodies. Upon detection, the attached
lighting load will illuminate for a user-determined time period.
An integral daylight sensor ensures all day or night-only operation.
Important Information: Light Pollution
and considerate Lighting
Please be aware of the annoyance over-lighting an area can cause
to your immediate neighbours. Light pollution caused by incorrectly
installing a unit or over-lighting an area can be limited by carefully
considering the location and position of your unit before installation.
The light spread on all halogen floodlights can be reduced by
angling the floodlight downwards on the mounting bracket. This will
also concentrate the light on your property and limit the potential
inconvenience of the light shining into your neighbours windows etc.
Please see Selecting a Location for information on choosing the
optimum location for any security light controlled by this unit.
