Page 2

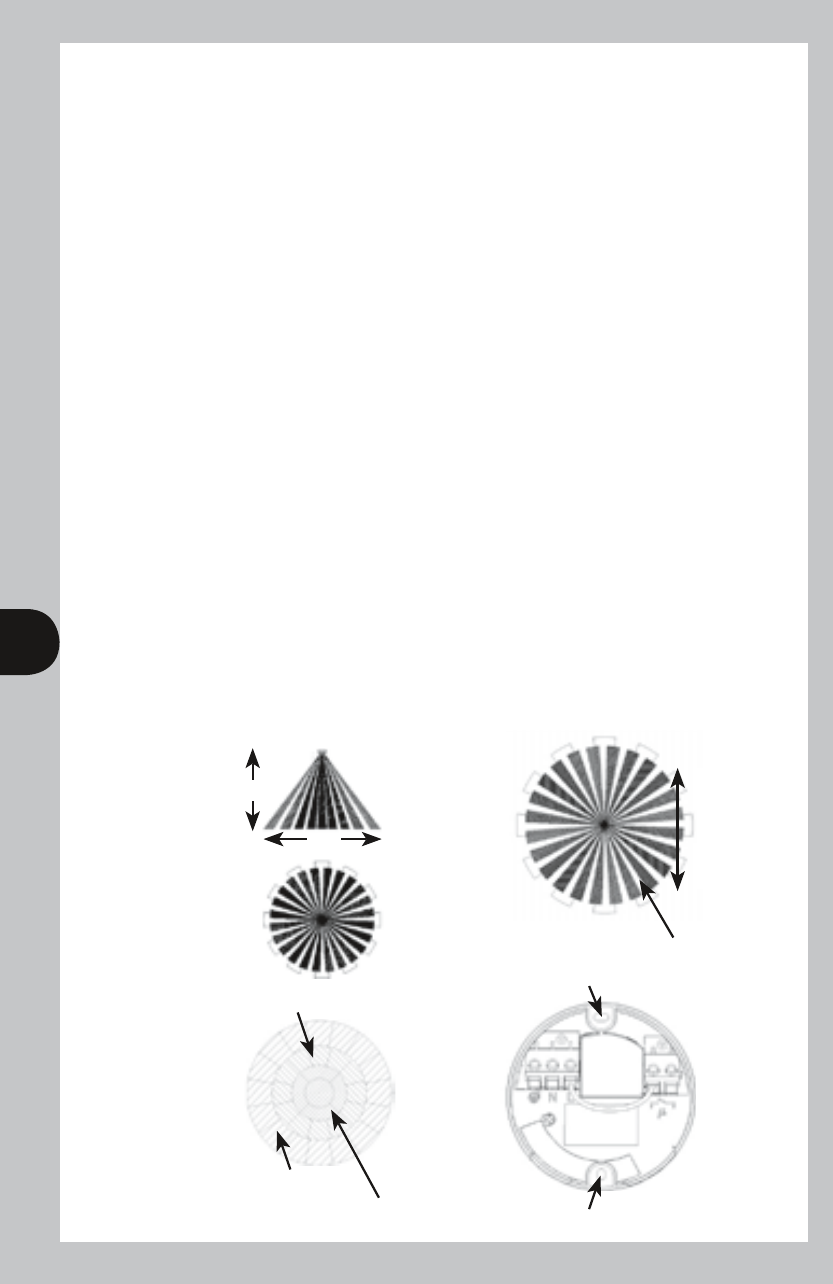

Lens Mask

Less sensitive

More

sensitive

Restrict short detection

360º

Mounting hole

Side View

Restrict long detection

Restrict detection directly under sensor

Twist cover anti-clock wise

Align marks on moulding

Remove decorative cover

Cable

gasket

Mounting

screws

Top cover

Ceiling mount assembly method.

L1
L2

L
N
E

Switched

Load

OUT

Switched

Load

OUT

Factory fitted

bridge wire

Factory fitted

bridge wire REMOVED

Time On

setting

Lux -Dusk/

Dawn

setting

Mains Supply IN

Sponge gasket.

Fit if mounting

the unit outdoors.

Discard if fitting

indoors

Mounting

Plate

Sensor

2.5m

Wall plugs x 2.

Introduction

The SLW360L utilises passive infrared technology to detect heat
radiation of moving human bodies. Upon detection, the attached
lighting load will illuminate for a user-determined time period.
An integral daylight sensor ensures all day or night-only operation.

Important Information: Light Pollution

and considerate Lighting

Please be aware of the annoyance over-lighting an area can cause
to your immediate neighbours. Light pollution caused by incorrectly
installing a unit or over-lighting an area can be limited by carefully
considering the location and position of your unit before installation.
The light spread on all halogen floodlights can be reduced by
angling the floodlight downwards on the mounting bracket. This will
also concentrate the light on your property and limit the potential
inconvenience of the light shining into your neighbours windows etc.
Please see Selecting a Location for information on choosing the
optimum location for any security light controlled by this unit.
