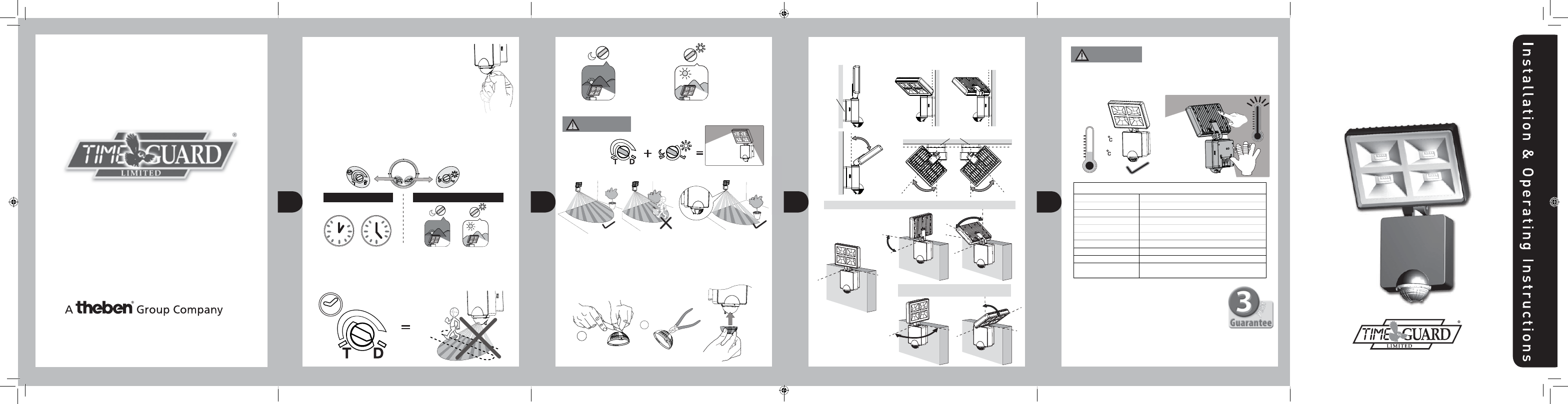

Timeguard LED400PIRB User Manual
32w led pir floodlight, Helpline, Warning

LED400PIRB.1 Instructs_147x105 7-11
31-05-12 2.58pm
7
8
9
10
A
B
24 Hrs
Lamp turns
On at night.
Lamp turns On
at day & night.
The purpose of the lens mask is to mask out areas not desired for detection.
Lens mask fi tting procedure:
• Use a penknife or pliers to cut out lens mask segment, exposing area
for detection.
• Attach the lens mask to the detector head.
• Push the lens mask for it to be locked into place.
Lens masking
Setting Advise
WARNING
3 Year Guarantee
In the unlikely event of this product becoming faulty due
to defective material or manufacture within 3 years of the
date of purchase, please return it to your supplier in the
first year with proof of purchase and it will be replaced free
of charge. For years 2 and 3 or any difficulty in the first year telephone
the helpline on 020 8450 0515.
WARNING
The temperature of the lamp is very high during operation. You will get hurt
if you touch the heat sink.
High Temperature
TECHNICAL SPECIFICATIONS:
10
20
30
40
-20
+40
10
20
30
40
Lamp adjustment
The lamp can be tilted down 55 degree and pan outward 50 degree with
the spacer or 40 degrees without.
Side View
Top View
The lamp can be tilted down 55 degree pan outward 90 degree to left
55°
50°
Spacer
50°
Spacer
90°
55°
55°
90°
The lamp can be tilted down 55 degree
and pan outward 90 degree to right.
LED lamp, PF < 0.6
LED lamp, PF > 0.9
Halogen lamp load
50W Max
200W Max
1000W Max
200W Max
Supply 220 - 240V 32W
Output 2000 Lumens
Weatherproof IP55
External Up to 5 LED 400 uncontrolled lamps
Other loads
Fluorescent tube w/o
PF correction
CFL 120W Max
32W LED PIR
FLOODLIGHT
Model: LED400PIRW - White
Model: LED400PIRB - Black
Knob Settings
LED400PIR has two adjustment knobs:
Time and Lux at the bottom of the detector head.
• Adjust knobs carefully with hand.
TIME knob setting
• Adjust the knob as desired.
LUX knob setting
• When setting the Lux knob at “MOON”, LED400PIR will only operate in
the dark.
• When setting the Lux knob at “SUN”, LED400PIR will operate in any light level.
Dusk Setting (Time knob setting)
• When setting the Time knob to “D”, the motion detector of LED400PIR won’t
function.
The lamp will operate depending on the “LUX” level, ie Dusk to Dawn..
Adjustments
Turn On time adjustment
Environment Lux level to turn On
10min
5sec
0
Min
10
0 5
sec
67.058.486
Timeguard Limited.
Victory Park, 400 Edgware Road,
London NW2 6ND
Sales Offi ce: 020 8452 1112
or email csc @ timeguard.com
For a product brochure please contact:
or email helpline @ timeguard.com
HELPLINE
020 8450 0515
• You can set the time knob from 5 sec to about 10 min, LED400PIR will turn
On the lamp, for the time duration set after each detected movement.
