SVL-A, SVL-B, SVL-C, & SVL-D Self-Contained Material Loaders - Venturi Style 22 of 49
3-3 Control Assembly
A. The unit is switched ON and OFF at the control.
B. At the regulator, the operating pressure is adjusted. A
filter/separator is integrated into the control.
C. Regularly inspect the compressed air filter to make sure that it is
clean and functioning properly. Clean or replace this filter as
needed. For information, see Section 5: Maintenance.

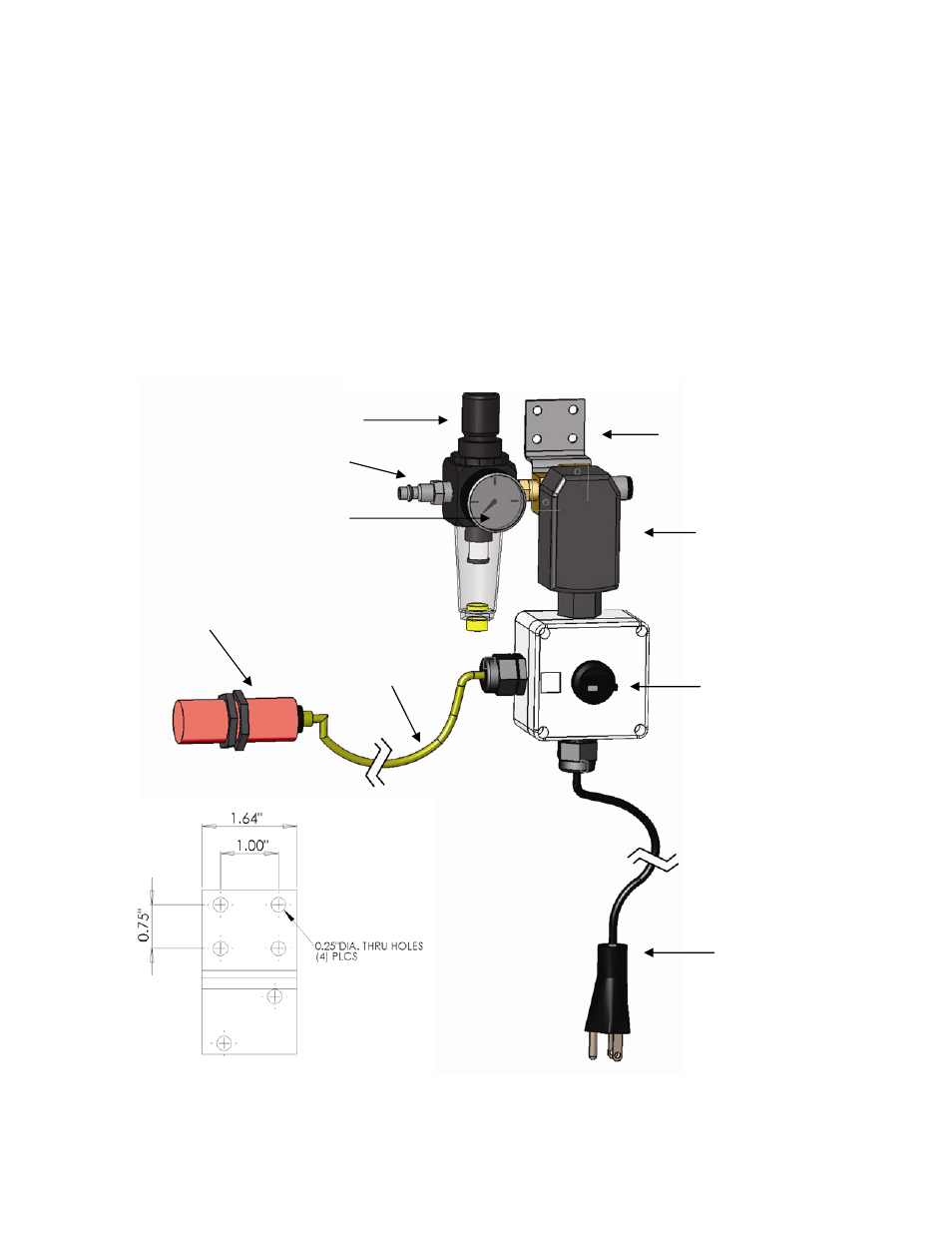

Figure 3.2: Control and Regulator Unit
Control mounting bracket
Solenoid Valve
On/Off switch
16.4 ft (5 meters)
sensor cable
Supply pressure gauge
Filter Regulator
pressure adjustment
Plant Air Connection
Capacitive material
demand sensor with quick
connect wiring
Main power cord
Control Mounting
Bracket
