SVL-A, SVL-B, SVL-C, & SVL-D Self-Contained Material Loaders - Venturi Style 14 of 49

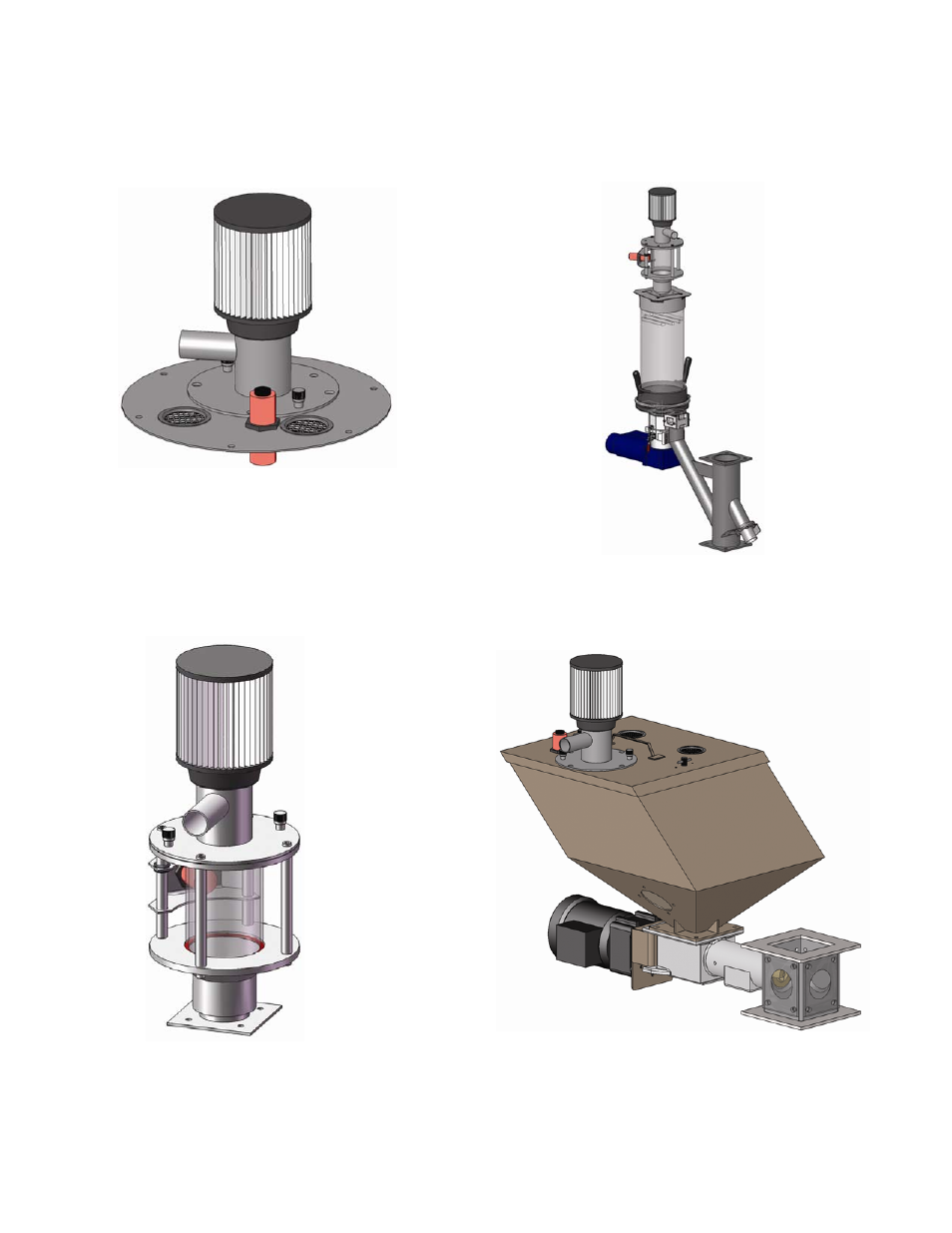

Figure 2.5: Flange Mount Figure 2.7: Sight Glass Mount
to Digital Dosing Feeder
Figure 2.6: Sight Glass Mount
Figure 2.8: Standard Mount for
SF-1 Feeder
Note: Optional cover adapters may be required.
