Dokument
UMA 145 Rev
3 Page
8 (8)
~
+

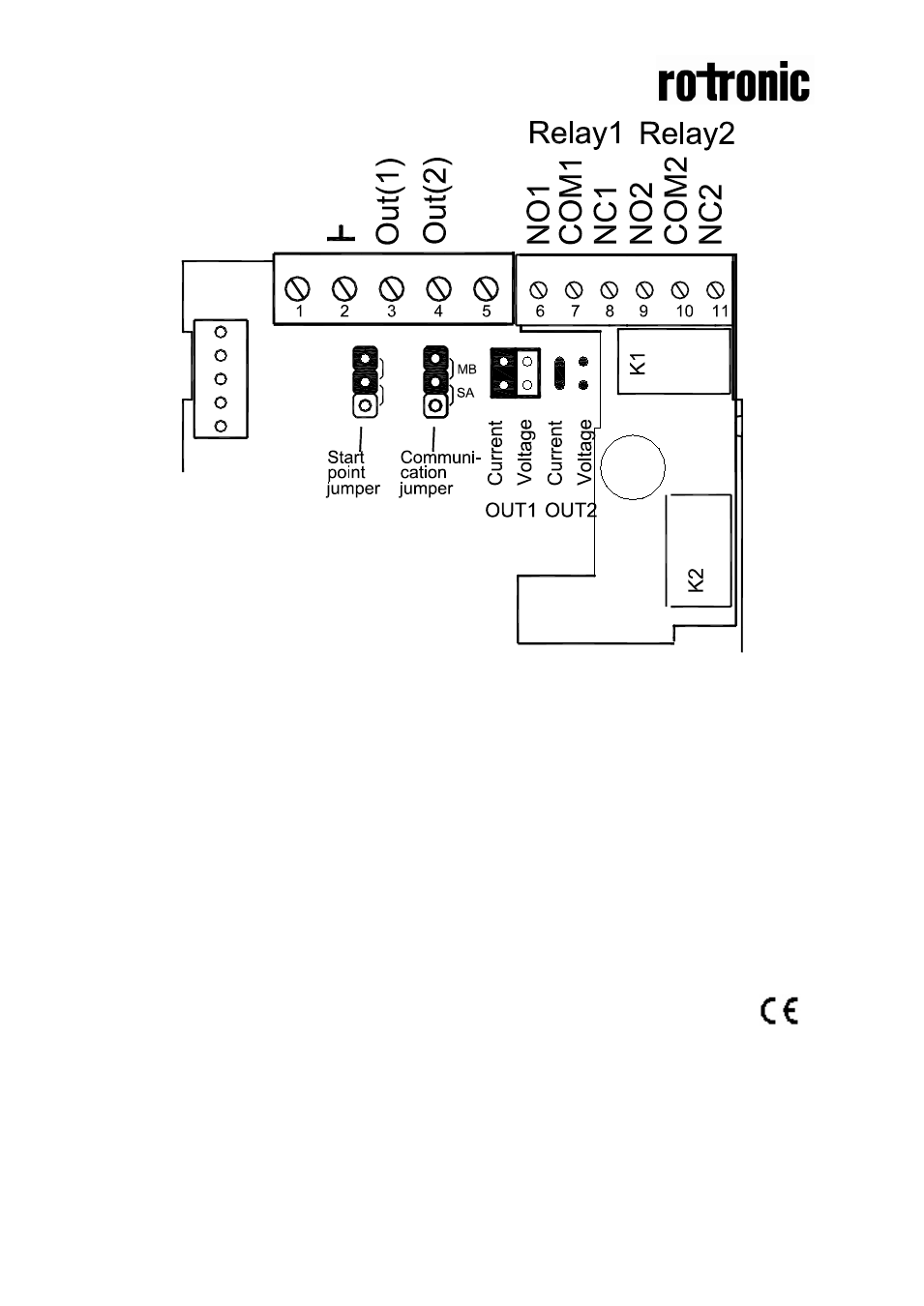

Figure 5 The CF8-W-Disp-AL printed circuit board with the terminal area enlarged at right.
The darker positions are default settings. Communication protocol is set with communication jumper
Upper position Modbus communication protocol
This product is in accordance with the EMC 2004/108/EC, 92/31/EEG including
amendments by the CE-marking Directive 93/68/EEC
The product fulfils the following demands:
EN 61000-4-2 level 2, EN 61000-4-3 level 2,
EN 61000-4-4 level 4, EN 61000-4-6, EN 61000-4-8 level 4, EN 55022 class B
