Mounting Adapter Kit – 5x5E_BG6/700E_BG4
2 / 2 TI 275219030 - 1114

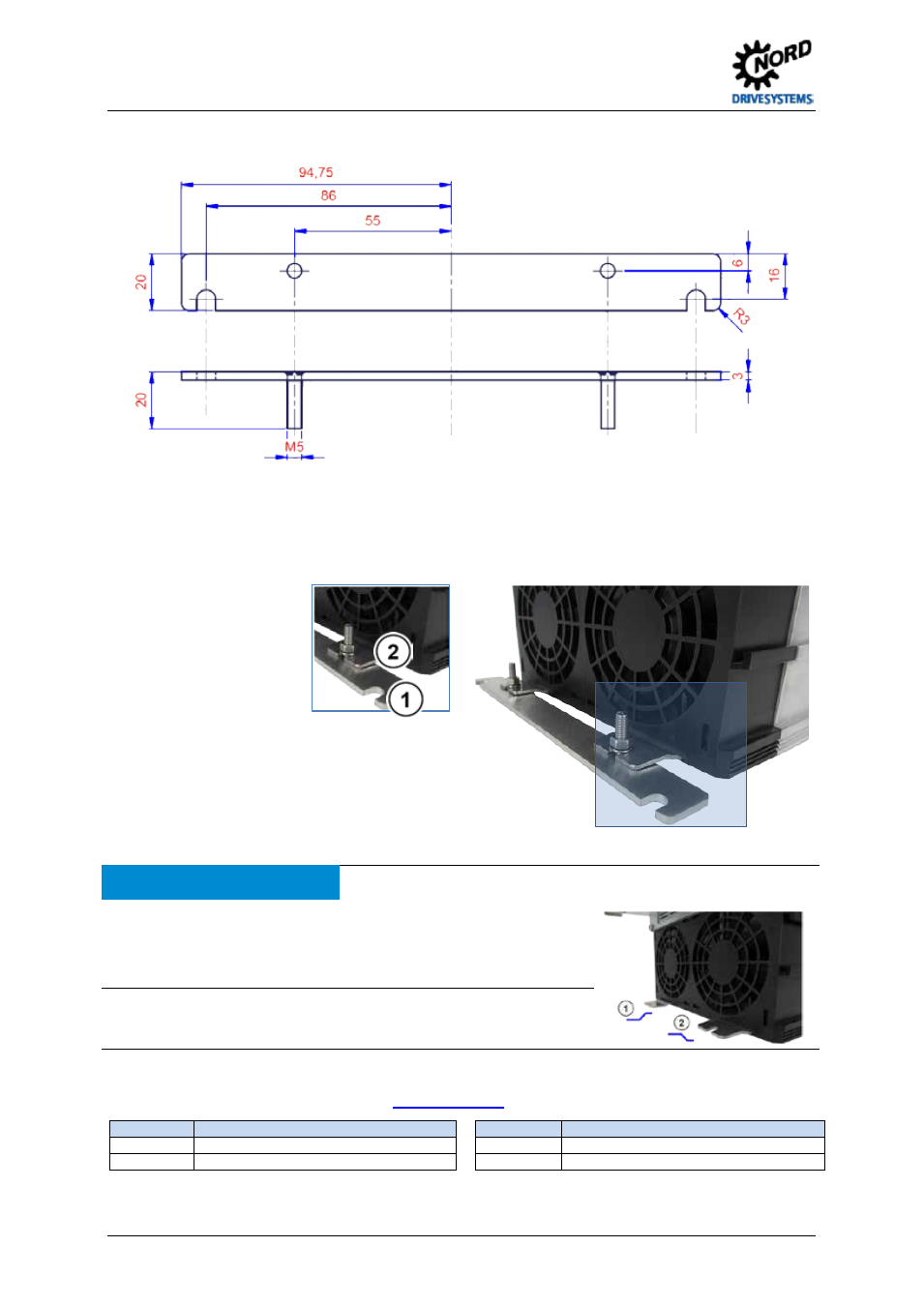

Dimensions
Pos : 2 /T ec hnis che Inf or mationen/ Zubehör/Mont ageadapt er SK500E_700E/Mont age [Adapter - SK 5xxE] @ 4\ mod_1394016886990_388.doc x @ 120821 @ 5 @ 1
Assembly
On the top and bottom
of the frequency
inverter, mount one
adapter plate ( 1 ) each
to the wall mount
brackets ( 2 ).
Use supplied nuts and spring washers to do so.
The fastening material (dowels, screws) for
mounting in the intended location is not part of
the supply.
NOTICE Damage to the unit
To avoid damaging the frequency inverter, turn the wall mount brackets by
180° (item 2) before mounting them to the frequency inverter.
This is the only way to ensure a large area of the unit is securely fastened to
the mounting surface with the Mounting Adapter Kit.
( 1 ) – Standard position of wall mount bracket
( 2 ) – Position of wall mount bracket when used with the Mounting Adapter Kit
Pos : 3 /T ec hnis che Inf or mationen/ Zubehör/Mont ageadapt er SK500E_700E/ Weit erf ühr ende D okument ati onen und Sof t war e [Mont ageadapter SK 5xxE - SK700E] @ 4\ mod_1394023653131_388.doc x @ 120846 @ 5 @ 1
Further Documentation and Software ( www.nord.com )
Document Name Document Meaning
BU 0500 SK 500E - SK 535E frequency inverter manual BU 0700 SK 700E frequency inverter manual
BU 0505 SK 54xE frequency inverter manual
