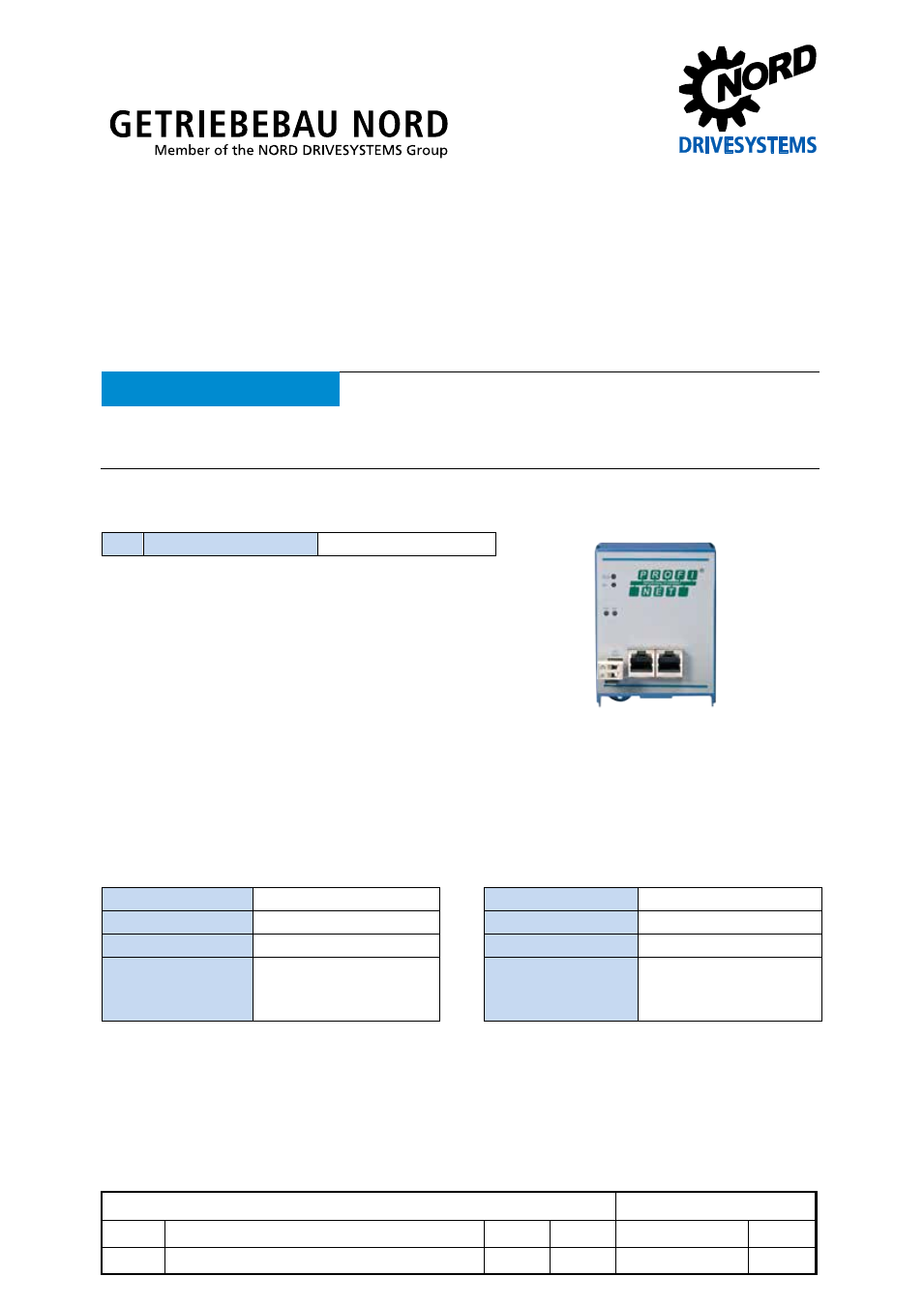

Technical Information / Datasheet
PROFINET IO Bus module
SK TU3-PNT
1.0
Erstausgabe / first issue
4913
Rck
TI 275900190
GB
version
reason for change(s)
issue
name
document
speech
Pos : 1 /T ec hnis che Inf or mationen/ SK xU x - Bus - Er wei ter ung en/ PR OFIN ET I O/ SK TU3- PNT / 275900190 / Basisinf or mationen [SK TU 3-PNT ] @ 4\ mod_1385370630863_388.doc x @ 106376 @ 555 @ 1
SK TU3
-
PNT
Part number: 275 900 190
PROFINET IO
®
- External Bus – Interface
NOTICE
Validity of this document
This document is only valid in combination with the operating instructions for the relevant frequency inverter. All
of the information that is relevant for a safe start-up of this module and the frequency inverter is only available
under these conditions.
Scope of delivery
1 x
Module
SK TU3-PNT
Field of use
Technology unit for connecting a frequency inverter (SK 5xxE) to a PROFINET IO field bus. The
module must be directly plugged into the technology slot of the frequency inverter.
Technical data
Module
Temperature range
0 °C … 40 °C
Vibration resistance
2M1
Temperature class
Class 3K3
Firmware version
V1.2 R0
Protection class
IP20
Hardware version
AA
Supply voltage
24 V ± 20
%, ≈ 100 mA
Reverse polarity
protected
Dimensions [mm]
H x W x D: 27 x 73 x 101
