NORD Drivesystems TI 275900140 - Manual

Technical Information / Datasheet
POWERLINK Bus module SK TU3-POL
1.1 LED - displays, Error 10.9 4913 Rck TI 2752900140 GB
version reason for change(s) issue name document speech
Pos : 1 /T ec hnis che Inf or mationen/ SK xU x - Bus - Er wei ter ung en/ Powerlink/SK TU 3-PO L / 275900140 / Basisinf or mationen [SK TU 3-POL] @ 3\ mod_1377869061780_388.doc x @ 92107 @ 555 @ 1

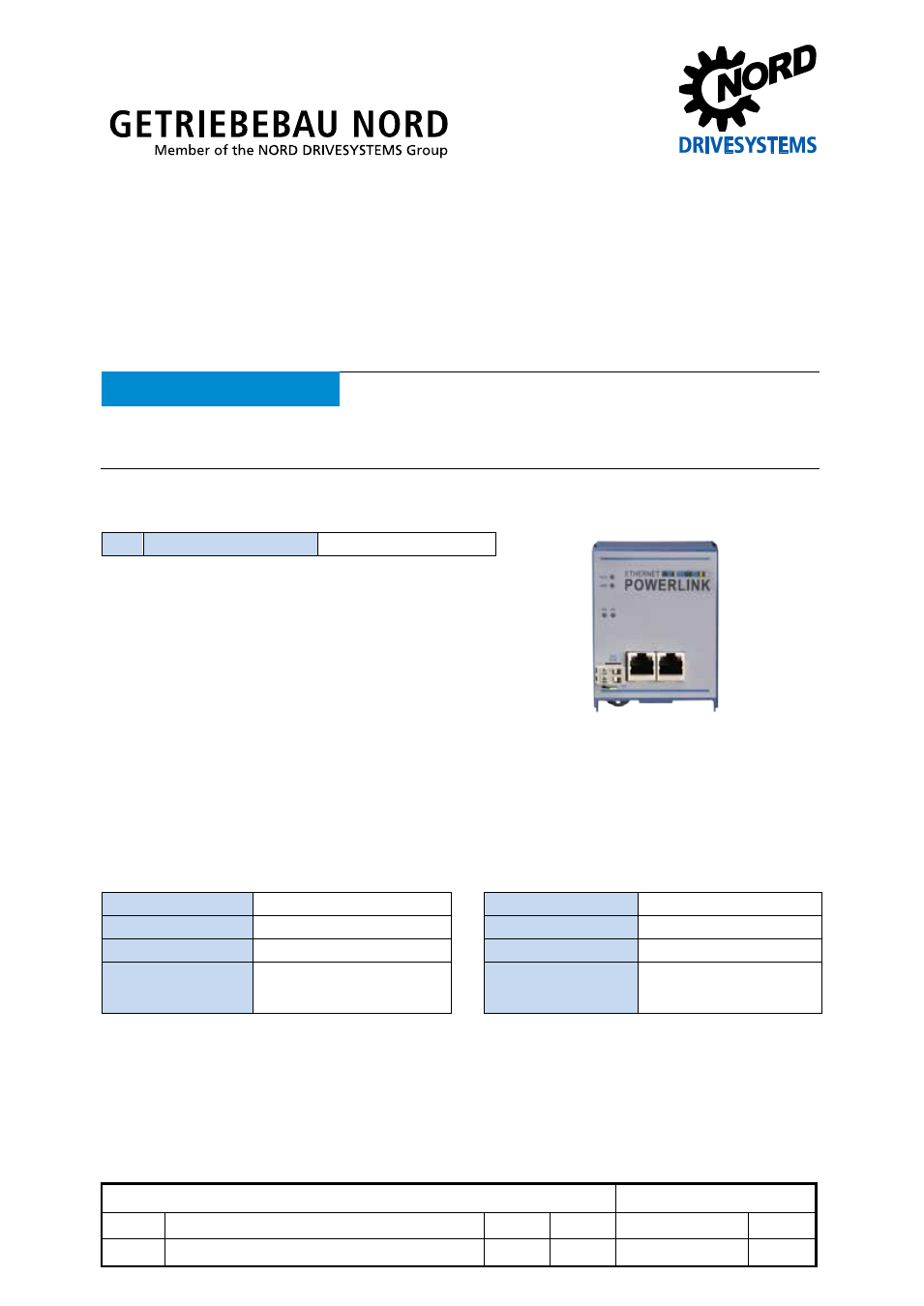

SK TU3 - POL Part number: 275 900 140
POWERLINK - External bus interface
ATTENTION Validity of the documents
This document is only valid in combination with the operating instructions for the relevant frequency inverter.
All of the information that is relevant for a safe start-up of this module and the frequency inverter is only available
under these conditions.
Scope of delivery
1 x Module SK TU3-POL
Field of use
Technology box for connecting a frequency inverter (SK 5xxE) to a POWERLINK field bus. The
module must be attached directly to the technology slot of the frequency inverter.
Technical data
Module
Temperature range 0 °C … 40 °C Vibration resistance 2M1
Temperature class Class 3k3 Firmware version V1.2 R0
Protection class IP20 Hardware version AA
Supply voltage 24 V ± 20
%, ≈ 100 mA
Reverse polarity protected
Dimensions [mm] H x W x D: 27 x 73 x 101
