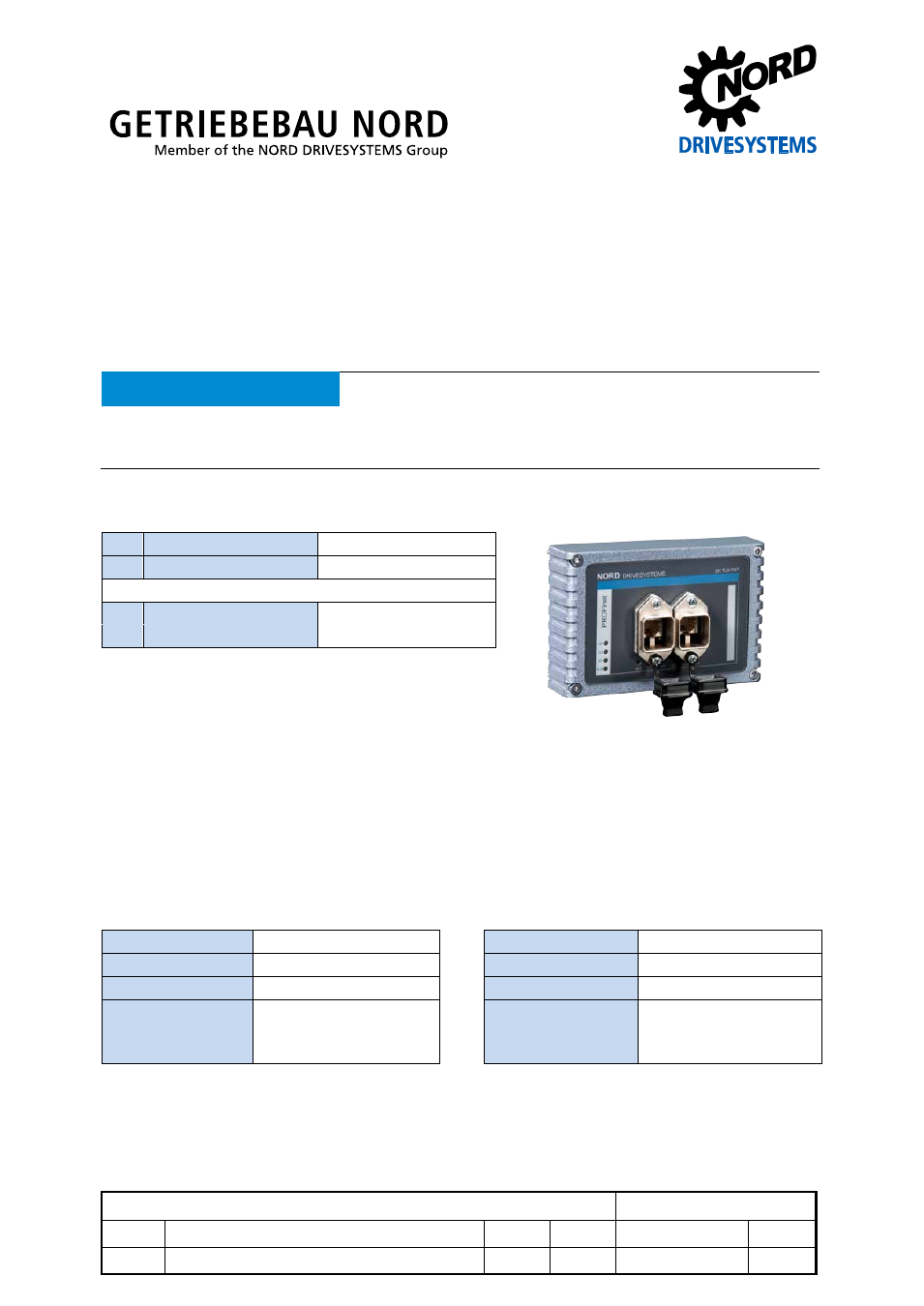

Technical Information / Datasheet
PROFINET IO Bus module
SK TU4-PNT
1.0
Erstausgabe / first issue
4913
Rck
TI 275281115
GB
version
reason for change(s)
issue
name
document
speech
Pos : 3 /T ec hnis che Inf or mationen/ SK xU x - Bus - Er wei ter ung en/ PR OFIN ET I O/ SK TU4- PNT / 275281115 / Basisinf or mationen [SK TU 4-PNT ] @ 4\ mod_1385371089311_388.doc x @ 106401 @ 555 @ 1
SK TU4
-
PNT
Part number: 275 281 115
PROFINET IO
®
- External Bus – Interface
NOTICE
Validity of this document
This document is only valid in combination with the operating instructions for the relevant frequency inverter. All
of the information that is relevant for a safe start-up of this module and the frequency inverter is only available
under these conditions.
Scope of delivery
1 x
Module
SK TU4-PNT
4 x
Hexagon socket
M4 x 40 mm
Accessories required:
1 x
Bus connection unit
SK TI4-TU-BUS
TI 275280000 (Part No. 275 280 000)
Field of use
External technology unit for connection of a decentralised frequency inverter (SK 180E … SK 2xxE) to
a PROFINET IO field bus. The module can be mounted on, or in the immediate vicinity of the
frequency inverter. It is connected to the inverter via the system bus, and can communicate directly
with up to 4 frequency inverters. 8 digital inputs and 2 digital outputs are available.
Technical data
Module
Temperature range
-25 °C … 50 °C
Vibration resistance
3M7
Temperature class
Class 3K3
Firmware version
V1.2 R0
Protection class
IP55
Hardware version
AA
Supply voltage
24 V ± 20
%, ≈ 100 mA
Reverse polarity
protected
Dimensions [mm]*
H x W x D: 95 x 136 x 109
* module fitted to BUS
-
connection unit
Depth: 154 mm with cover caps on the RJ45
-
connection
