Chapter 5 87
Top View

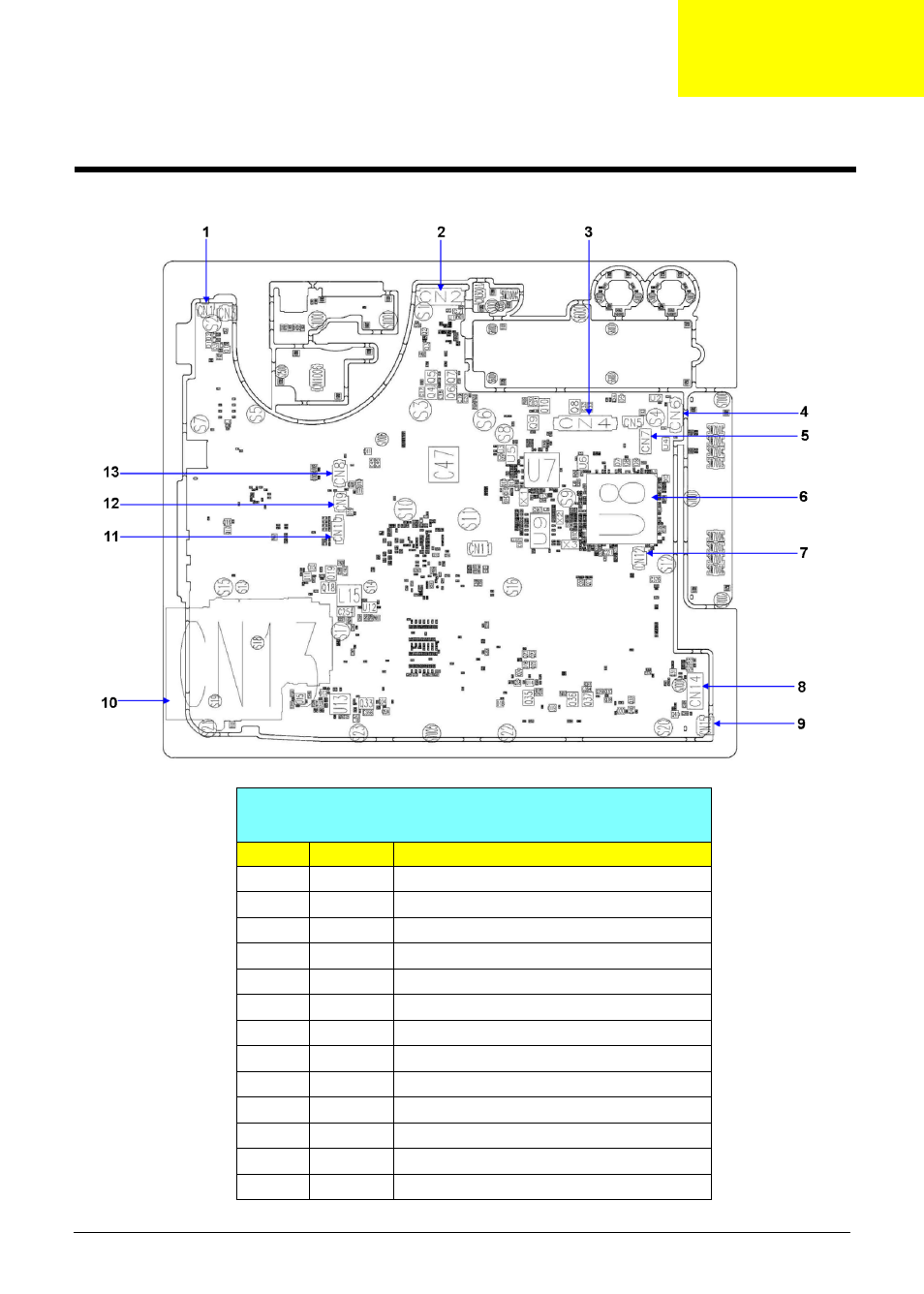

Aspire6935 M/B layout and connector location
TOP view
No. Name Description
1 CN1 LED/B Cable CNTR
2 CN2 LCM Cable CNTR
3 CN3 Key board FFC CNTR
4 CN4 USB board CNTR
5 CN7 Hot Key Board CNTR
6 U8 South Bridge
7 CN12 Touch Pad FFC CNTR
8 CN14 I/O Board CNTR
9 CN15 BT Cable CNTR
10 CN13 Express card CNTR
11 CN10 Speaker Cable CNTR
12 CN9 Media consle Board CNTR
13 CN8 Power Board FFC CNTR
Jumper and Connector Locations
Chapter 5
