6
Chapter 1

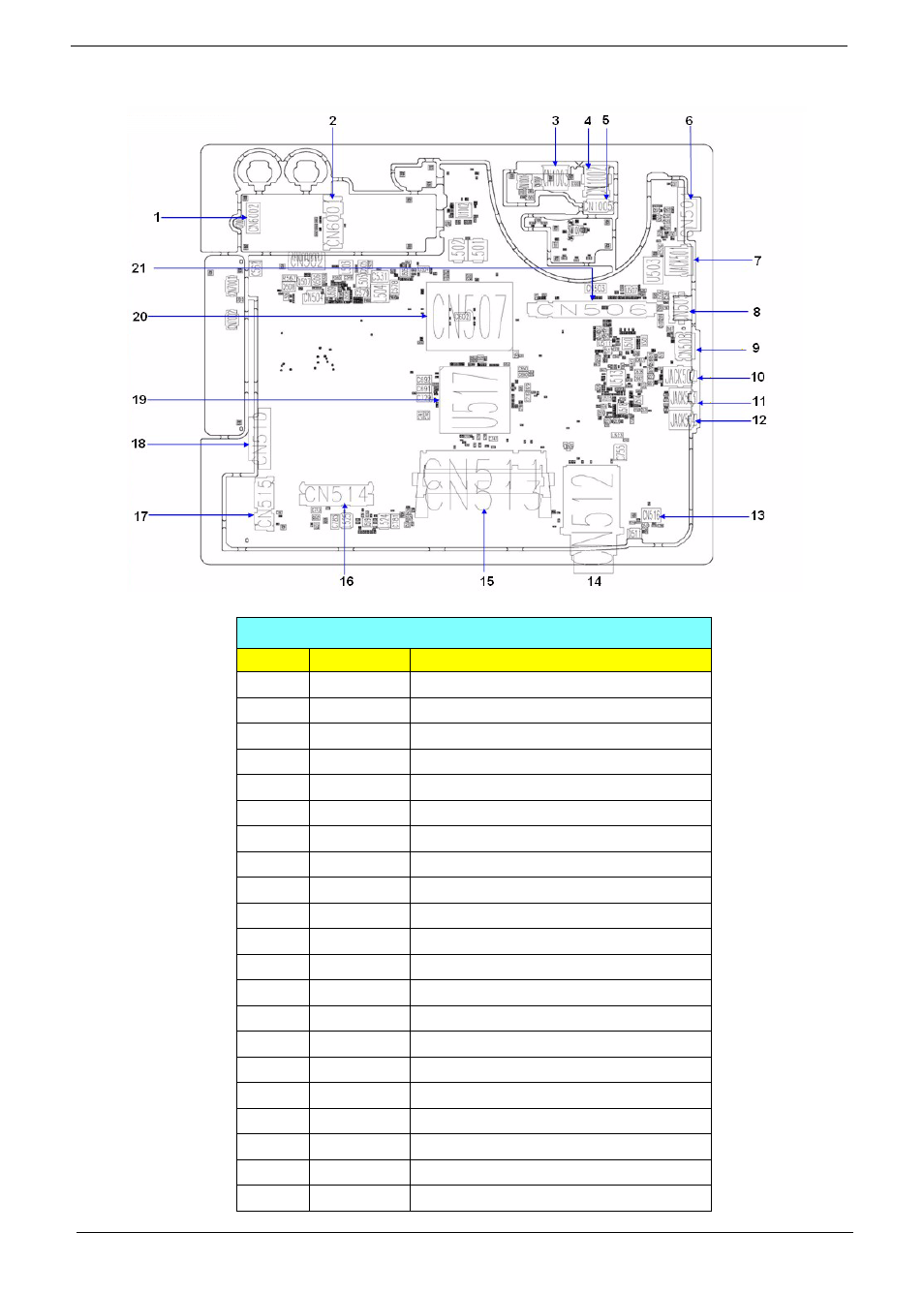

Bottom view
Bottom view
No.
Name
Description
1
CN6002
W/LAN card board CNTR
2
CN6001
TV/Robson card CNTR
3
CN1003
USB Port
4
CN1002
USB Port
5
CN1005
USB Board CNTR
6
CN501
VGA Port
7
Jack501
RJ45
8
CN505
USB Port
9
CN508
HDMI Port
10
Jack502
SPDIF
11
Jack503
MIC jack
12
Jack504
Line in jack
13
CN516
MDC Card CNTR
14
CN512
New card Socket
15
CN511/513
DIMM Socket
16
CN514
HDD CNTR
17
CN515
PCI-E Socket
18
CN510
ODD CNTR
19
U517
North Bridge
20
CN507
CPU Socket
21
CN506
VGA Card Socket
