Page 13
Chapter 1
5
Board Layort
Top View

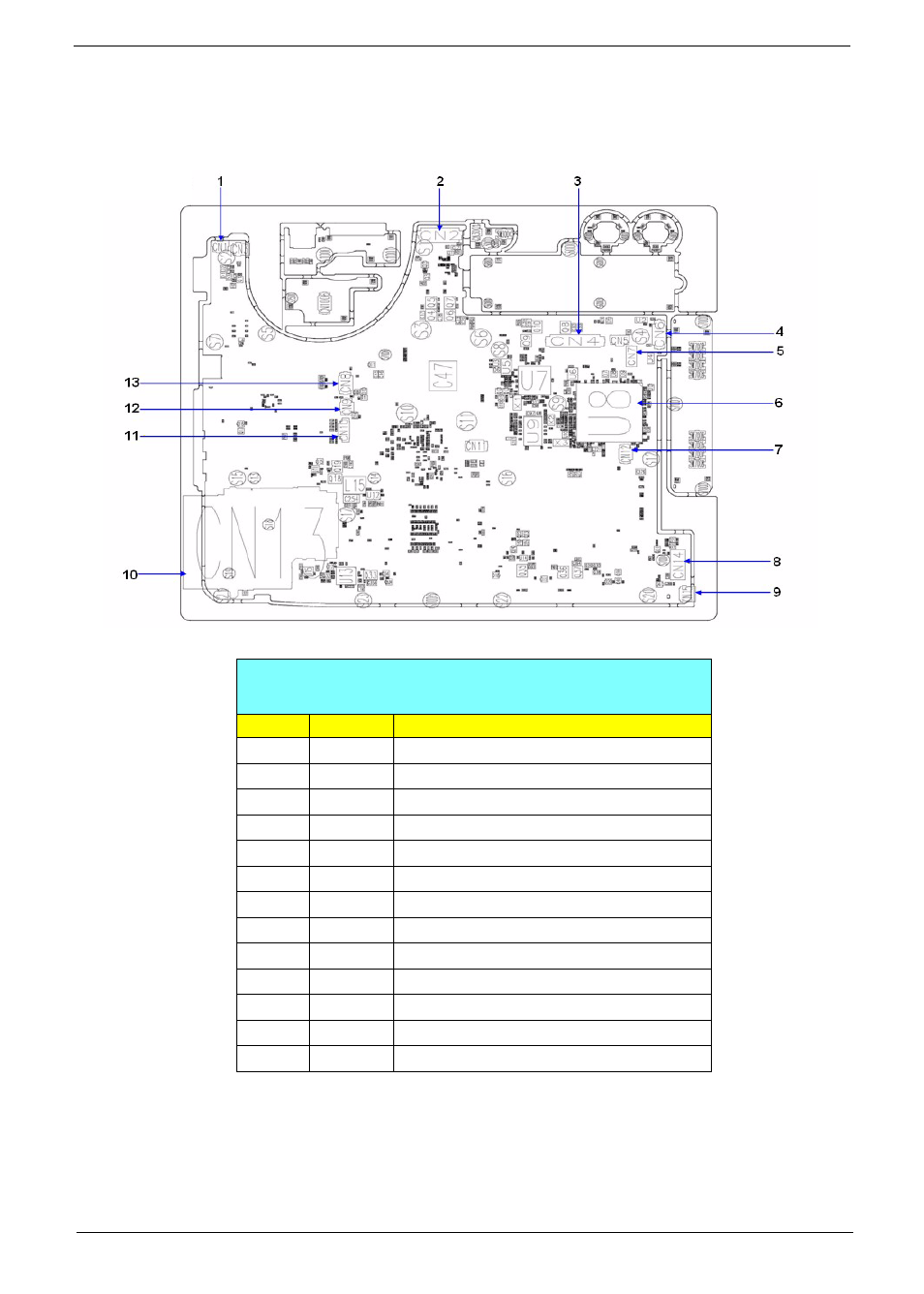

Aspire6935 M/B layout and connector location
TOP view
No.
Name
Description
1
CN1
LED/B Cable CNTR
2
CN2
LCM Cable CNTR
3
CN3
Key board FFC CNTR
4
CN4
USB board CNTR
5
CN7
Hot Key Board CNTR
6
U8
South Bridge
7
CN12
Touch Pad FFC CNTR
8
CN14
I/O Board CNTR
9
CN15
BT Cable CNTR
10
CN13
Express card CNTR
11
CN10
Speaker Cable CNTR
12
CN9
Media consle Board CNTR
13
CN8
Power Board FFC CNTR
