Metpar Polly Solid Plastic(HDPE) User Manual
Page 8

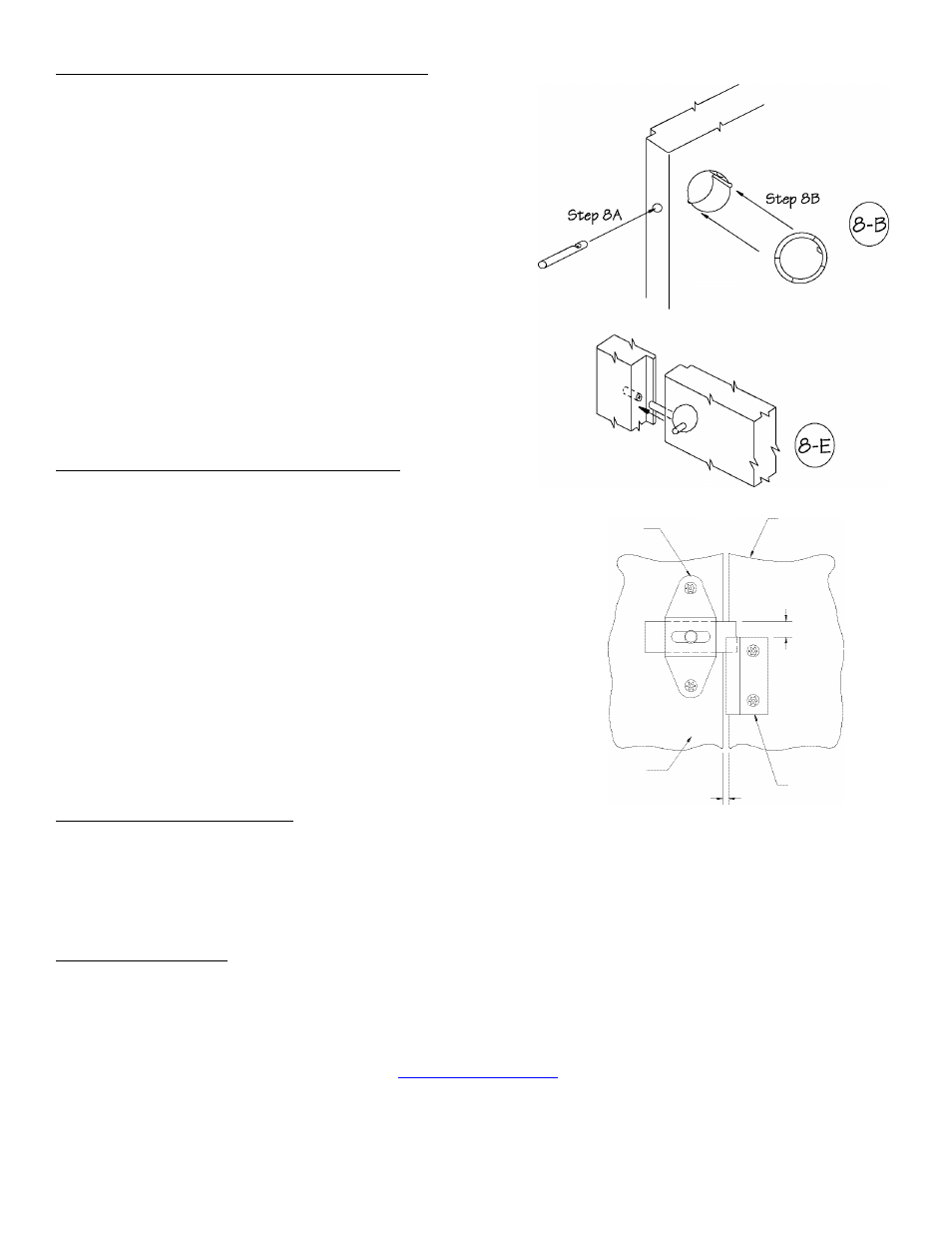

STEP 8A
STEP 8A –– Concealed Ro
Concealed Round Latch Installation
und Latch Installation
A. Put slide bar through small hole in side of door with notch
facing up.
B. Choose which indicator ring will be used; Green on tab for
OUTSWING doors, Red on tab for INSWING doors. Install the
indicator ring by lining up the tabs with the notches in the door
hole.
C. Place the "OUTSIDE HALF" of the latch (with the slot) into the
hole, and through the slide bolt.
D. Install the "INSIDE PART" of the latch (with the knob) mate
with the "OUTSIDE HALF", then squeeze together.
E. Mark a spot on the side of the pilaster by closing the door and
shifting the slide bar of the latch over. Where the slide bar
hits the pilaster, drill a ½" diameter hole ½" deep. See detail
8E.
STEP 8B
STEP 8B –– Surface Slide Latch Installation
Surface Slide Latch Installation
A. Locate the surface mounted slide latch at the desired
elevation and fasten onto the inside of the door with sheet
metal screws.
B. Position the wrap-around style strike & keeper so that the bar
of the slide latch will engage properly. Mount in place with
thru-bolts. For outswing doors, the bar will engage behind the
door strike. For inswing doors, the bar will engage into the
keeper.
C. For ADA accessibility, mount the strike & keeper so that half
of the slide bar is above the keeper. See detail at right. This
will allow you to lift the door and thereby lift the latch over the
keeper thus providing emergency access.
STEP 9
STEP 9 –– Care & Maintenance
Care & Maintenance
A. All surfaces can be kept clean with water and a mild soap solution. Wipe all surfaces dry after cleaning.
B. DO NOT use any caustic or acidic type cleansers.
C. In high humidity areas, the rooms should be properly ventilated.
D. The nylon door cams can be lubricated if necessary with a white lithium or equal water-proof lubricant.
STEP 10
STEP 10 –– Need Help?
Need Help?
A. In the unlikely event that you need further help, you have several resources. First, contact the Metpar
representative from which you purchased the materials. They are best equipped to assist you.
B. Another quick and easy source of information is the Metpar internet web site. Here you'll find a wealth of
information, details, specifications, technical support and so much more! Our URL address is
http://www.Metpar.com or send e-mail to
C. You can also contact us by phone at 516-333-2600, fax at 516-333-2618 or mail at 95 State Street,
Westbury, NY, 11590.
Metpar’s Polly
®
Installation Manual ~ February 2003
Slide Latch
Pilaster
Door
Wraparound
Strike & keeper
See 8B-c
